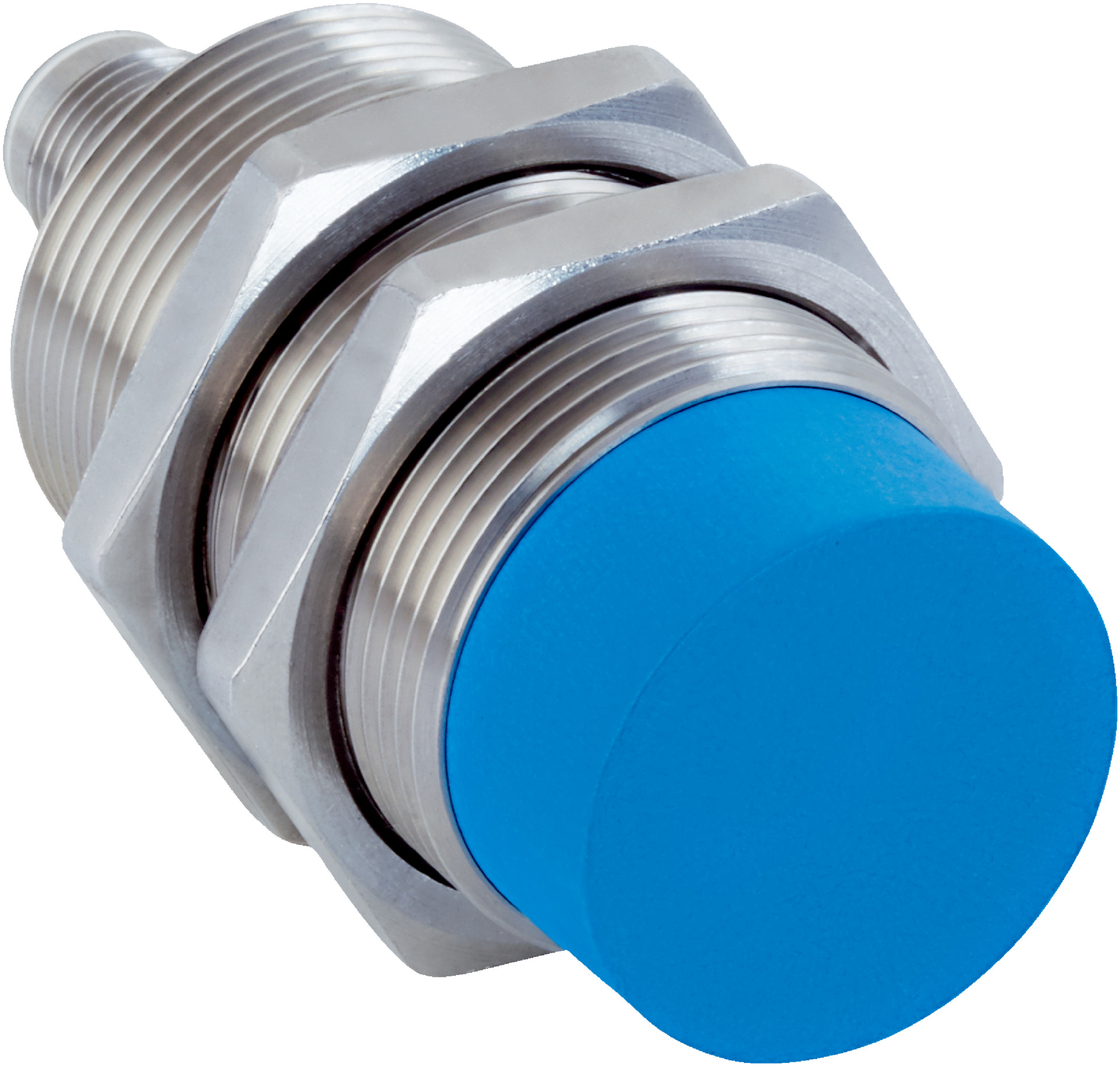

Inductive Proximity Sensor M30 | IP68 & IP69K Rated | 20mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring an IP68 and IP69K enclosure rating for high protection against dust and water. With a sensing range of 20 mm and a switching frequency of 500 Hz, it's perfect for mobile machines and hygienic zones. Built with durable stainless steel housing, this sensor ensures longevity and reliability in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Enclosure rating: IP68, IP69K
- Operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic (LCP)
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- EMC compliance: Meets Motor Insurance Directive ECE-R10 Rev. 5 and DIN ISO 11452-2
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with PNP NO output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V4A (AISI 316L) with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments without frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

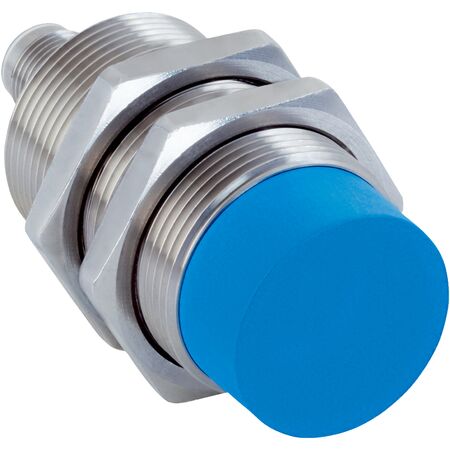

The SICK IMS30-20NPSNC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
