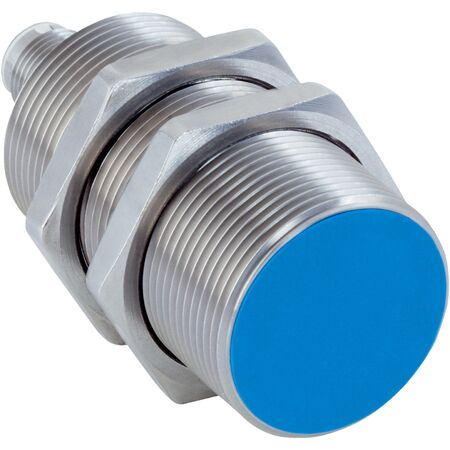

Inductive Proximity Sensor M30 | IP68 & IP69K Rated | NPN Normally Open | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring an IP68 and IP69K enclosure rating for high protection against dust and water. With a sensing range of 15 mm and a switching frequency of 300 Hz, this sensor is perfect for mobile machines and hygienic applications, ensuring reliable performance even in extreme conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Switching output: NPN normally open
- Switching frequency: 300 Hz
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP68 and IP69K
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Ambient operating temperature: -40 °C to +100 °C
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- EMC compliance with multiple international standards
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 300 Hz with NPN normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature extremes
- Shock and vibration resistant with high EMC immunity
- Stainless steel V4A housing and plastic sensing face
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic applications
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMS30-15BNSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic zone applications.
