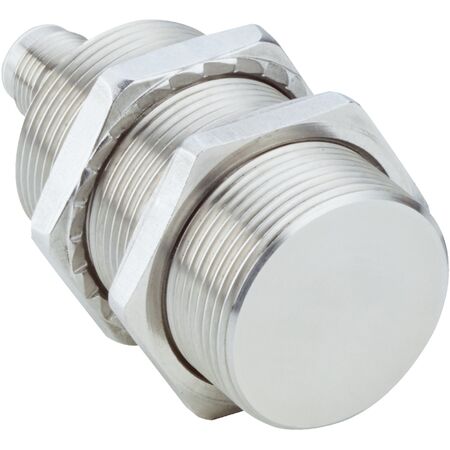

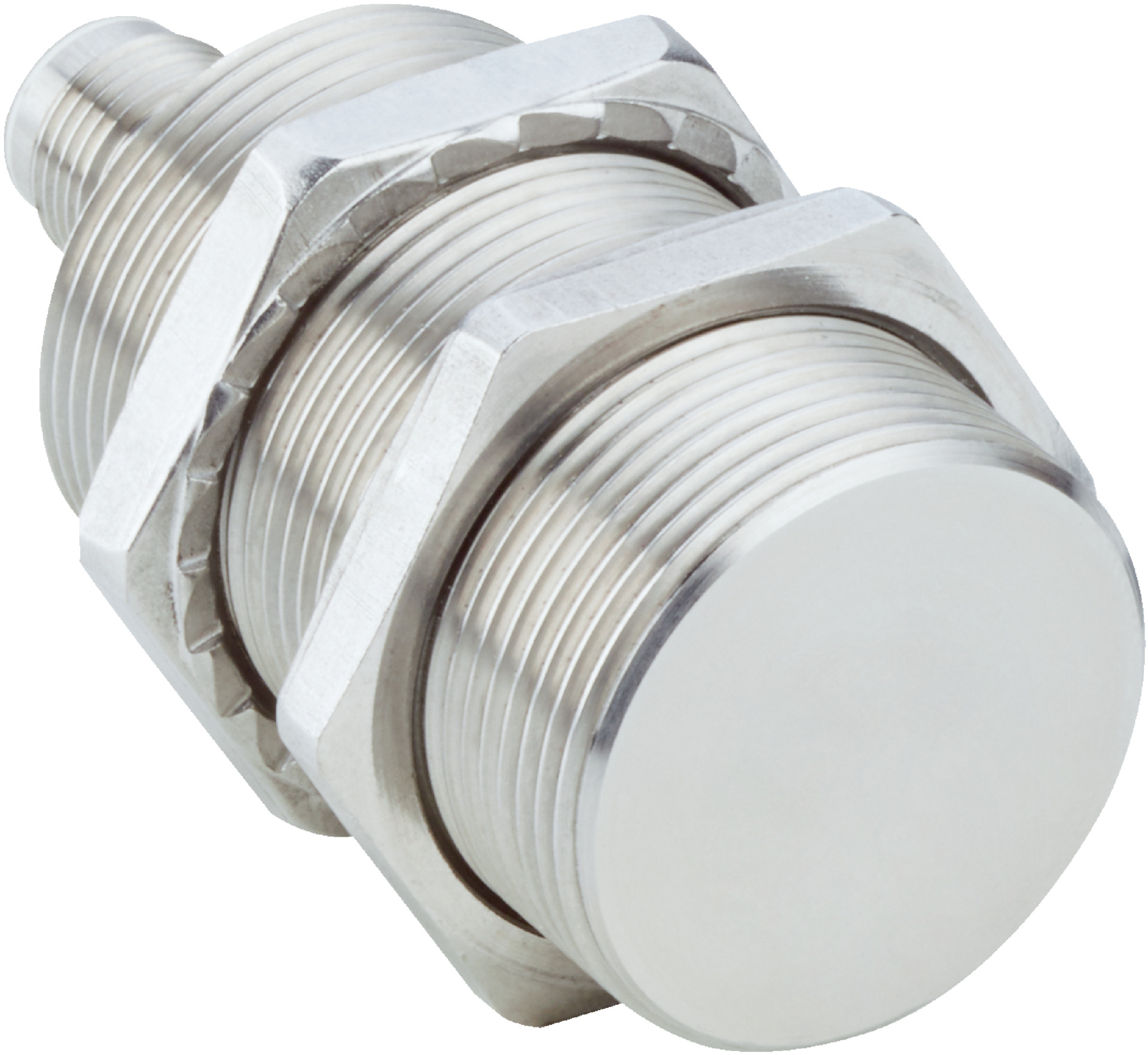

Inductive Proximity Sensor M30 | IP68 & IP69K Rated | Stainless Steel Housing | NPN Normally Closed | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a robust IP68 and IP69K rating for harsh environments. With a sensing range of 10 mm and a durable stainless steel housing, it’s perfect for applications involving coolants and lubricants, ensuring high performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 50 Hz
- Connection type: Male connector M12, 4-pin
- Output function: NPN normally closed
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Operating temperature range: -25 °C to +75 °C
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Shock resistance: 100 g / 5 ms / 1000 cycles
- Vibration resistance: 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz, 60 g
- Dimensions (H x L x W): 65mm x 65mm x 30mm
- Weight: 0.15 kg
Key Features
- Flush installation with metric M30 x 1.5 thread
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- NPN normally closed switching output with DC 3-wire electrical wiring
- High protection rating IP68 and IP69K for harsh environments
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Shock and vibration resistant with high mechanical durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Harsh environments requiring corrosion-resistant sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMI30-10BNOVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
