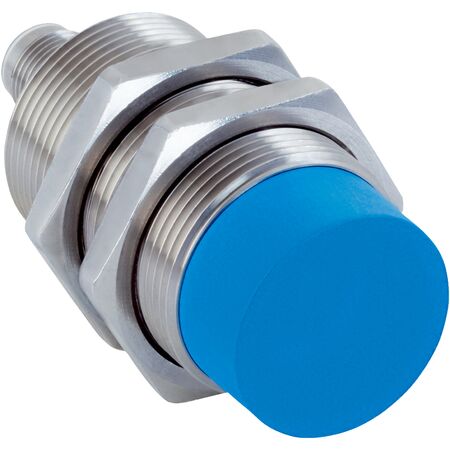

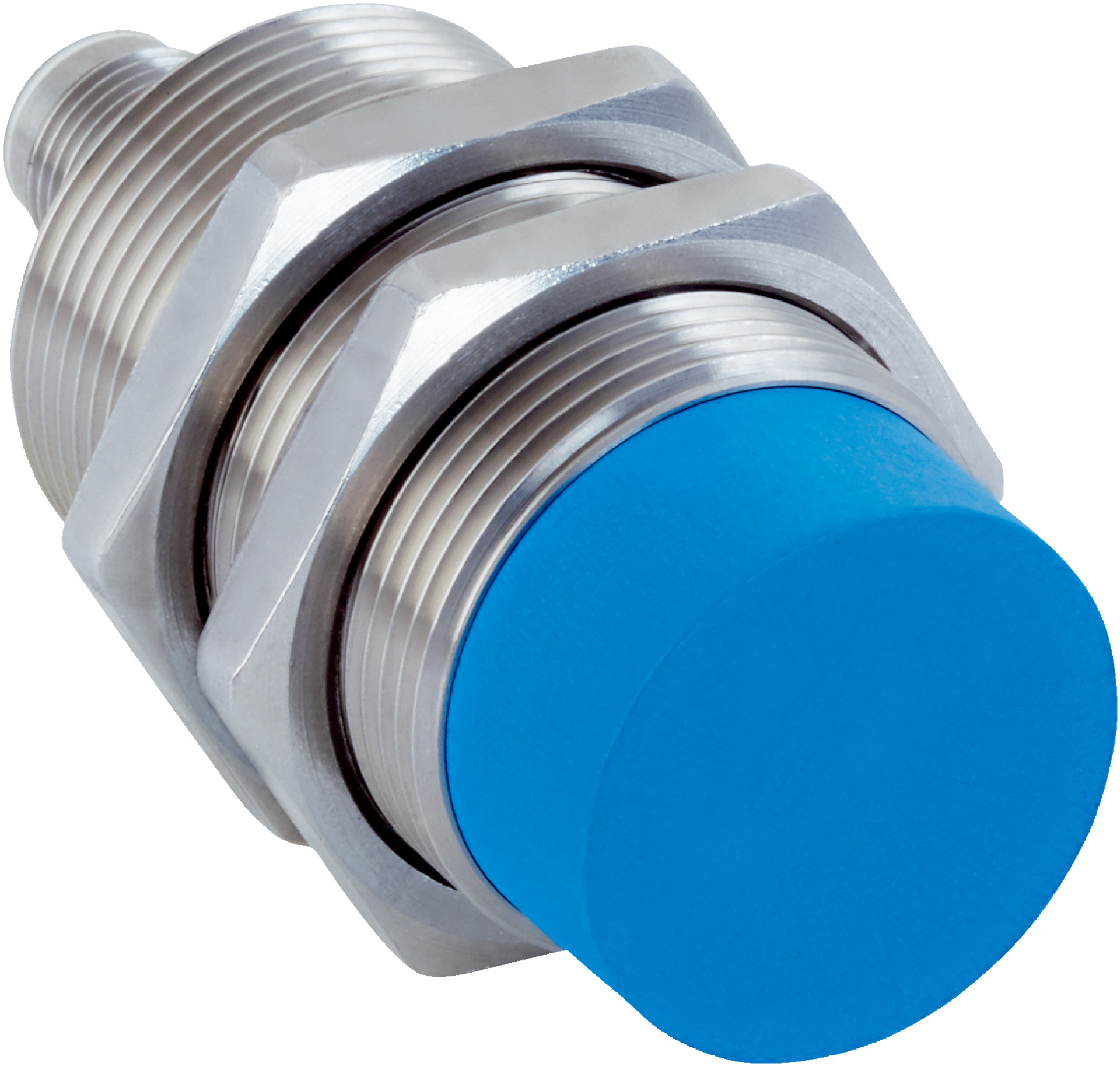

Inductive Proximity Sensor M30 | Non-Flush Design | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in harsh environments, featuring a non-flush installation type and a sensing range of 20 mm. With a high switching frequency of 500 Hz and an IP68/IP69K protection rating, it's perfect for mobile machines and areas exposed to coolants and lubricants, ensuring reliable performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68 and IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC compliance: Meets Motor Insurance Directive ECE-R10 Rev. 5 and DIN ISO 11452-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection: Yes
- Shock and vibration resistance: EN 60068-2-6, -27, -29, -64
- Ambient operating temperature: -40 °C to +100 °C
- Housing length: 70 mm
- Thread length: 40.15 mm
- Tightening torque max: 100 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- Switching frequency of 500 Hz with NPN normally closed output
- Connection via male M12 4-pin connector
- High protection rating IP68 and IP69K suitable for harsh environments
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant with compliance to EN 60068 standards
- Wide supply voltage range from 7.2 V DC to 60 V DC
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure safety and compliance.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- High resistance to harsh environments minimizes waste
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMS30-20NNOVC0S inductive sensor is available for immediate purchase, ideal for industrial applications requiring reliable sensing in harsh environments.
