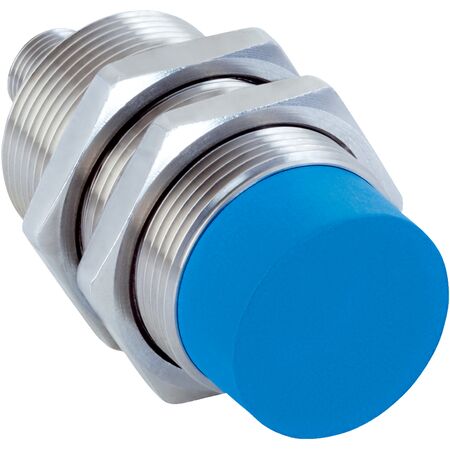

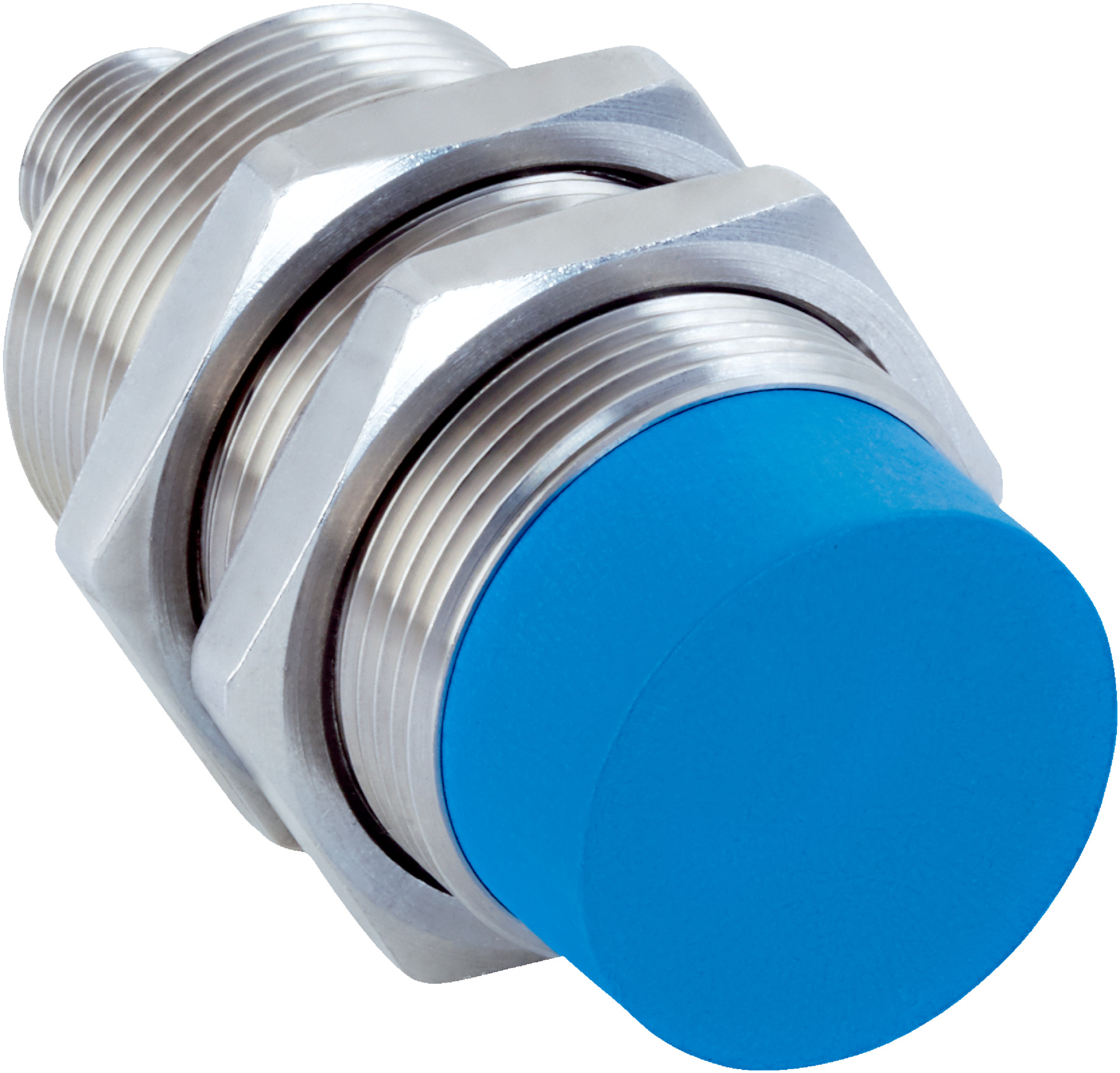

Inductive Proximity Sensor M30 | Non-Flush Design | 20mm Sensing Range | PNP NO Output | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection of metal objects in industrial automation and mobile machinery applications. With a non-flush installation type and a sensing range of 20 mm, this sensor operates at a high switching frequency of 500 Hz. Its robust IP67, IP68, and IP69K ratings ensure durability in harsh environments, making it ideal for zones with coolant lubricants and extreme temperatures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, nickel-plated brass
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67, IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Ambient operating temperature: -40 °C to +85 °C
- Protection class: III
- MTTFD: 1,820 years
- Mission time: 20 years
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- High switching frequency of 500 Hz with PNP NO output
- IP67, IP68, and IP69K rated for robust environmental protection
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machinery sensing in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMG30-20NPSZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery sensing applications.
