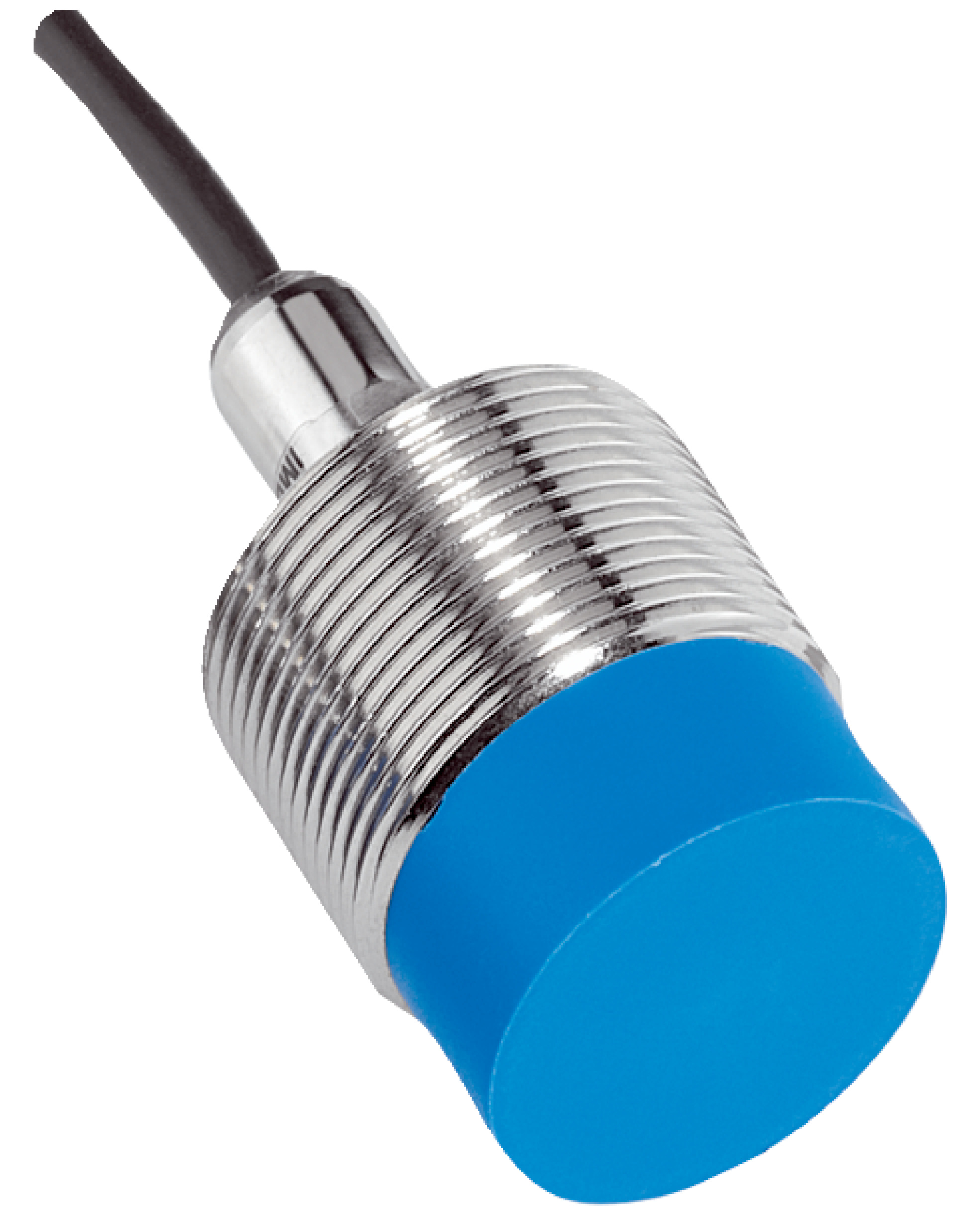

Inductive Proximity Sensor M30 | Non-Flush Installation | IP67 Rated | 38mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 38mm sensing range and IP67 rated enclosure for dust and water protection. With a non-flush installation type and robust brass housing, it’s perfect for harsh environments and ensures long-lasting performance. Ideal for manufacturing processes and position sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 90 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PVC, 3-wire, 2 m length, diameter Ø 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 38 mm with safe sensing range of 30.78 mm
- Switching frequency of 100 Hz
- NPN normally closed switching output
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Shock and vibration resistant up to 30 g
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- RoHS compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

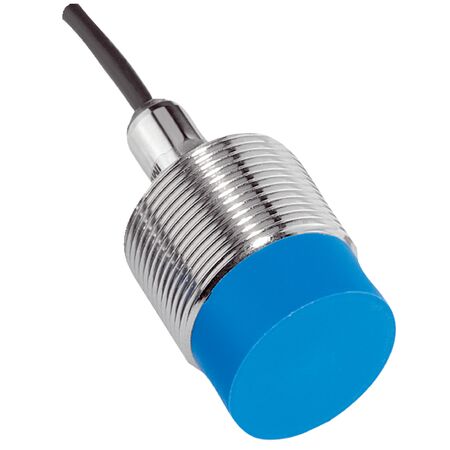

The SICK IME30-38NNOZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
