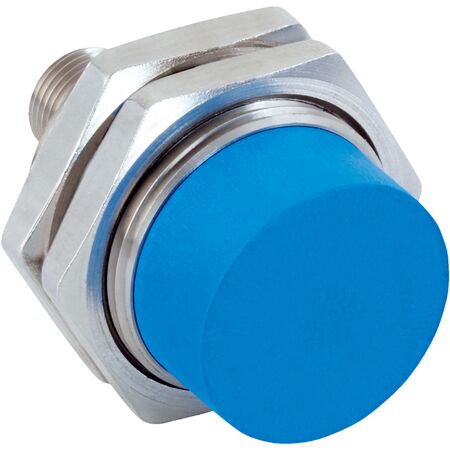

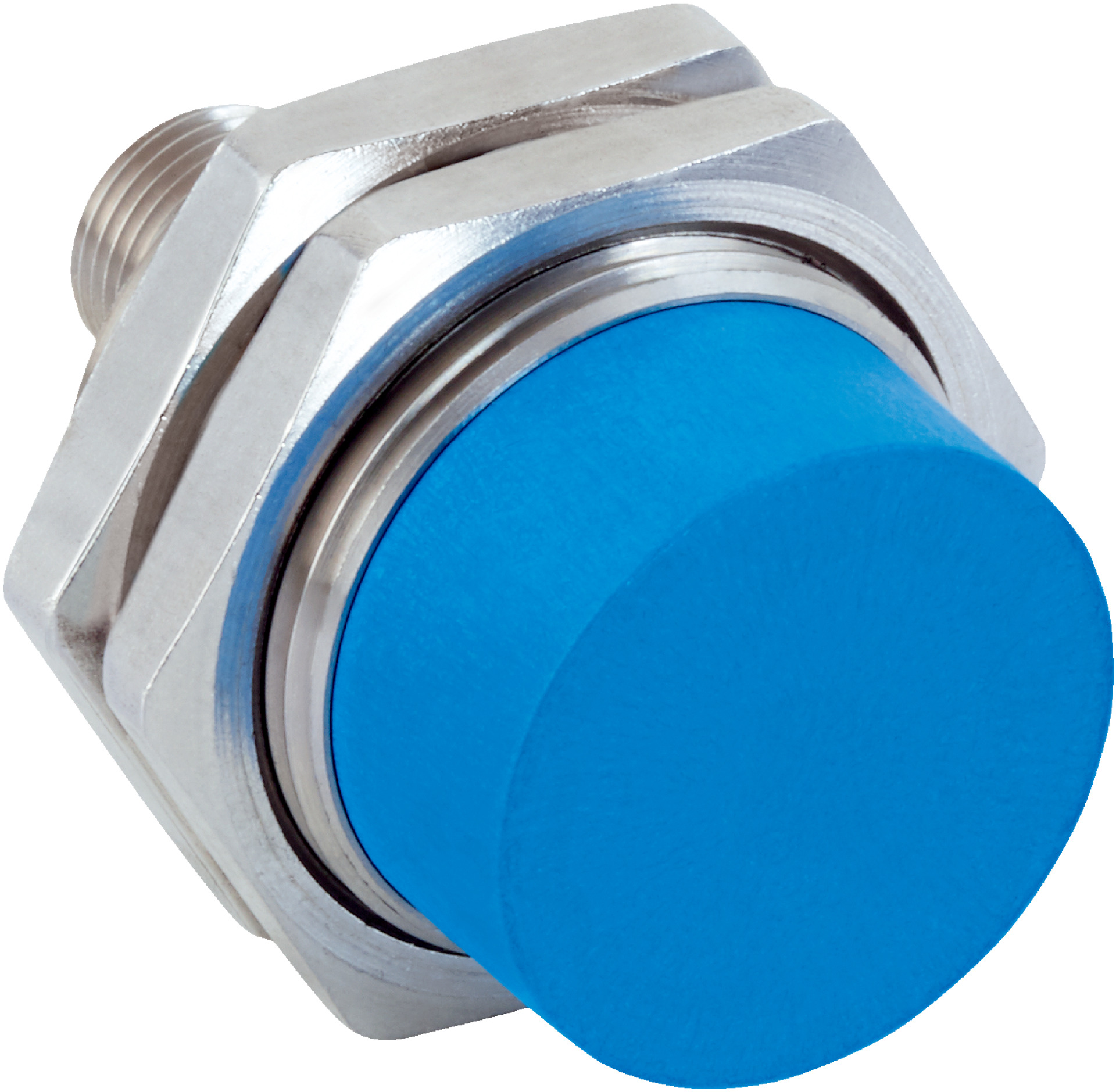

Inductive Proximity Sensor M30 | Non-Flush Installation | IP67, IP68, IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection of metal objects in industrial automation and mobile machinery applications. With a sensing range of 20 mm and robust IP67, IP68, and IP69K ratings, this sensor is built to withstand harsh environments, including exposure to coolants and lubricants. Its durable nickel-plated brass housing ensures longevity, making it ideal for challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g peak
- LED yellow indicator for switching status
- Protection class III
- UL File No.: E181493
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- PNP switching output with NC function
- Connection via male M12 4-pin connector
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machinery sensing in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-20NPOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
