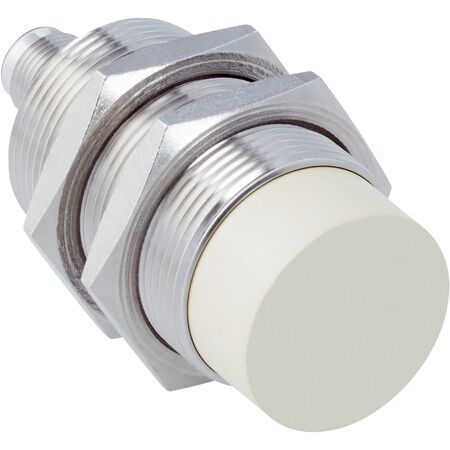

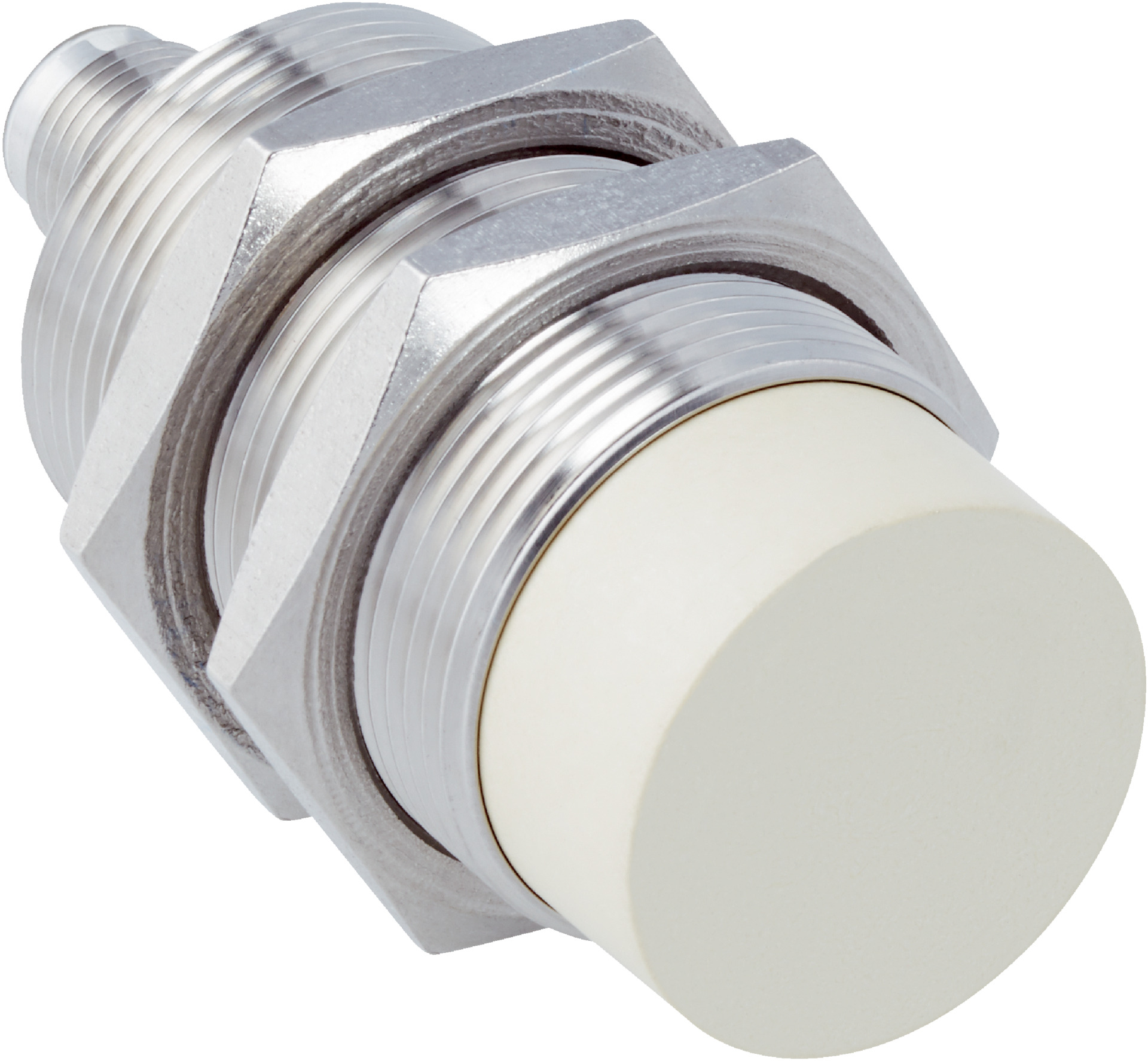

Inductive Proximity Sensor M30 | Non-Flush Installation | PNP NC Output | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in industrial automation and hygienic zones. With a non-flush installation type and a sensing range of 20 mm, it features a PNP NC output and high switching frequency of 500 Hz. Built with durable stainless steel housing, this sensor is resistant to cleaning agents and high-pressure washdown, making it ideal for challenging application conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- PNP switching output with NC function
- Male connector M12, 4-pin connection
- High switching frequency of 500 Hz
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and machinery requiring non-flush inductive sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Resistant to cleaning agents enabling use in hygienic environments without damage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMF30-20NPONC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
