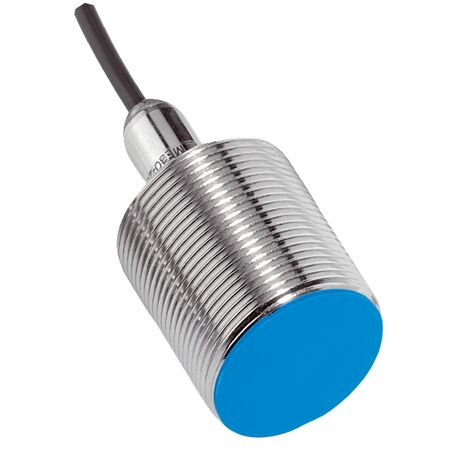

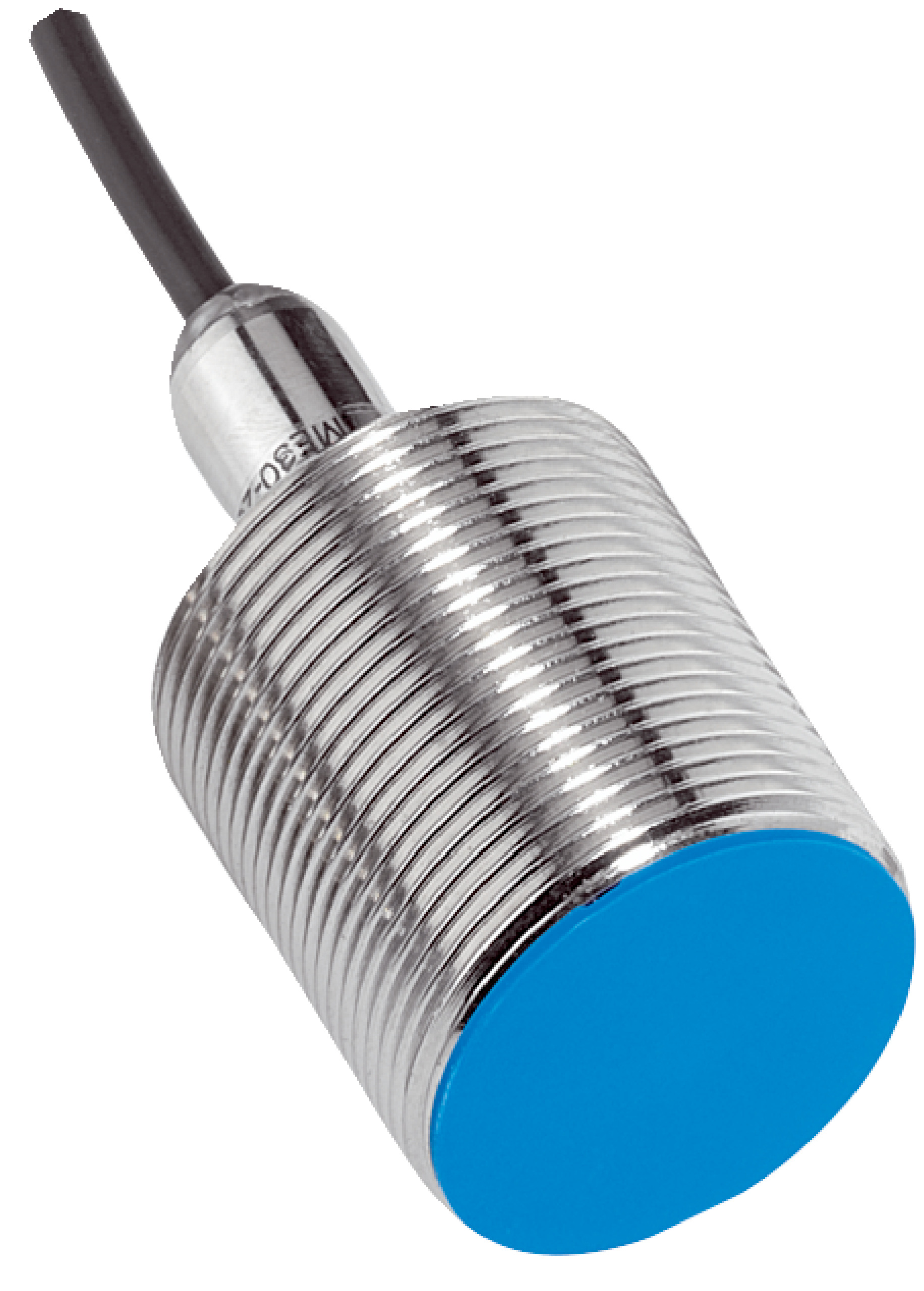

Inductive Proximity Sensor M30 | NPN Output | IP67 Rated | 10 mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 10 mm and an IP67 rating for dust and water protection. With a robust brass housing and a switching frequency of 500 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and efficiency in factory environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | NPN Output | IP67 Rated | 10 mm Sensing Range | by SICK
Brand: SICK
SKU: 1041007
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, NPN Proximity Switch, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency of 500 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-10BNSZW2K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
