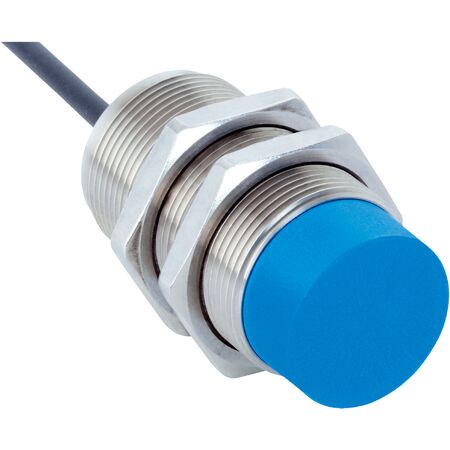

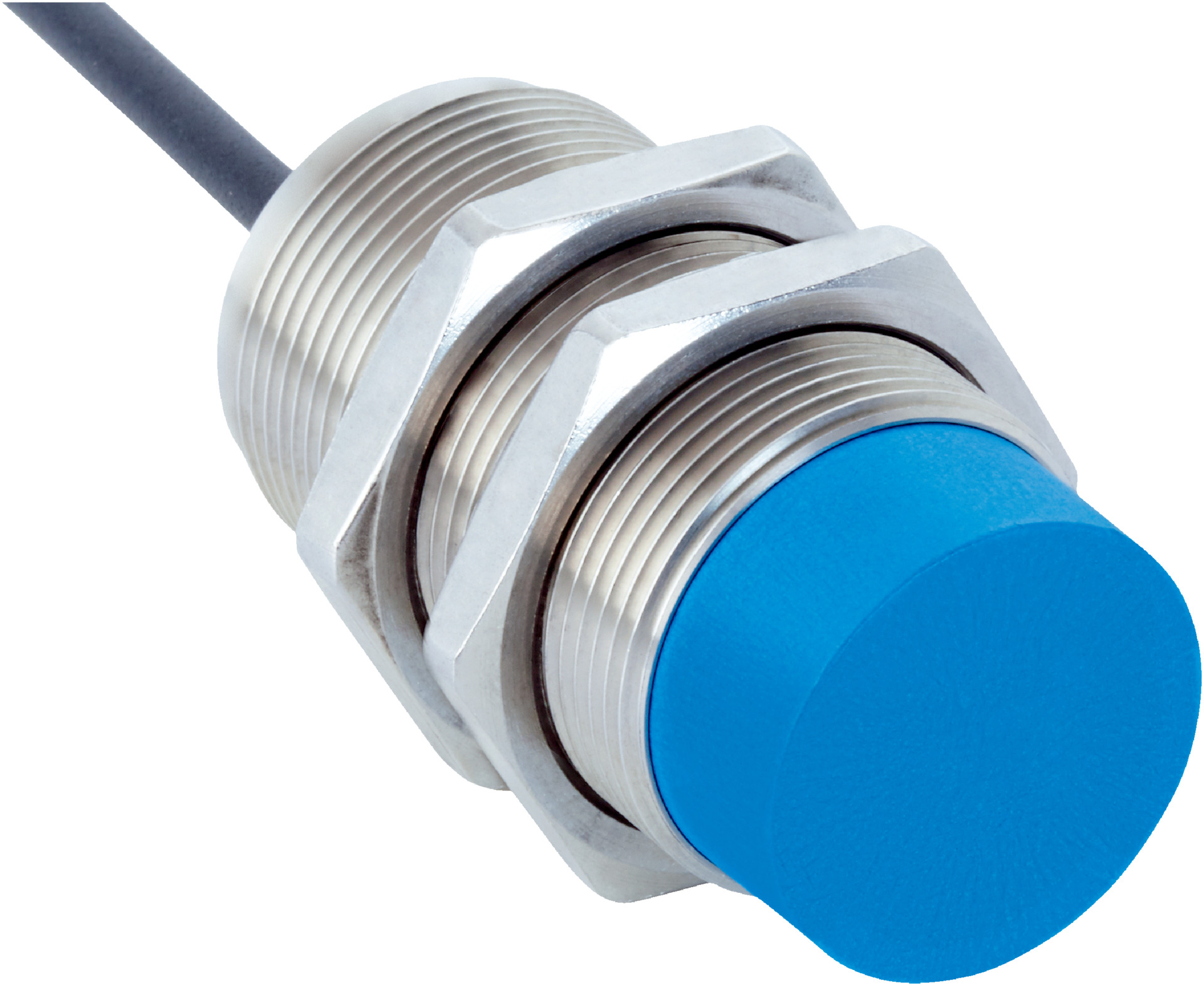

Inductive Proximity Sensor M30 | NPN Normally Open | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a sensing range of 20 mm and a robust IP67/IP68/IP69K protection rating, it excels in harsh environments, including those with coolants and lubricants. Built for durability, this sensor operates within a temperature range of -40 °C to +85 °C, making it ideal for mobile machines and challenging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Switching output: NPN, normally open
- Current rating: Continuous current ≤ 200 mA, No load current ≤ 10 mA
- Cable: PUR, 3-wire, 2 m length, diameter 3.9 mm
- Protection rating: IP67, IP68, IP69K
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Shock resistance: 100 g, vibration resistance: 60 g peak
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- NPN normally open switching output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67, IP68, and IP69K for high protection
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-20NNSZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
