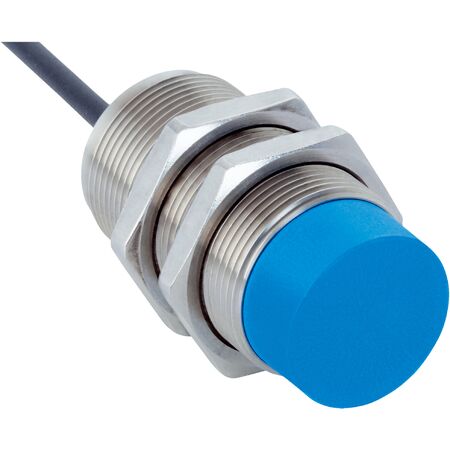

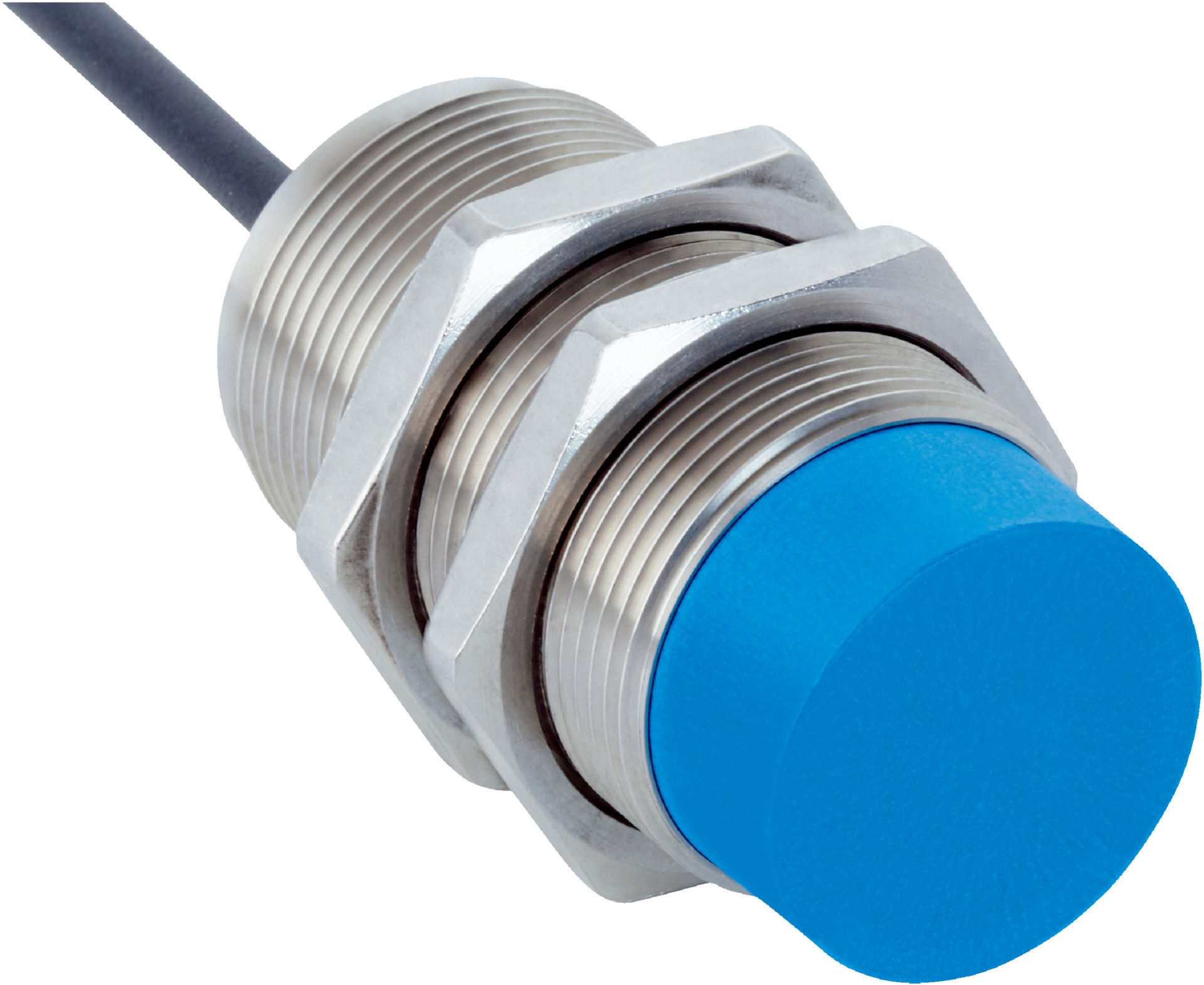

Inductive Proximity Sensor M30 | NPN Output | IP68 & IP69K Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a 20mm sensing range and NPN normally closed output. With an IP68 and IP69K enclosure rating, it's perfect for mobile machines and areas exposed to coolants and lubricants, ensuring reliable performance even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 5 mm
- Conductor size: 0.5 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g peak
- EMC compliance with multiple standards including ECE-R10 and ISO 11452-2
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Enclosure rating: IP68 and IP69K
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with NPN normally closed output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V2A (AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to manufacturer guidelines.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMS30-20NNOVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
