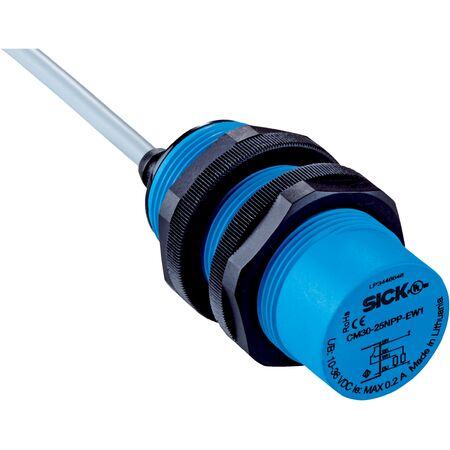

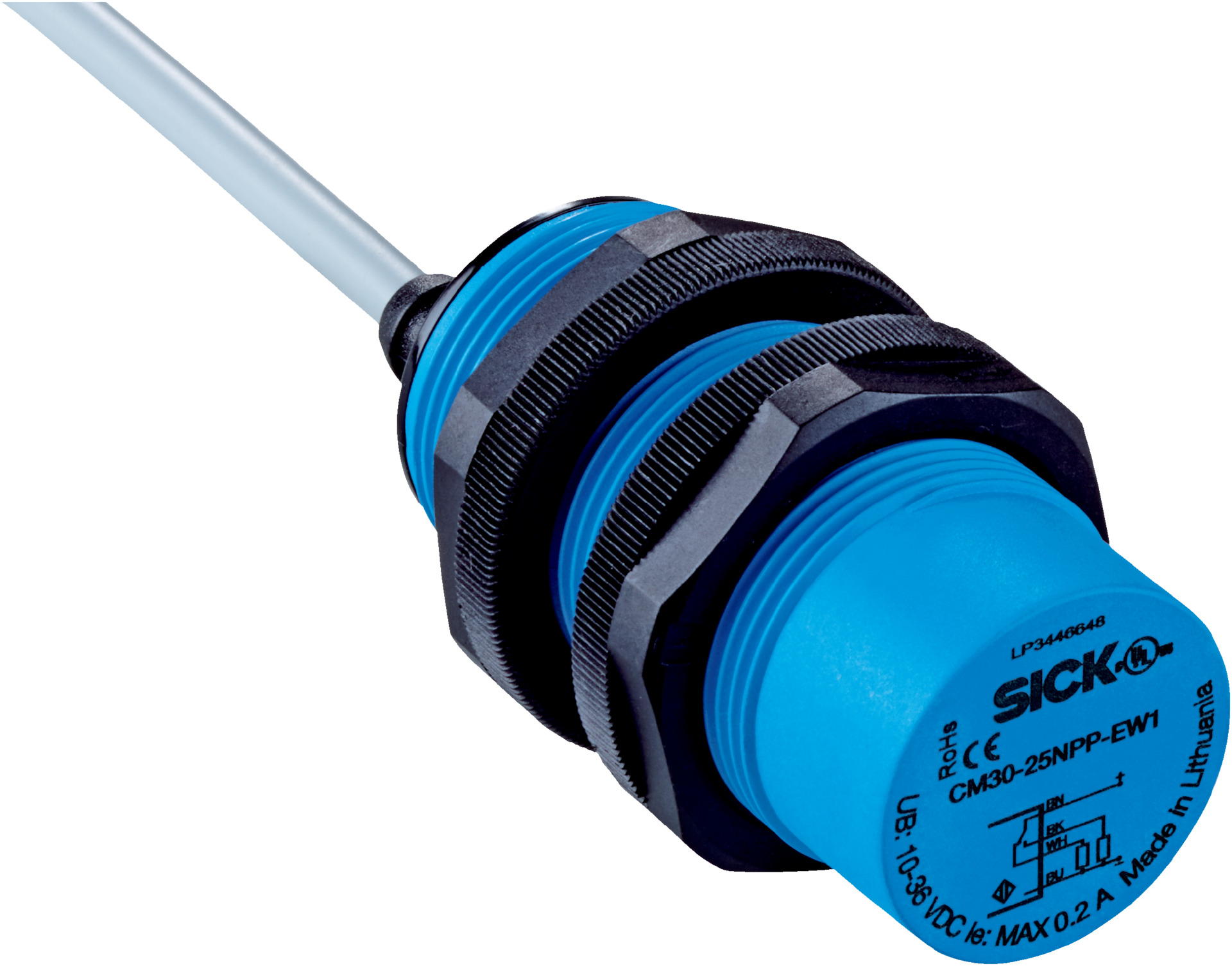

Inductive Proximity Sensor M30 | NPN Output | IP68 & IP69K Rated | 4mm to 25mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 4mm to 25mm and NPN complementary output. With a robust IP68 and IP69K protection rating, it excels in harsh environments, making it ideal for manufacturing lines and machinery applications. Built to withstand extreme temperatures from -30°C to +85°C, this sensor ensures durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Switching frequency: 50 Hz
- Voltage drop: ≤ 2 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Cable diameter: Ø 5.2 mm, PVC material
- Housing material: Plastic, PBT
- Thread length: 45.5 mm
- Tightening torque max: ≤ 7.5 Nm
- EMC compliant according to EN 60947-5-2
- Short-circuit and power-up pulse protection included
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +85°C
- Dimensions (H x L x W): 30mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Non-flush metric housing with M30 x 1.5 thread size
- Sensing range from 4 mm to 25 mm
- NPN complementary wire configurable output
- High protection rating IP68 and IP69K for harsh environments
- Cable connection with 4-wire, 2 m PVC cable
- Short-circuit and power-up pulse protection
- Wide operating temperature range from -30°C to +85°C
- Shock and vibration resistant according to EN 60068
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-flush mounting in machinery
- Harsh environment sensing with IP68 and IP69K protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CM30-25NNP-EW1 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
