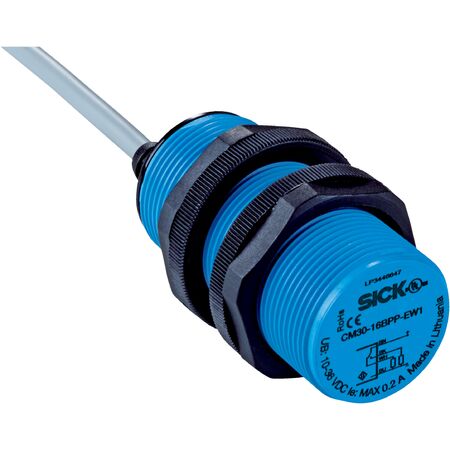

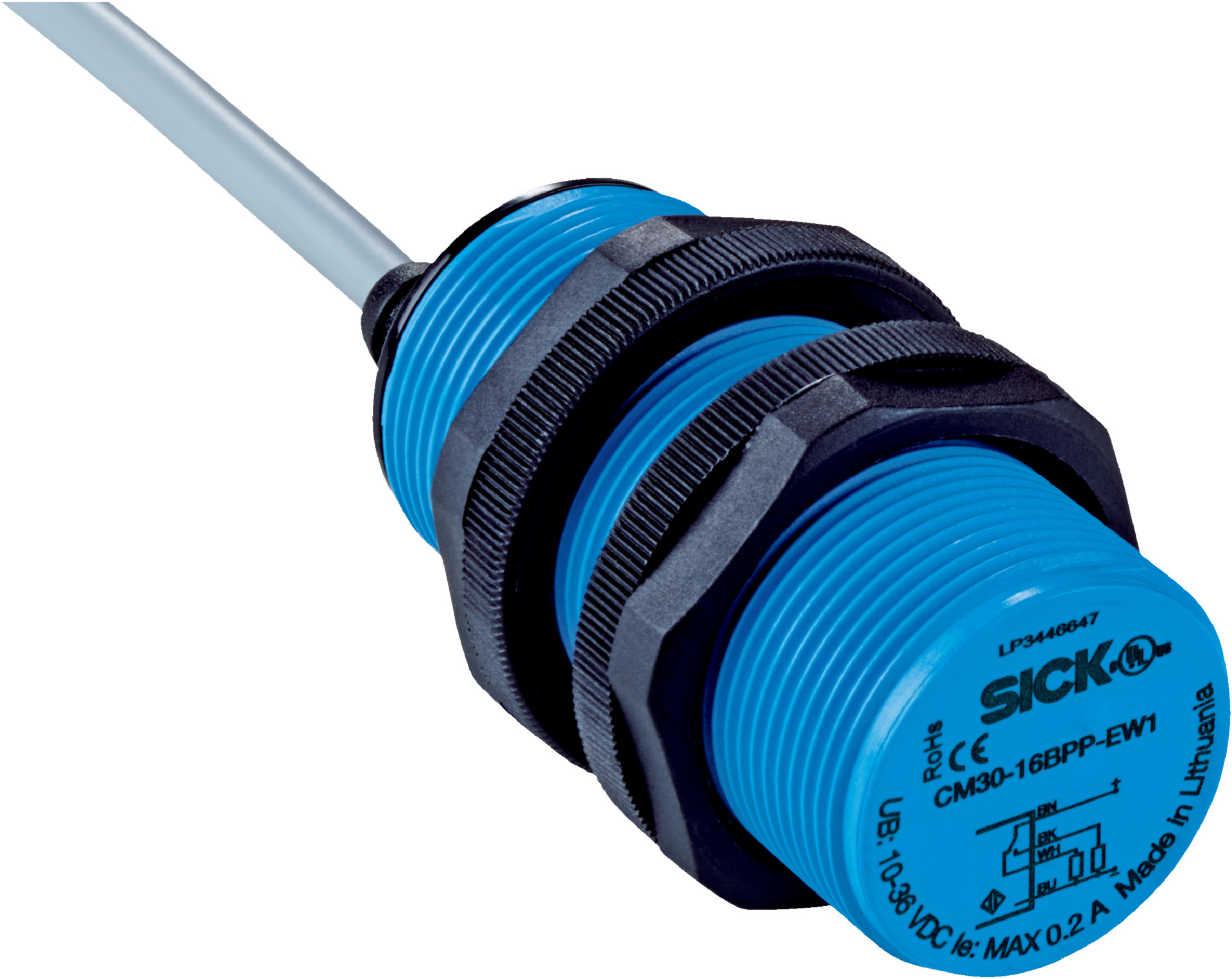

Inductive Proximity Sensor M30 | NPN Output | IP68 & IP69K Rated | Flush Mount | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 3 mm to 16 mm and NPN switching output. With IP68 and IP69K ratings, it ensures high protection against dust and water, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Switching frequency: 50 Hz
- Voltage drop: ≤ 2 V DC
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Cable material: PVC, diameter 5.2 mm
- Housing material: Plastic, PBT
- Thread length: 59.5 mm
- Tightening torque max: ≤ 7.5 Nm
- EMC compliant according to EN 60947-5-2
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 30mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range from 3 mm to 16 mm
- Flush installation type
- NPN switching output with complementary wire configurable function
- IP68 and IP69K rated for high protection against dust and water
- Cable connection with AMP male connector, 3-pin, 0.3 m length
- Shock and vibration resistant according to EN 60068
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in robotics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High ingress protection minimizes environmental contamination risks
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CM30-16BNP-EWDS03 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
