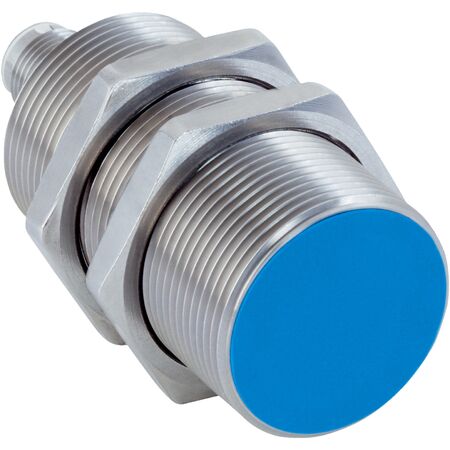

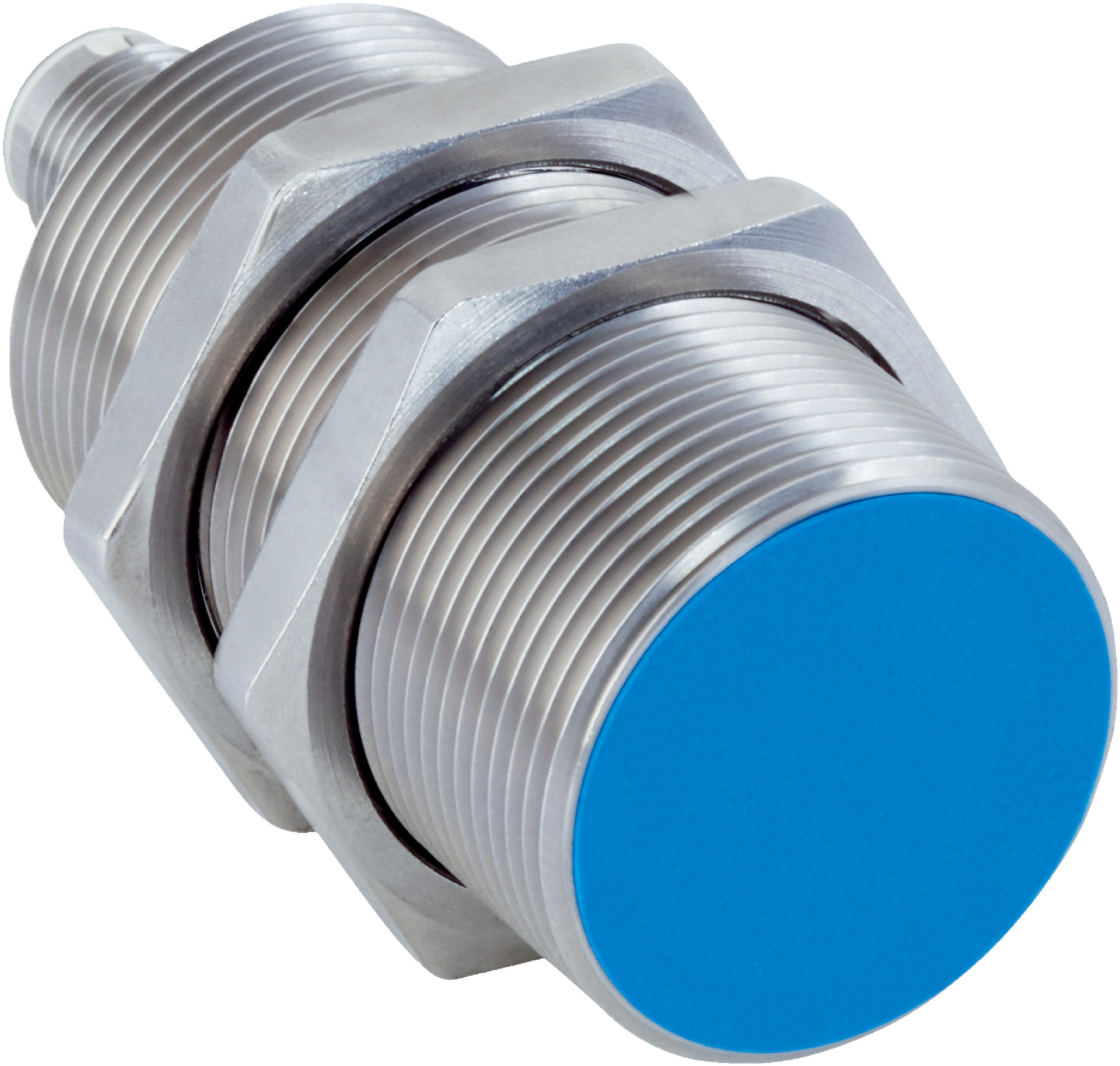

Inductive Proximity Sensor M30 | NPN NC Output | IP68 & IP69K Rated | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a 15mm sensing range and NPN normally closed output. With an IP68 and IP69K enclosure rating, it's perfect for mobile machines and hygienic zones, ensuring reliable performance even in harsh conditions. Built with a durable stainless steel housing, this sensor is resistant to cleaning agents and operates efficiently across a wide temperature range from -40 °C to +100 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Switching output: NPN normally closed
- Switching frequency: 300 Hz
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP68, IP69K
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak, 10 Hz to 2000 Hz
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 300 Hz with NPN normally closed output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Housing made of stainless steel V4A (AISI 316L) and sensing face of plastic LCP
- Wide ambient operating temperature from -40 °C to +100 °C
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure correct wiring and mounting according to safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMS30-15BNONC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic zone applications.
