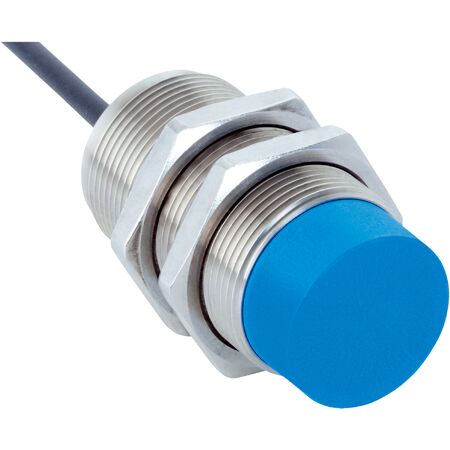

Inductive Proximity Sensor M30 | NPN Normally Closed | 20mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a sensing range of 20 mm and a high switching frequency of 500 Hz, this NPN normally closed sensor is perfect for harsh environments, including zones with coolants and lubricants. Built to withstand extreme temperatures from -40 °C to +85 °C, it ensures durability and efficiency in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN, normally closed (NC)
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Cable length: 2 m, PUR material, diameter 3.9 mm
- Protection rating: IP67, IP68, IP69K
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Shock resistance: 60 g peak vibration, 100 g shock
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- High switching frequency of 500 Hz with NPN normally closed output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-20NNOZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
