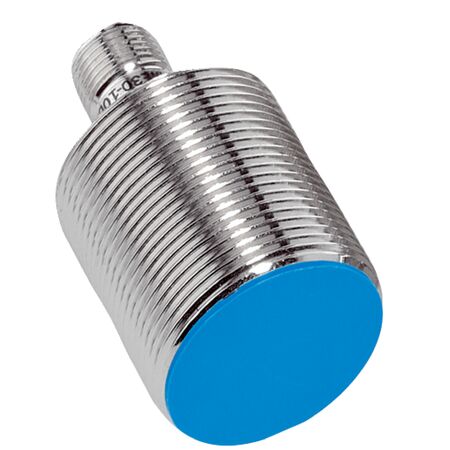

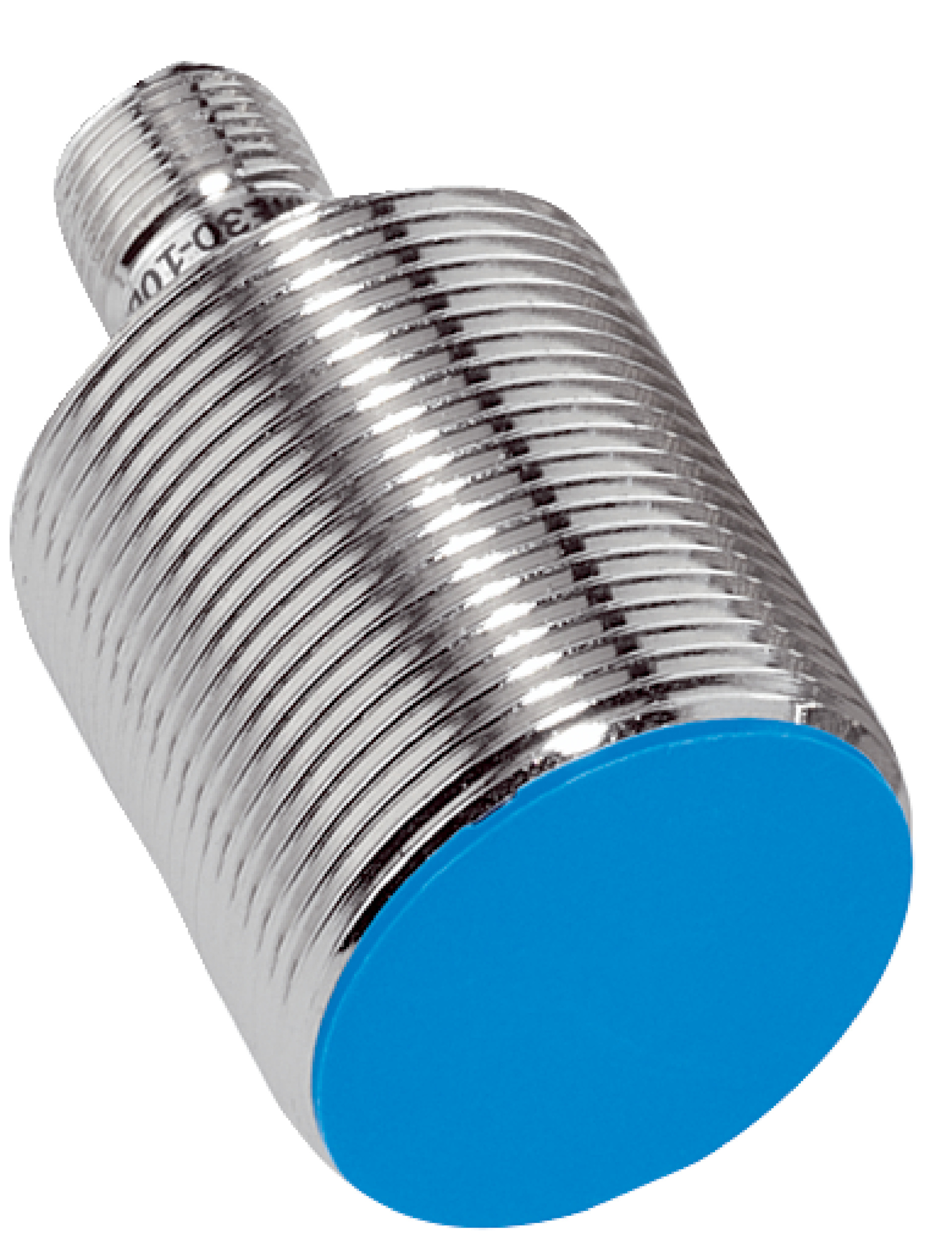

Inductive Proximity Sensor M30 | NPN Normally Closed | IP67 Rated | Flush Mount | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 10 mm and a robust IP67 rated enclosure for dust and water protection. With a switching frequency of up to 500 Hz and a flush installation type, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | NPN Normally Closed | IP67 Rated | Flush Mount | by SICK
Brand: SICK
SKU: 1041010
Alternatively Known As: Inductive Proximity Sensor M30, NPN Proximity Sensor, Flush Mount Proximity Sensor, Metal Proximity Switch
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M30 x 1.5
- Diameter: 30 mm
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Housing length: 52 mm
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency up to 500 Hz
- NPN normally closed switching output
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Wide supply voltage range from 10 V DC to 30 V DC
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Supports automation that can optimize resource use and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-10BNOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
