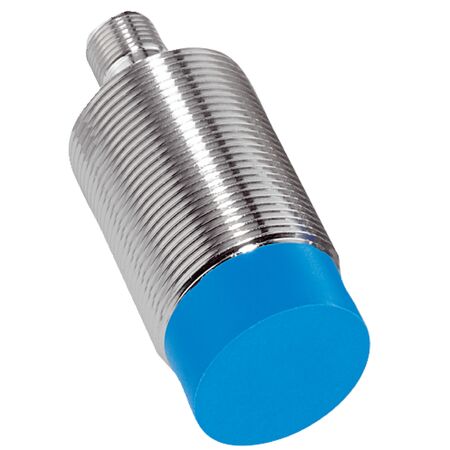

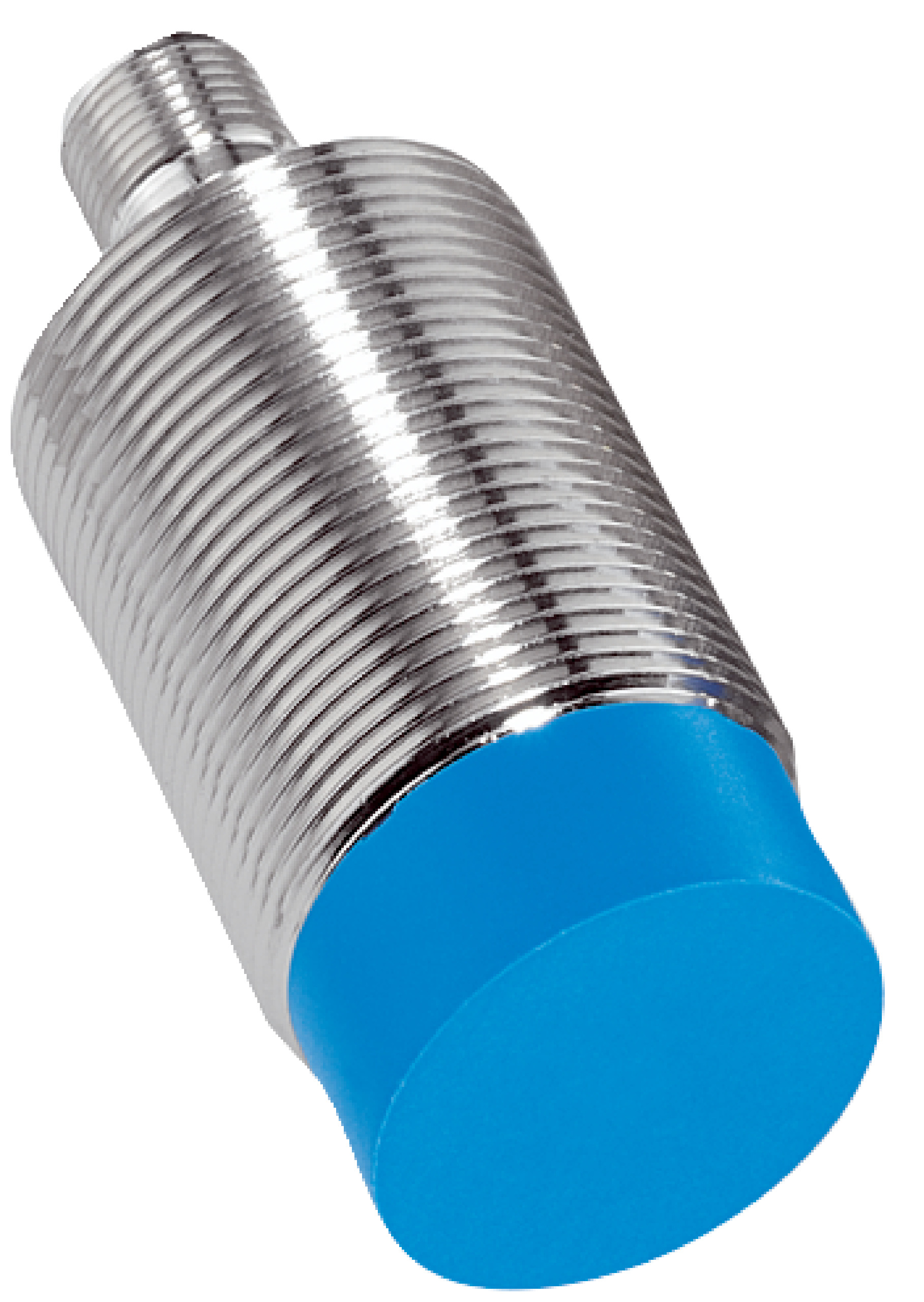

Inductive Proximity Sensor M30 | NPN Normally Closed Output | IP67 Rated | Triple Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 38 mm and an IP67 rated enclosure for dust and water protection. Ideal for non-contact switching in harsh environments, this sensor ensures durability with its brass, nickel-plated housing and is perfect for manufacturing lines and position sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 90 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +75 °C
- Storage temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 30mm x 71mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with diameter Ø 30 mm
- Non-flush installation type
- Sensing range Sn of 38 mm with safe sensing range Sa of 30.78 mm
- Switching frequency of 100 Hz with NPN normally closed output
- Connection via male M12 4-pin connector
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IME30-38NNOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
