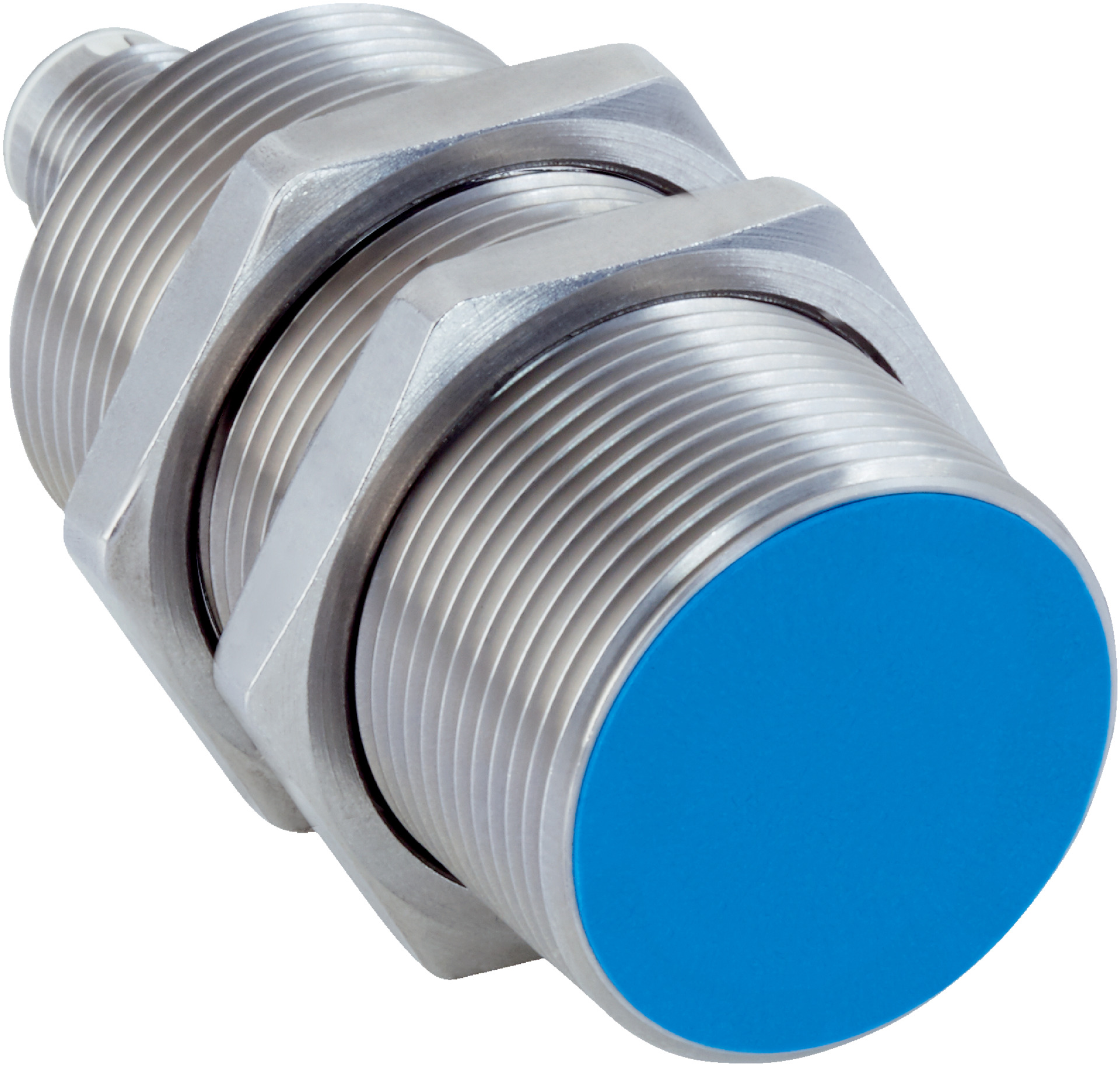

Inductive Proximity Sensor M30 | NPN Normally Open Output | IP68 & IP69K Rated | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in harsh environments, featuring a 15mm sensing range and NPN normally open output. With an IP68 and IP69K rated enclosure, it's perfect for mobile machines and areas with coolants and lubricants, ensuring reliable performance even under difficult conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Switching output: NPN normally open
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 300 Hz with NPN normally open output
- Connection via male M12 4-pin connector
- IP68 and IP69K rated enclosure for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper flush mounting and electrical connection according to manufacturer guidelines.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments extends product life
- Low power consumption with DC 3-wire electrical wiring
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

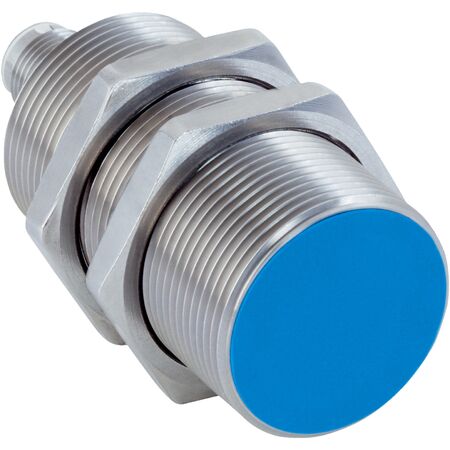

The SICK IMS30-15BNSVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
