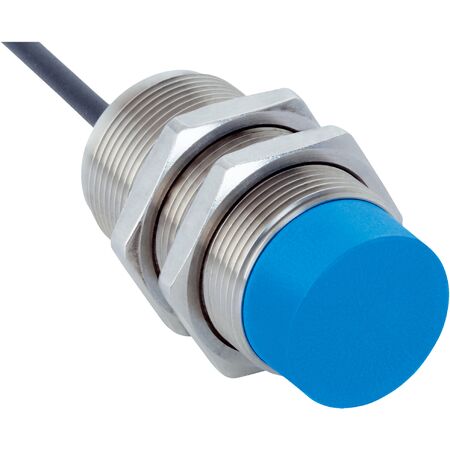

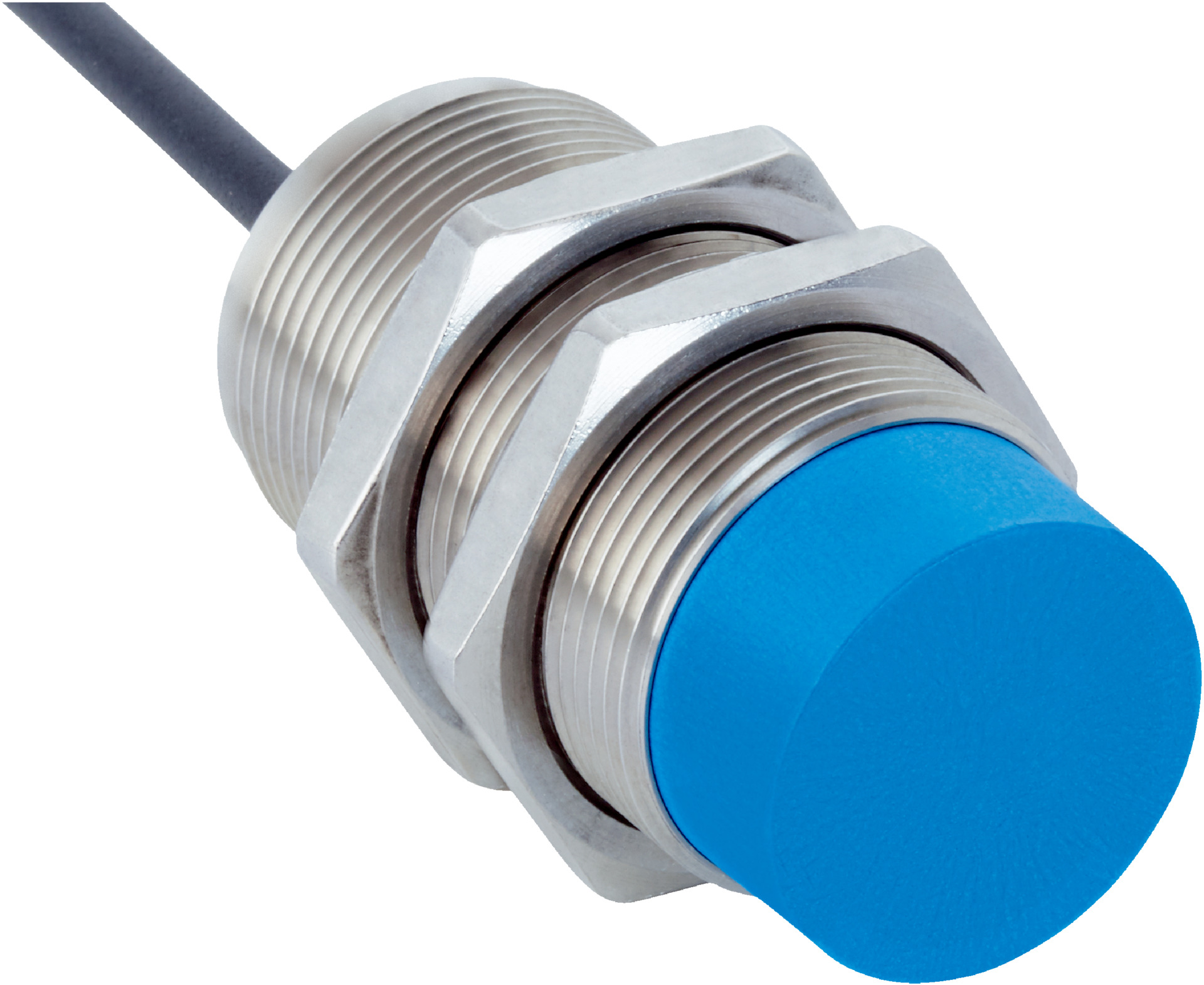

Inductive Proximity Sensor M30 | NPN Normally Open Output | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable sensing in harsh environments, featuring a sensing range of 20 mm and an NPN normally open output. With an IP68 and IP69K enclosure rating, it's perfect for mobile machines and hygienic washdown zones, ensuring durability and high resistance to cleaning agents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Switching output: NPN, normally open
- Switching frequency: 500 Hz
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PUR, 3-wire, 2 m length, 0.5 mm² conductor size, 5 mm diameter
- Protection class: III
- Shock resistance: 100 g, vibration resistance: 25 g
- Operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Enclosure rating: IP68 and IP69K
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with NPN normally open output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Housing made of stainless steel V4A (AISI 316L) and sensing face of plastic LCP
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic applications minimizing chemical use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMS30-20NNSNU2S inductive proximity sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
