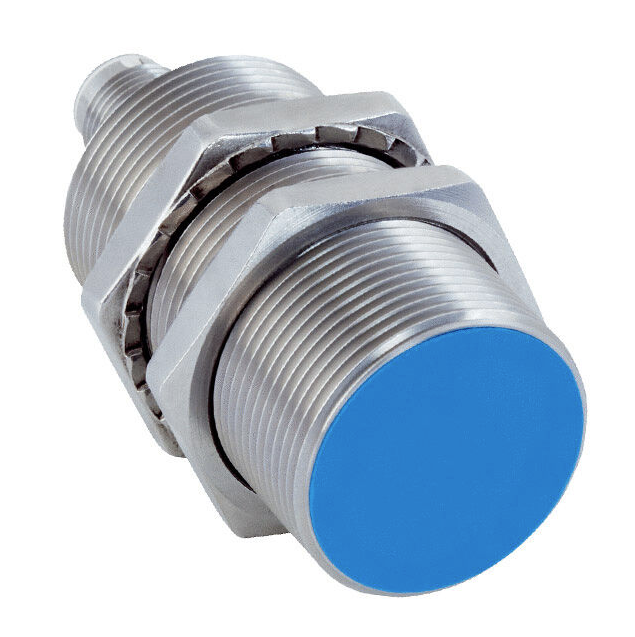

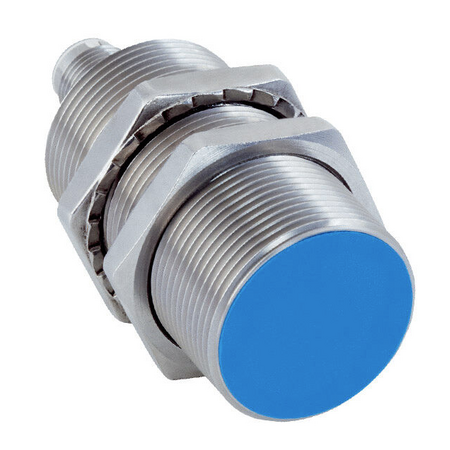

Inductive Proximity Sensor M30 NPN Normally Open Output IP68 & IP69K Rated SICK
The Inductive Proximity Sensor M30 is designed for reliable metal detection in industrial automation and mobile machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, SICK IMB30 Sensor, NPN Inductive Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally open
- Switching frequency: 500 Hz
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- NPN normally open switching output with DC 3-wire electrical wiring
- High switching frequency of 500 Hz
- IP68 and IP69K rated for protection against dust and high-pressure water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant for reliable operation in tough conditions
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMB30-15BNSVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable metal object detection.
