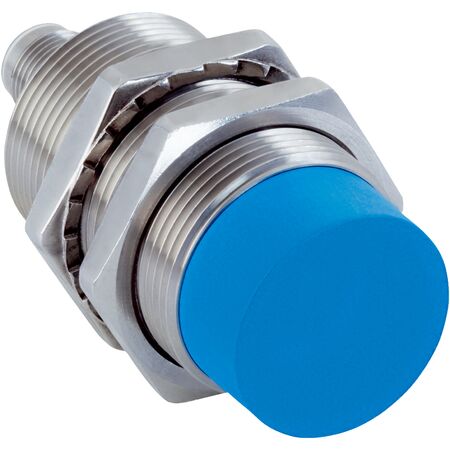

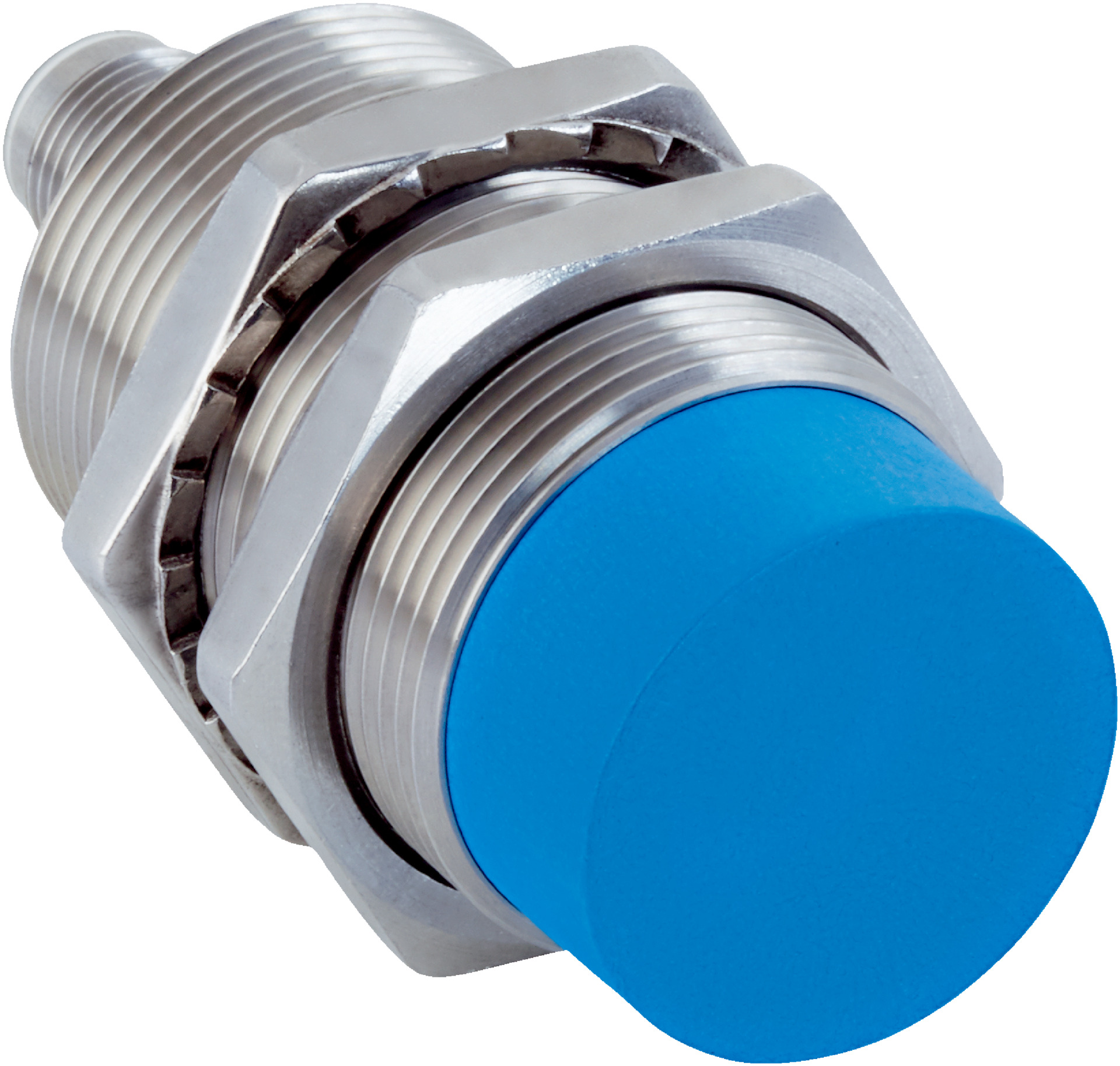

Inductive Proximity Sensor M30 PNP | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 PNP is designed for reliable object detection in industrial automation, featuring a sensing range of up to 20 mm and an IP68/IP69K rating for protection against dust and water. With up to 4 adjustable switching points and robust stainless steel housing, it's perfect for harsh environments where coolants and lubricants are present.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Sensing range Sn: 0 mm to 20 mm
- Safe sensing range Sa: 16.2 mm
- Number of switching points: Up to 4 adjustable
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, programmable NC/NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Ambient operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Non-flush mounting with metric M30 x 1.5 thread
- Sensing range up to 20 mm with safe sensing range of 16.2 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching output PNP with programmable NC/NO function
- IP68 and IP69K rated for high protection against dust and water
- Resistant against coolant lubricants
- Smart Task logic functions including AND, OR, XOR, hysteresis and timer functions
- IO-Link V1.1 communication interface with 5 ms cycle time
- Shock and vibration resistant with high mechanical durability
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and proper electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
- Machine safety and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Resistant to harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC30-20NPPVC0SA00 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
