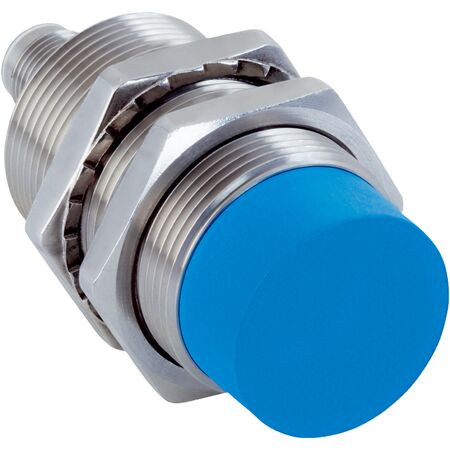

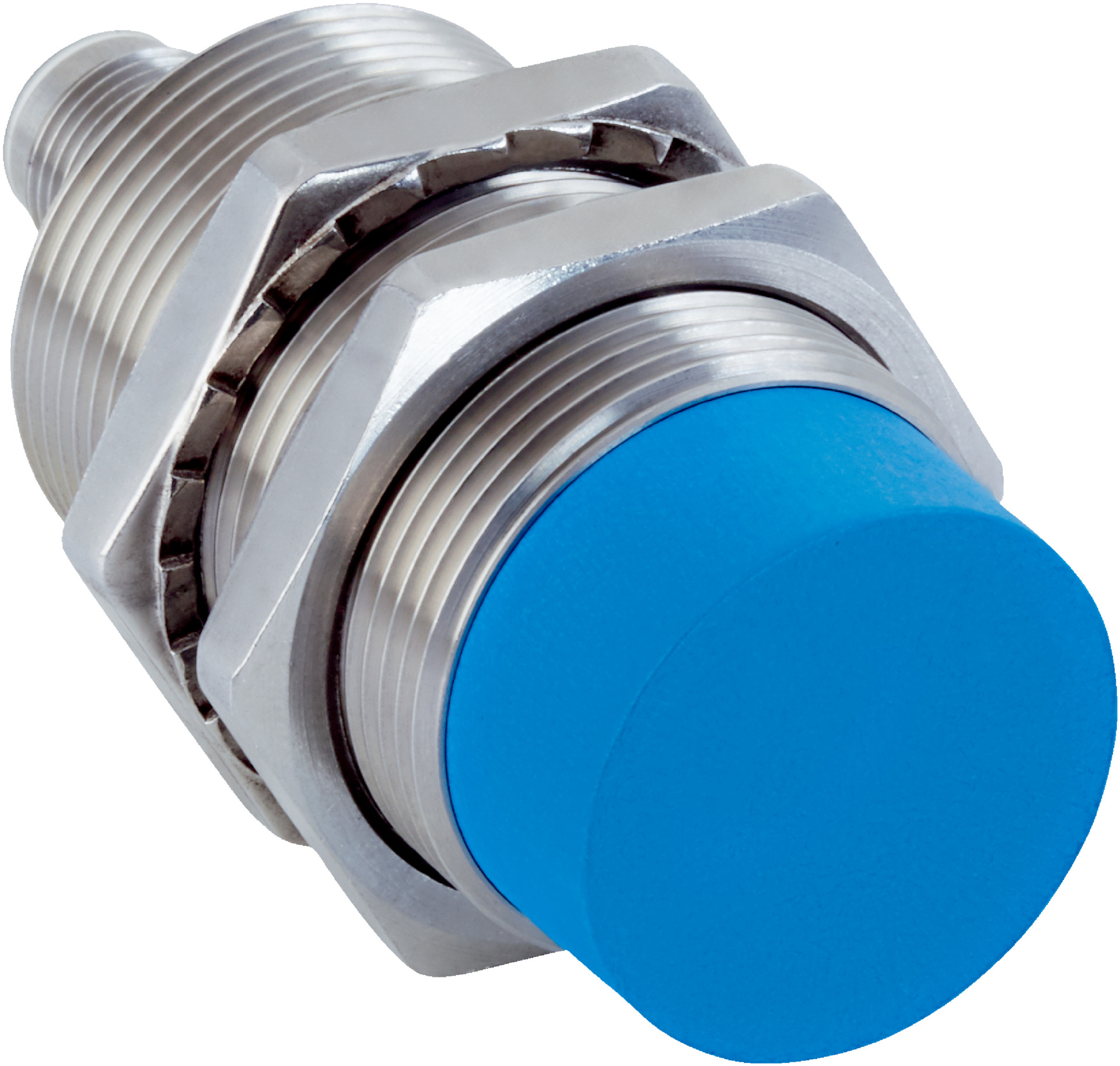

Inductive Proximity Sensor M30 PNP IO-Link | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 PNP IO-Link is designed for reliable object detection in industrial automation. With a sensing range of up to 20mm and robust IP68/IP69K enclosure ratings, it excels in harsh environments, including those with coolants and lubricants. Built for durability, this sensor features a stainless steel housing and programmable switching modes, making it ideal for various applications requiring precision and resilience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Switching frequency: 200 Hz
- Operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Enclosure rating: IP68, IP69K
- Connection: Male M12 4-pin connector
- Switching output: PNP, programmable NC/NO
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 20 mm with safe sensing range of 16.2 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- High switching frequency of 200 Hz
- Non-flush installation type
- Male M12 4-pin connector
- PNP switching output with programmable NC/NO function
- Electrical wiring: DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants
- Smart Task functionality with IO-Link communication
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel recommended; ensure proper mounting torque and correct wiring to maintain IP68/IP69K protection and sensor functionality.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing risk of sensor failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMC30-20NPPVC0SA70 inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable object detection in harsh environments.
