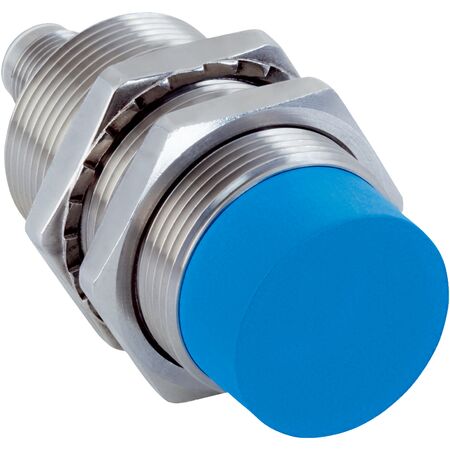

Inductive Proximity Sensor M30 PNP IO-Link | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 PNP IO-Link is designed for industrial automation, featuring a sensing range of up to 20 mm and robust IP68/IP69K ratings for harsh environments. With programmable switching points and a stainless steel housing, it’s perfect for applications involving coolants and lubricants, ensuring reliable object detection even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 200 Hz
- Electrical wiring: DC 4-wire
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), 5 ms cycle time
- Process data length: 32 Bit
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Thread length: 40 mm
- Tightening torque max: 100 Nm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 20 mm with safe sensing range of 16.2 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Non-flush installation type with male M12 4-pin connector
- PNP switching output with programmable NC/NO function
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants
- Smart Task functionality with counter and debouncing
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
- IO-Link V1.1 communication interface with 5 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and proper electrical connection using male M12 4-pin connector.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMC30-20NPPVC0SA71 inductive sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable object detection in harsh environments.
