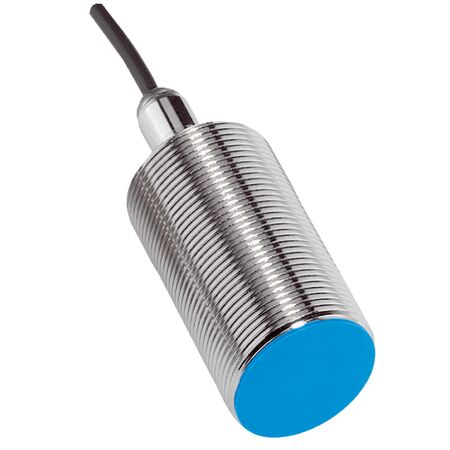

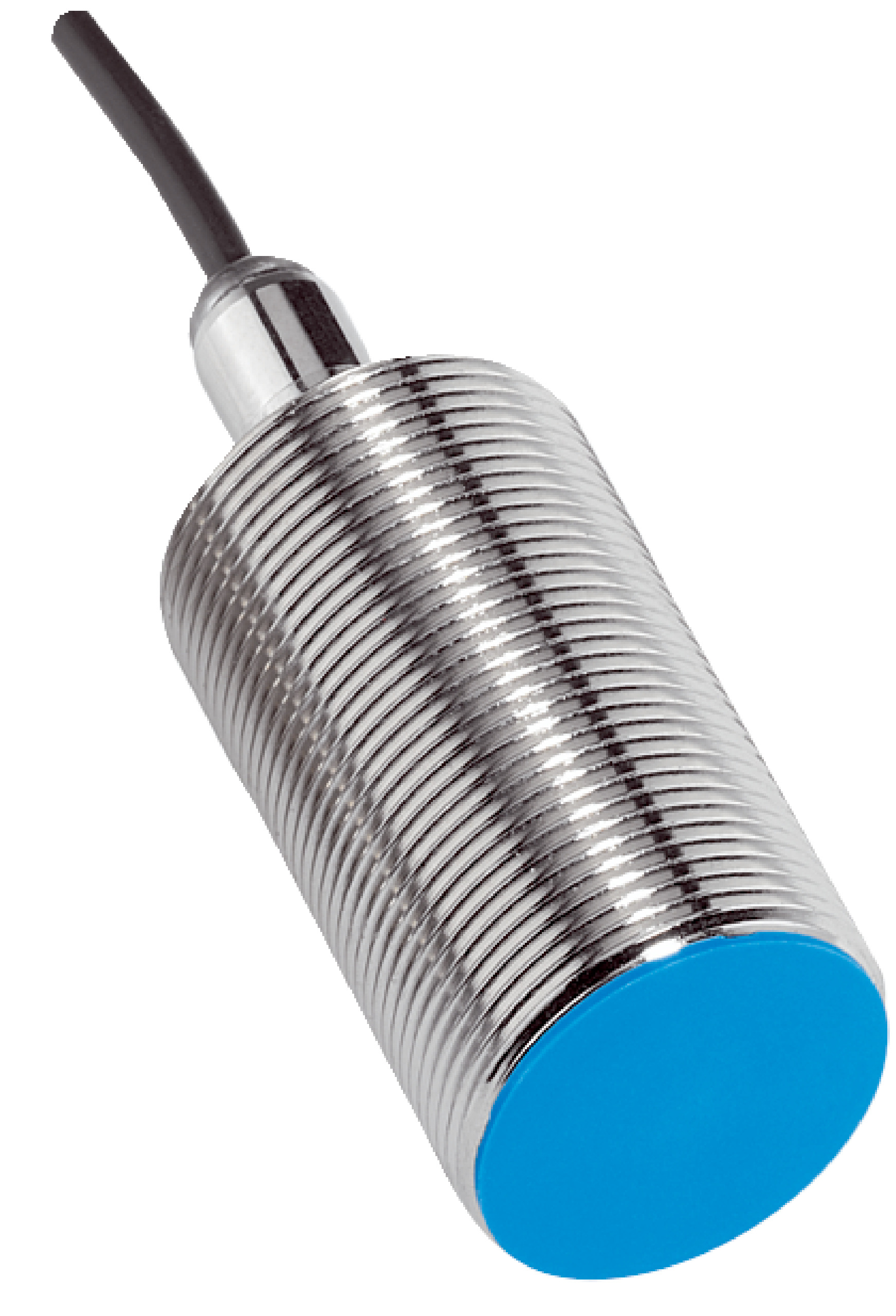

Inductive Proximity Sensor M30 | PNP Output | IP67 Rated | 10mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP output and an IP67 rated enclosure for dust and water protection. With a sensing range of 10 mm and a robust design, it's perfect for position sensing in manufacturing lines and metal detection in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | PNP Output | IP67 Rated | 10mm Sensing Range | by SICK
Brand: SICK
SKU: 1041004
Alternatively Known As: Inductive Proximity Sensor M30, PNP Proximity Sensor, Flush Mount Proximity Sensor, Metal Detection Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Housing length: 70 mm
- Thread length: 54 mm
- Tightening torque max: ≤ 100 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 70mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with a diameter of 30 mm
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type
- Switching frequency of 500 Hz with PNP switching output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-10BPOZW2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
