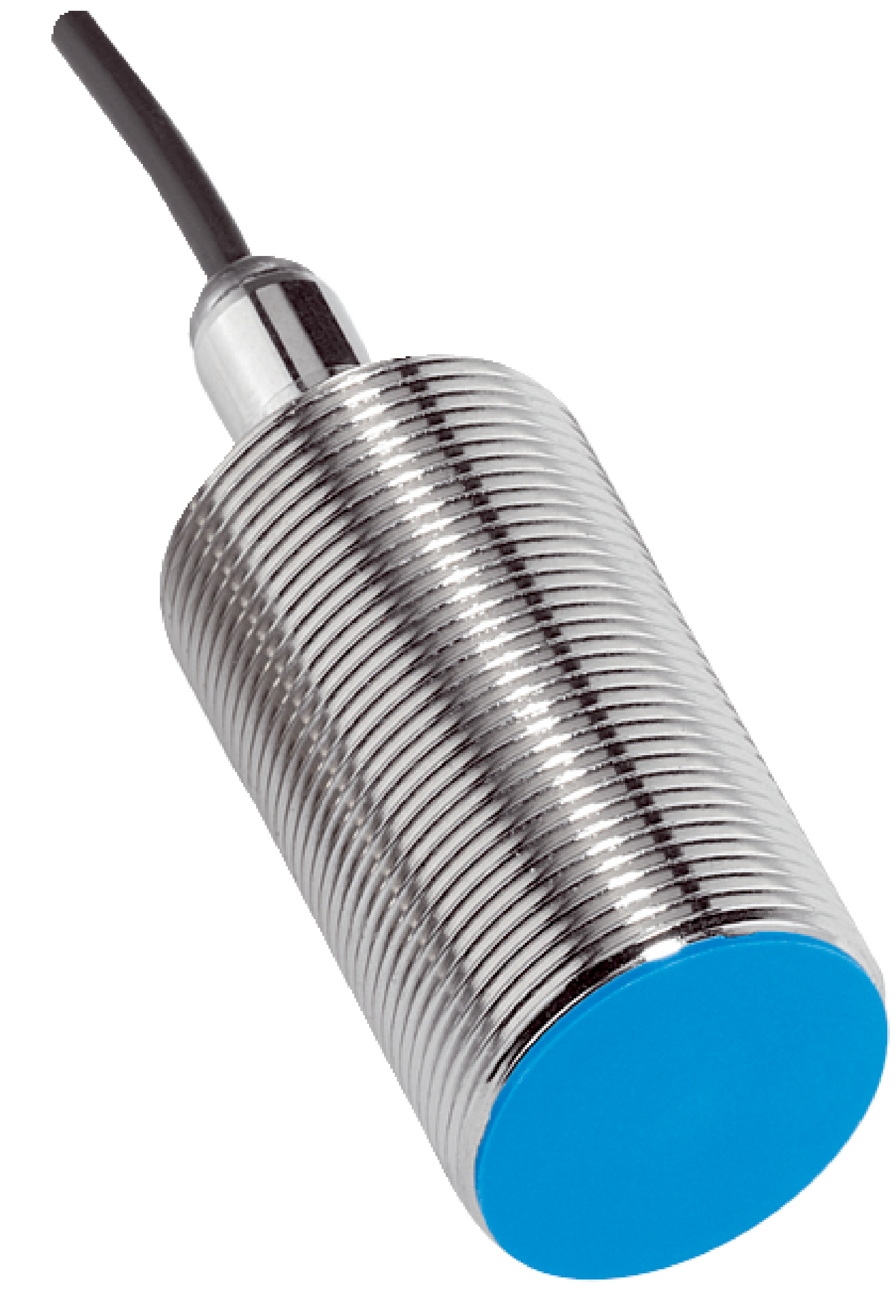

Inductive Proximity Sensor M30 | PNP Output | IP67 Rated | 10mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP output and a sensing range of 10mm. With an IP67 rating for dust and water protection, this sensor operates efficiently in harsh environments, making it ideal for manufacturing process control and machine safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Sensing range Sn: 10 mm
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -25 °C to +75 °C
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable: PUR, 4-wire, 15 m length, diameter 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 10 mm sensing range
- High switching frequency of 500 Hz
- PNP switching output with complementary function
- Cable connection type, 4-wire, 15 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Machine safety and positioning
- Conveyor systems and robotics
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

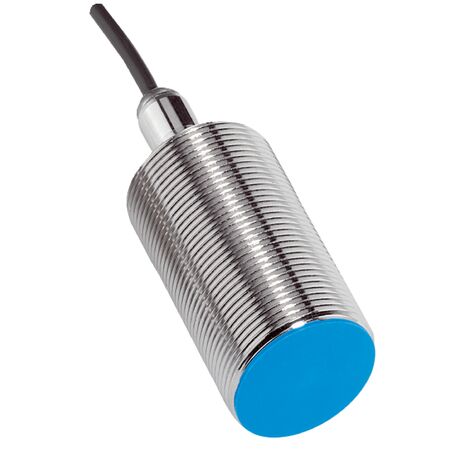

The SICK IME30-10BPPZUDSS27 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
