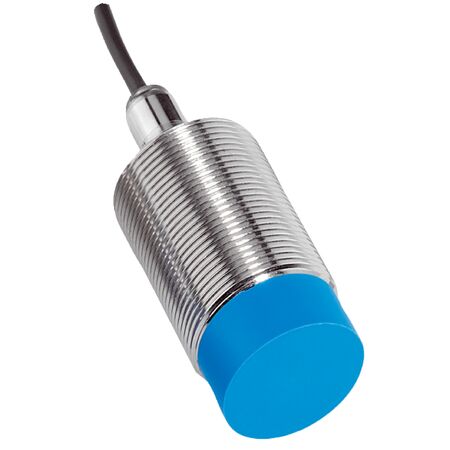

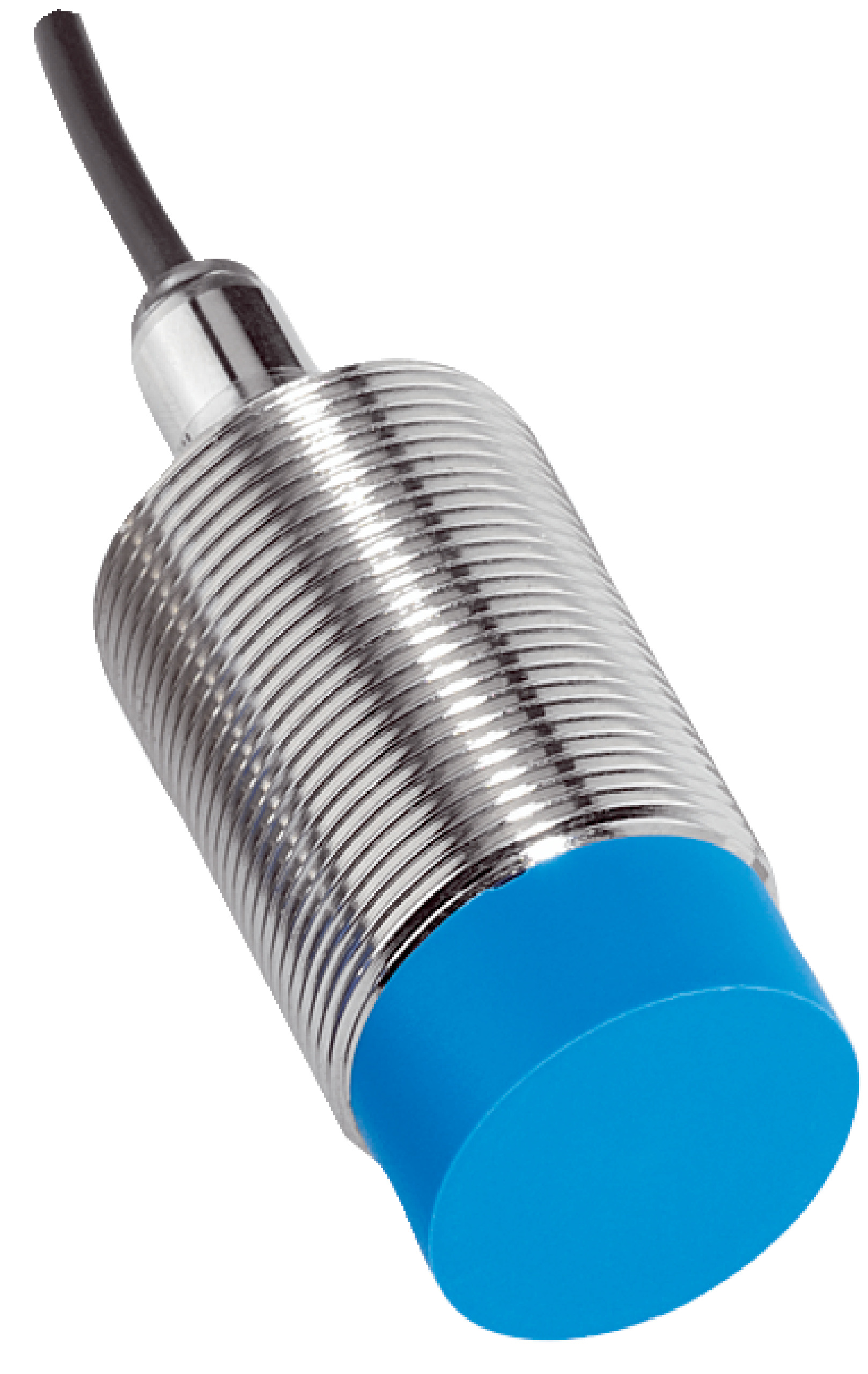

Inductive Proximity Sensor M30 | PNP Output | IP67 Rated | 38mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP output and a robust IP67 rated enclosure. With a 38mm sensing range and a high switching frequency of 100 Hz, this sensor is perfect for non-contact switching in harsh environments, ensuring durability and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 100 Hz
- Switching output: PNP, normally open
- Connection type: 3-wire cable, 2 m length
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Ambient operating temperature: -25 °C to +75 °C
- Shock resistance: 30 g, 11 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- M30 x 1.5 thread size with 38 mm sensing range
- Non-flush installation type
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Cable connection, 3-wire, 2 meters long
- High switching frequency of 100 Hz
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and maintenance waste
- Durable IP67 rated housing extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-38NPSZW2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
