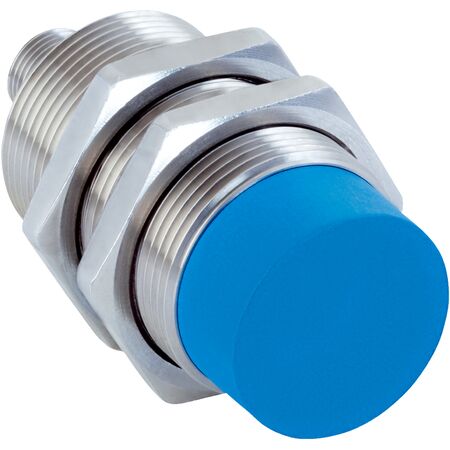

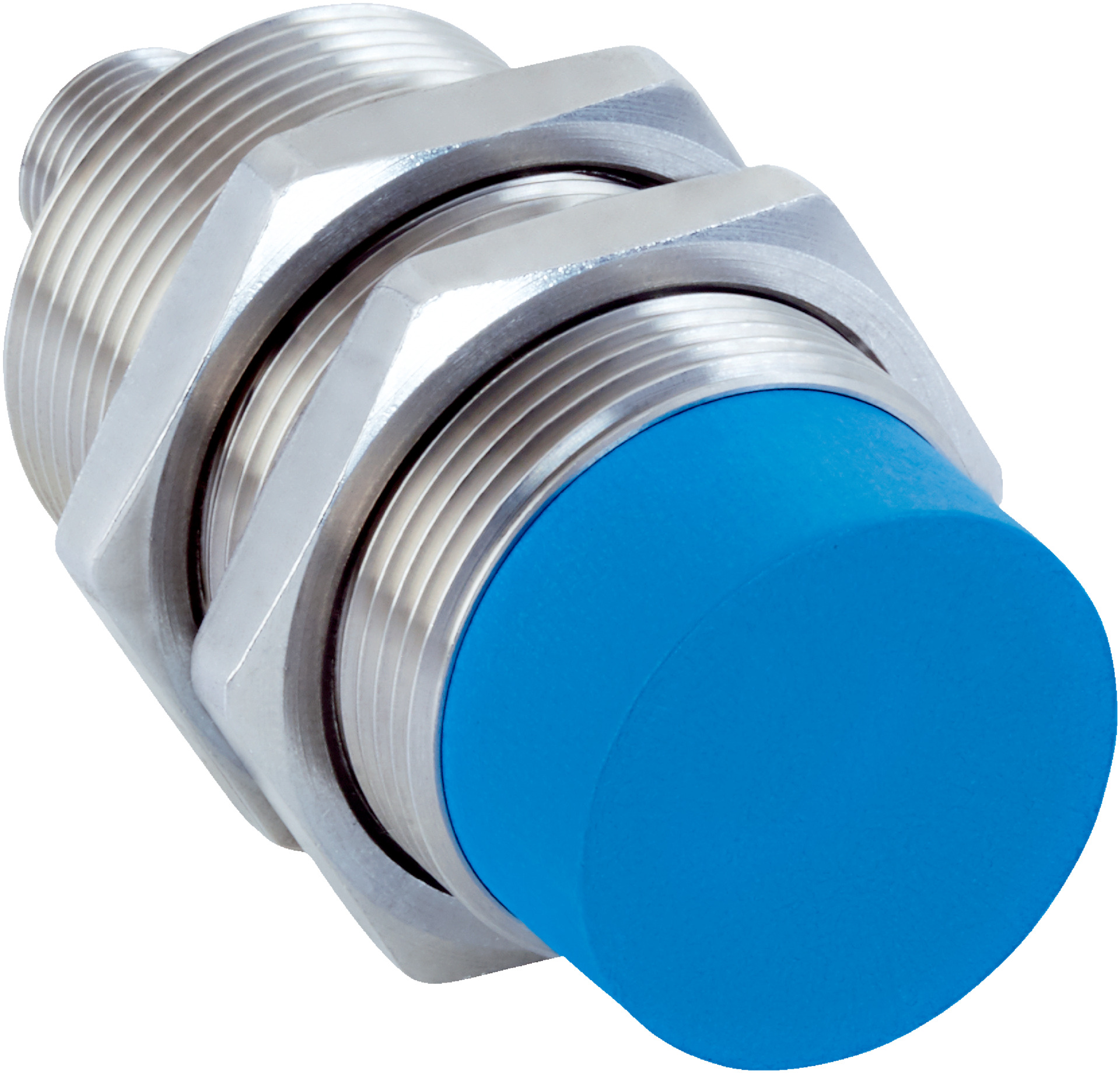

Inductive Proximity Sensor M30 | PNP Output | IP68 Rated | Non-Flush Installation | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP normally open output and an IP68 rated enclosure for high protection against dust and water. With a sensing range of 50 mm and a robust nickel-plated brass housing, it's perfect for applications in zones with coolants and lubricants, ensuring durability and efficiency in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally open
- Switching frequency: 10 Hz
- Continuous current: ≤ 200 mA
- No load current: ≤ 50 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Protection class: III
- Enclosure rating: IP68
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Connection type: Male connector M12, 4-pin
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Thread size: M30 x 1.5
- Installation type: Non-flush
- Display: Yellow LED for output state, Green LED for stable on/off state
- Service interface: IO-Link
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 50 mm with safe sensing range of 40.5 mm
- Non-flush installation type
- Switching frequency of 10 Hz with PNP normally open output
- IP68 rated enclosure for high protection
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator for easy setup
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass with plastic sensing face
- Short-circuit and power-up pulse protection included
- IO-Link service interface for advanced diagnostics
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMX30-50NPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and sensing applications in harsh environments.
