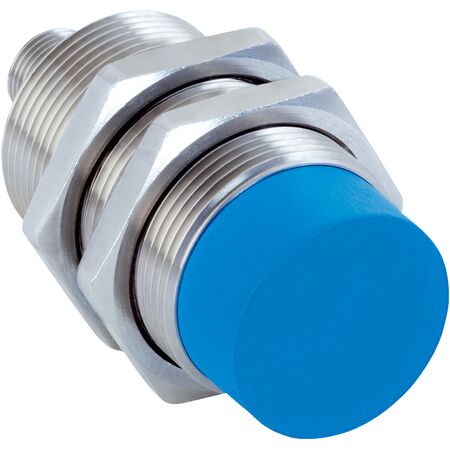

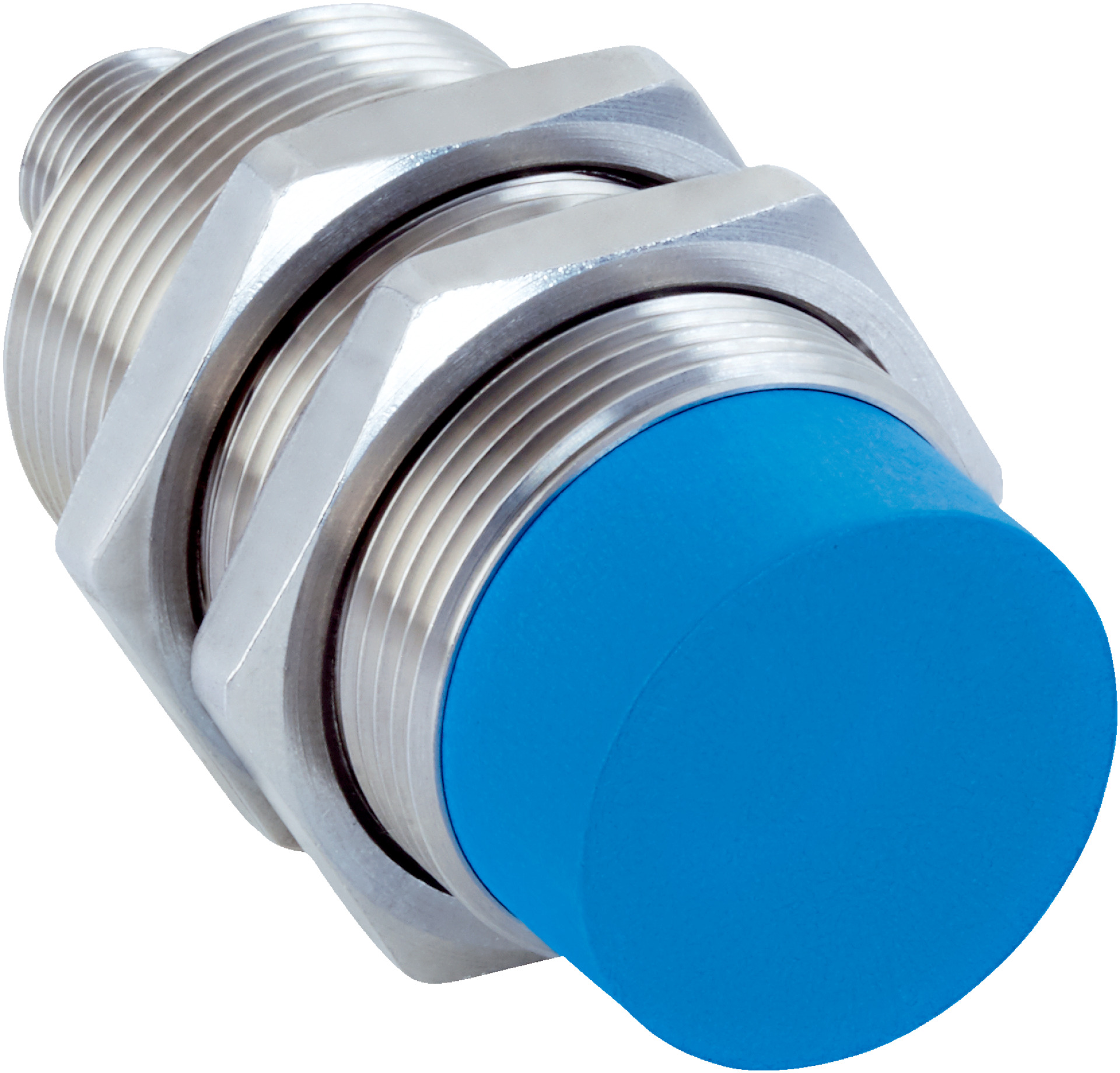

Inductive Proximity Sensor M30 | PNP NC Output | 20mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection of metal objects in industrial automation and mobile machinery applications. With a 20mm sensing range and PNP normally closed output, it operates effectively in harsh environments, featuring high protection ratings of IP67, IP68, and IP69K. Built to withstand extreme temperatures from -40 °C to +85 °C, this sensor ensures durability and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally closed (NC)
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 2 ms sinusoidal shocks
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Short-circuit and power-up pulse protection included
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- Switching frequency up to 500 Hz with PNP normally closed output
- Male connector M12, 4-pin connection type
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machinery sensing in harsh environments
- Zones with coolant and lubricant exposure
- Difficult application conditions requiring robust sensors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-20NPOZC0S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable sensing in harsh environments.
