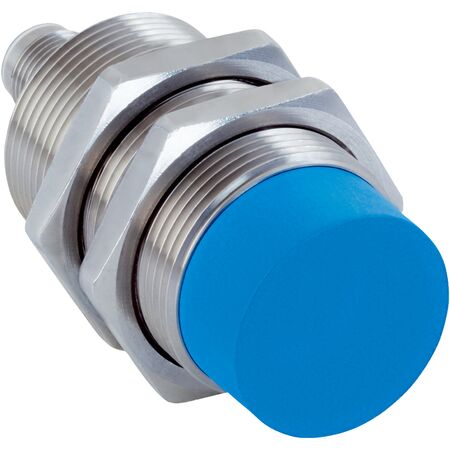

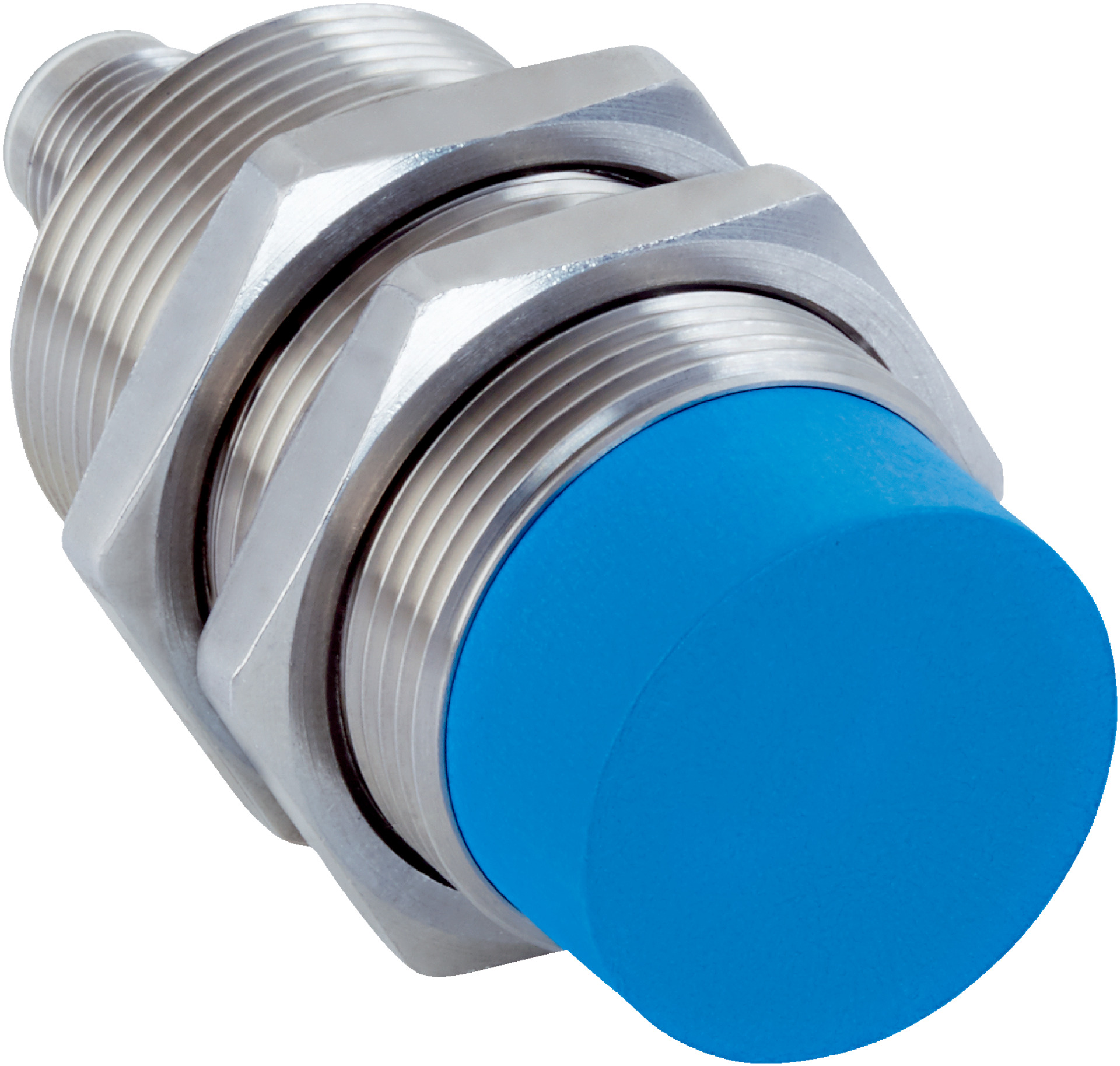

Inductive Proximity Sensor M30 | PNP NC Output | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a PNP NC output and a sensing range of 20 mm. With high protection ratings of IP68 and IP69K, this sensor is perfect for mobile machines and applications exposed to coolants and lubricants, ensuring reliable performance even in extreme temperatures from -40 °C to +100 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, 11 ms shocks in all directions
- Vibration resistance: 25 g peak (10 Hz to 2,000 Hz)
- EMC compliance with multiple standards including ECE-R10 and DIN ISO 11452-2
- Protection class III
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Thread length: 40.15 mm
- Tightening torque max: 100 Nm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- PNP switching output with NC function
- Male connector M12, 4-pin connection
- High protection rating IP68 and IP69K
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant with high EMC immunity
- Operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and wiring standards to ensure proper function and safety.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMS30-20NPOVC0S inductive proximity sensor is available for immediate purchase. Ideal for industrial automation, mobile machinery, and harsh environment sensing applications.
