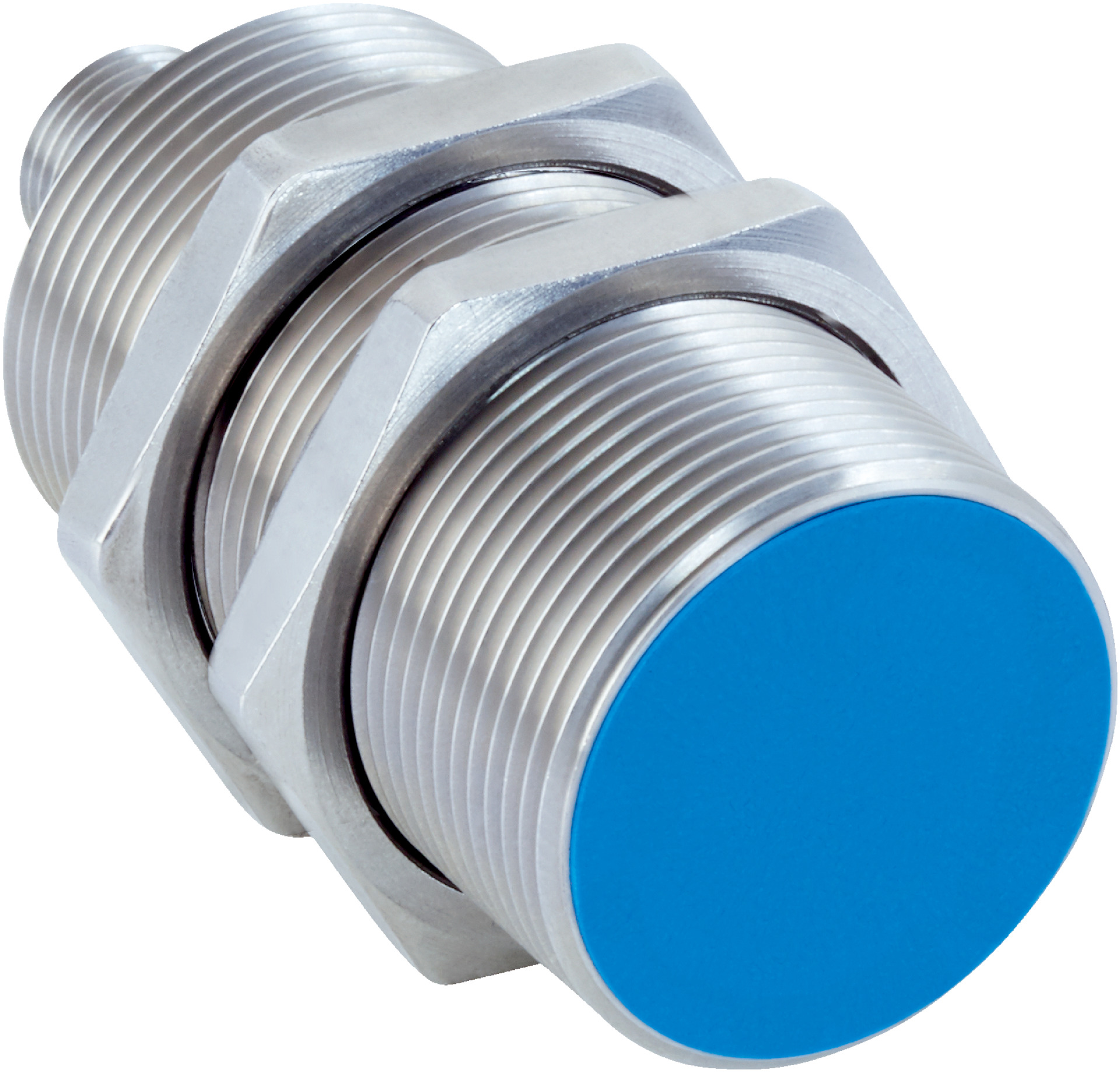

Inductive Proximity Sensor M30 | PNP NC Output | IP67/IP68/IP69K Rated | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation and mobile machinery applications. With a sensing range of 15 mm and a high switching frequency of 500 Hz, this sensor is built to withstand harsh environments, featuring IP67, IP68, and IP69K ratings for dust and water protection. Ideal for use in zones with coolant lubricants, it ensures durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Output type: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Protection rating: IP67, IP68, IP69K
- Shock resistance: 100 g, vibration resistance: 60 g peak
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Operating temperature: -40 °C to +85 °C
- Connection: Male M12, 4-pin connector
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 70.7mm x 70.7mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with nickel-plated brass material
- Flush installation type with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- High switching frequency of 500 Hz with PNP normally closed output
- Connection via male M12 4-pin connector
- IP67, IP68, and IP69K rated for protection against dust and water
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machinery sensing in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation with low current consumption
- Resistant to harsh environments reducing risk of failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-15BPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery sensing applications.
