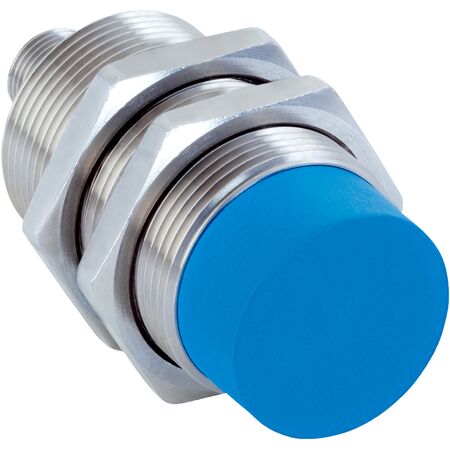

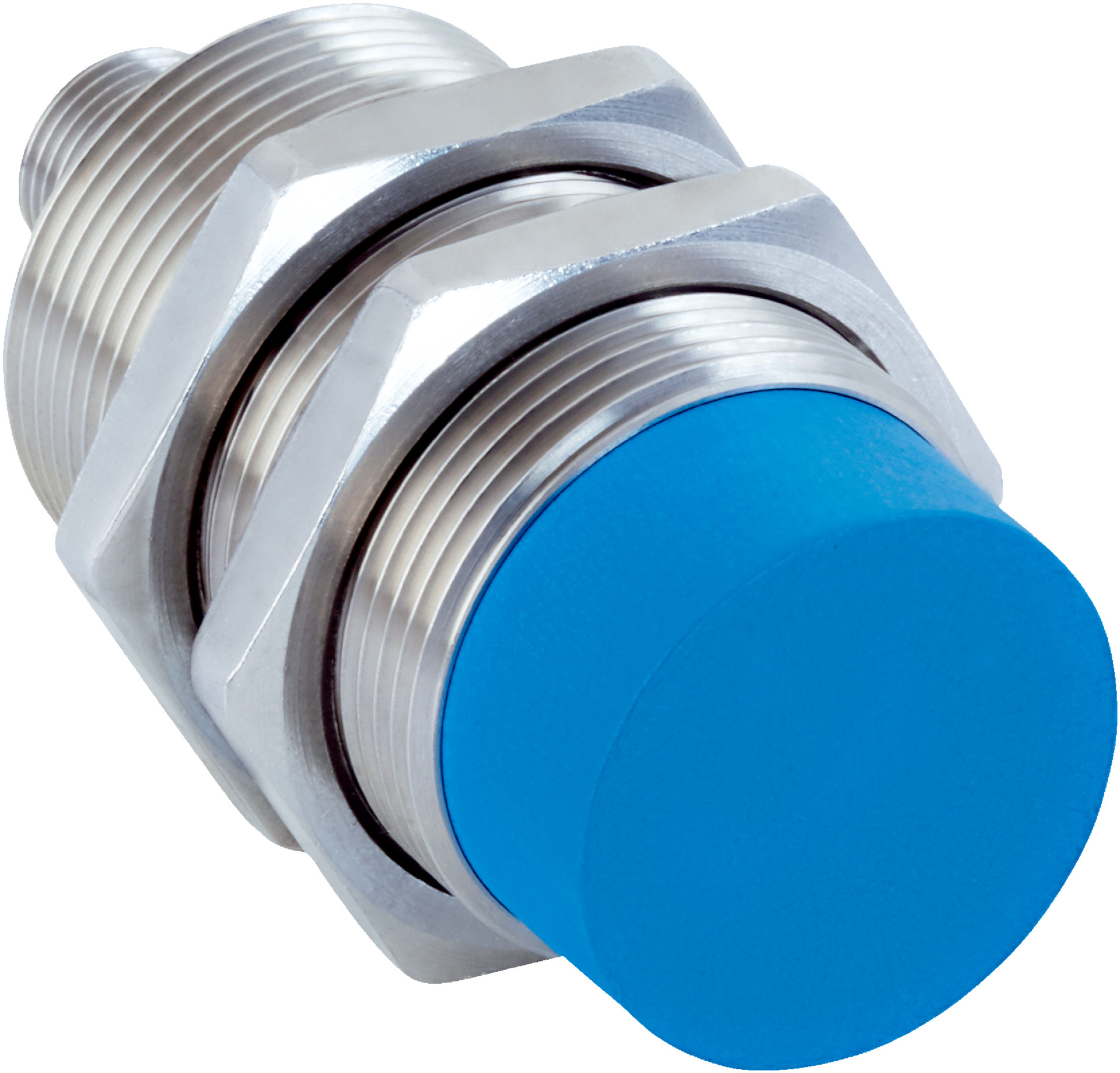

Inductive Proximity Sensor M30 | PNP NC Output | IP68 Rated | 50mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP normally closed output and a robust IP68 rated enclosure. With a sensing range of 50mm and a wide operating temperature from -25 °C to +75 °C, this sensor is perfect for environments with coolants and lubricants, ensuring durability and efficiency in your applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally closed
- Switching frequency: 10 Hz
- Continuous current: ≤ 200 mA
- No load current: ≤ 50 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10%
- Protection class: III
- Enclosure rating: IP68
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Thread size: M30 x 1.5
- Sensing range Sn: 50 mm
- Safe sensing range Sa: 40.5 mm
- Time delay before availability: ≤ 150 ms
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Display: Yellow LED for output state, Green LED for stable on/off state
- Connection type: Male connector M12, 4-pin
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with nickel-plated brass material
- Thread size M30 x 1.5 with 50 mm sensing range
- Non-flush installation type
- Switching frequency of 10 Hz with PNP normally closed output
- IP68 rated enclosure for harsh environments
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
- Wide operating temperature range from -25 °C to +75 °C
- IO-Link service interface for advanced diagnostics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMX30-50NPOZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications in harsh environments.
