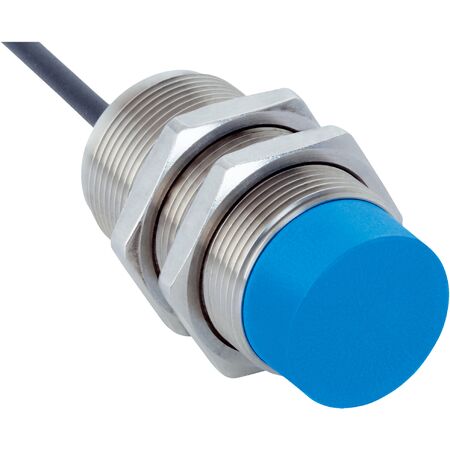

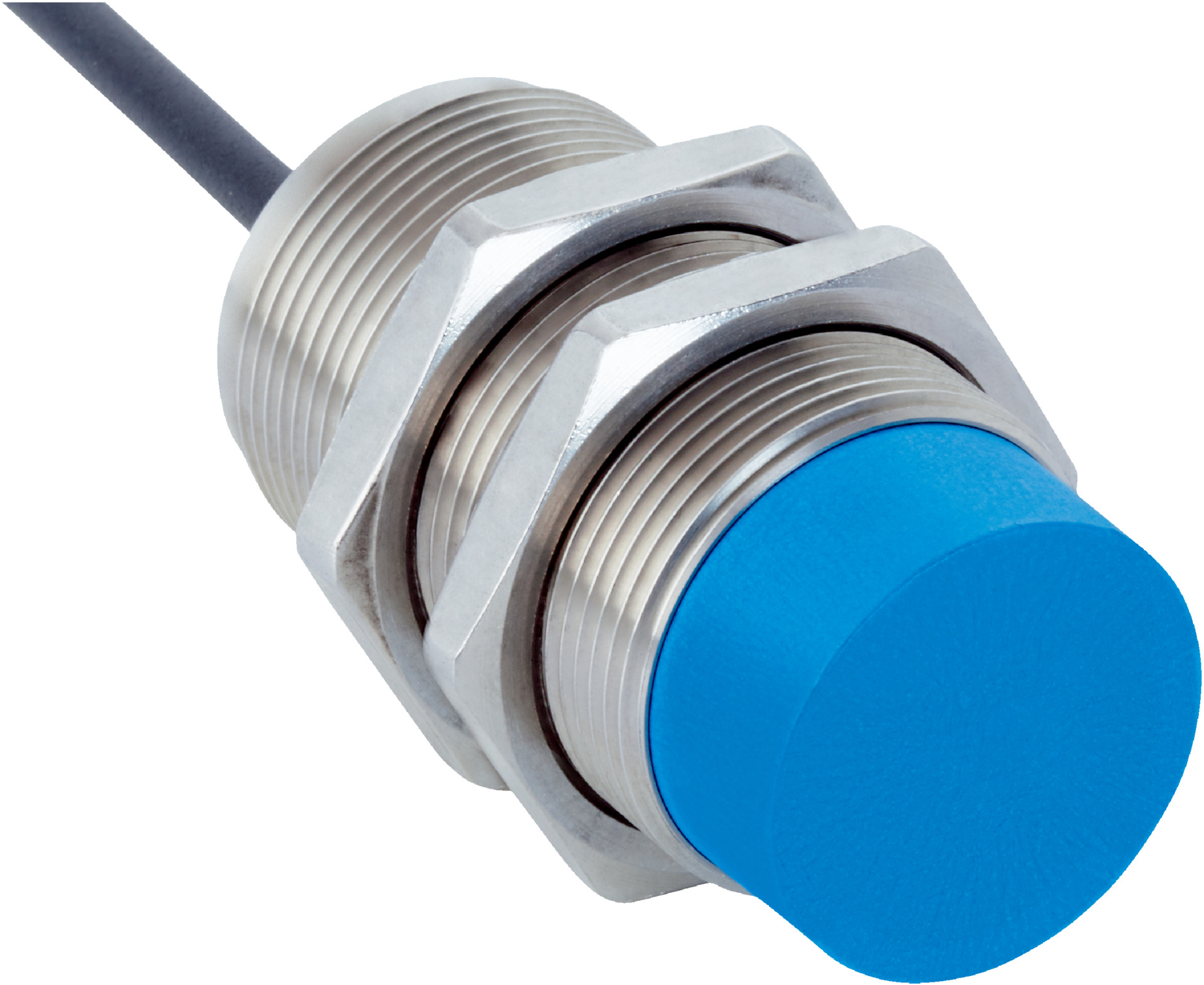

Inductive Proximity Sensor M30 | PNP NC Output | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a PNP NC output and an impressive IP68 and IP69K enclosure rating. With a sensing range of 20 mm and a high switching frequency of 500 Hz, it's perfect for mobile machines and applications exposed to coolants and lubricants. Built from durable stainless steel, this sensor ensures long-lasting performance and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Switching output: PNP NC
- Switching frequency: 500 Hz
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 5 mm
- Conductor size: 0.5 mm²
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Enclosure rating: IP68 and IP69K
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with PNP NC output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high durability
- Operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection in compliance with safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS30-20NPOVU2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
