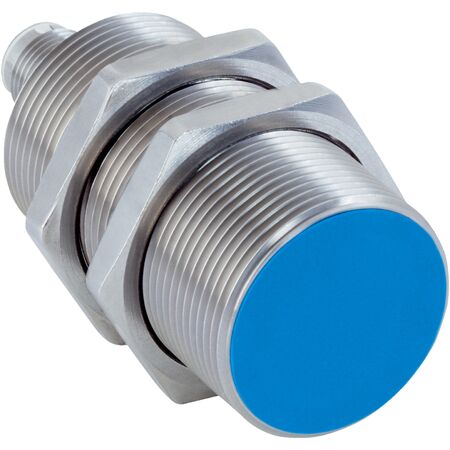

Inductive Proximity Sensor M30 | PNP Normally Closed | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in harsh environments, featuring a PNP normally closed output and a sensing range of 15 mm. With an IP68 and IP69K rating, it's perfect for mobile machines and areas exposed to coolants and lubricants, ensuring reliable performance even under extreme conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Switching output: PNP normally closed
- Electrical wiring: DC 3-wire
- Switching frequency: 300 Hz
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP68 and IP69K
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Protection class: III
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with stainless steel V2A material
- Thread size M30 x 1.5 with flush installation
- Sensing range of 15 mm and safe sensing range of 12.15 mm
- Switching frequency of 300 Hz with PNP normally closed output
- Connection via male M12 4-pin connector
- High protection rating IP68 and IP69K
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant with high EMC immunity
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper function and safety.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMS30-15BPOVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
