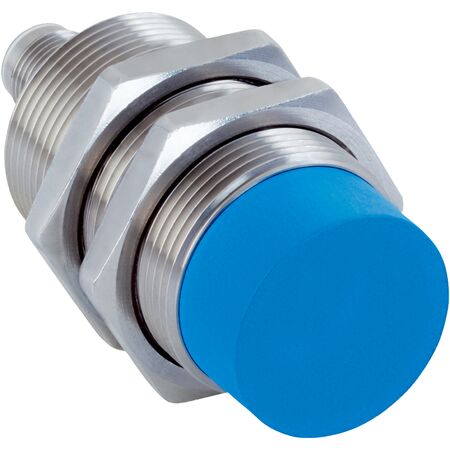

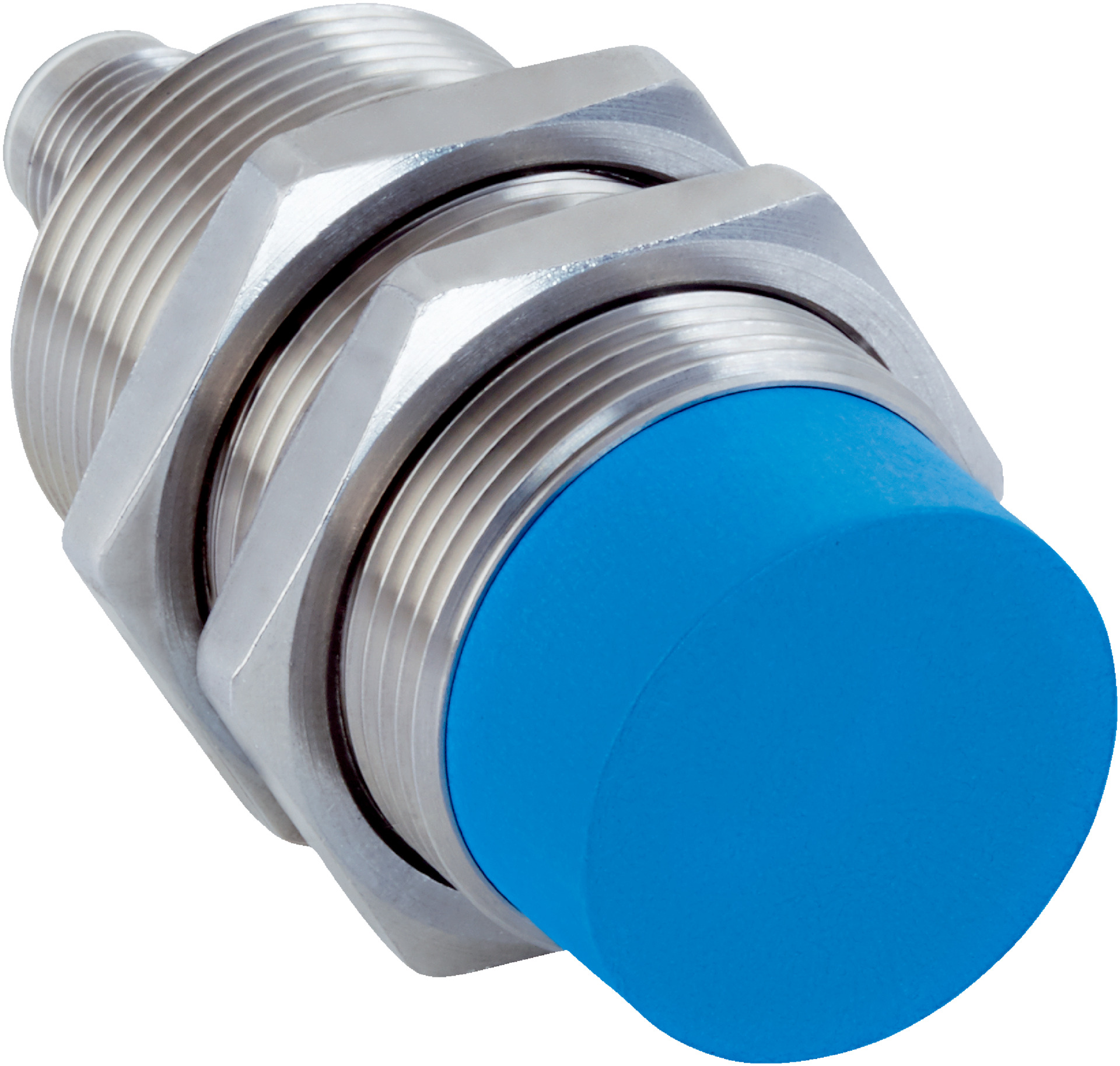

Inductive Proximity Sensor M30 | PNP Normally Open Output | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a 20mm sensing range and PNP normally open output. With an IP68 and IP69K rated enclosure, it withstands harsh conditions, making it ideal for mobile machines and applications involving coolants and lubricants. Built for durability, this sensor ensures reliable performance even in extreme temperatures from -40°C to +100°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Connection type: Male connector M12, 4-pin
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Ambient operating temperature: -40°C to +100°C
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- Short-circuit and power-up pulse protection included
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- MTTFD: 1,196 years
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- High switching frequency of 500 Hz with PNP NO output
- IP68 and IP69K rated enclosure for harsh environments
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant with wide ambient operating temperature range (-40°C to +100°C)
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMS30-20NPSVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
