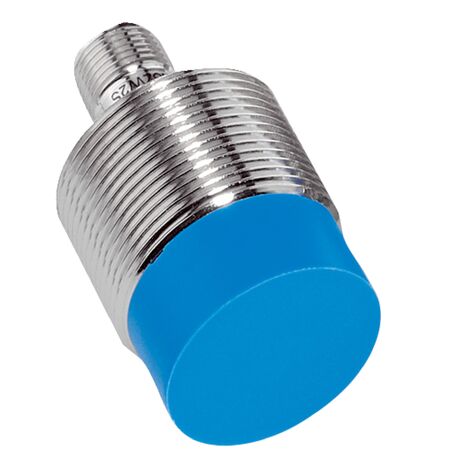

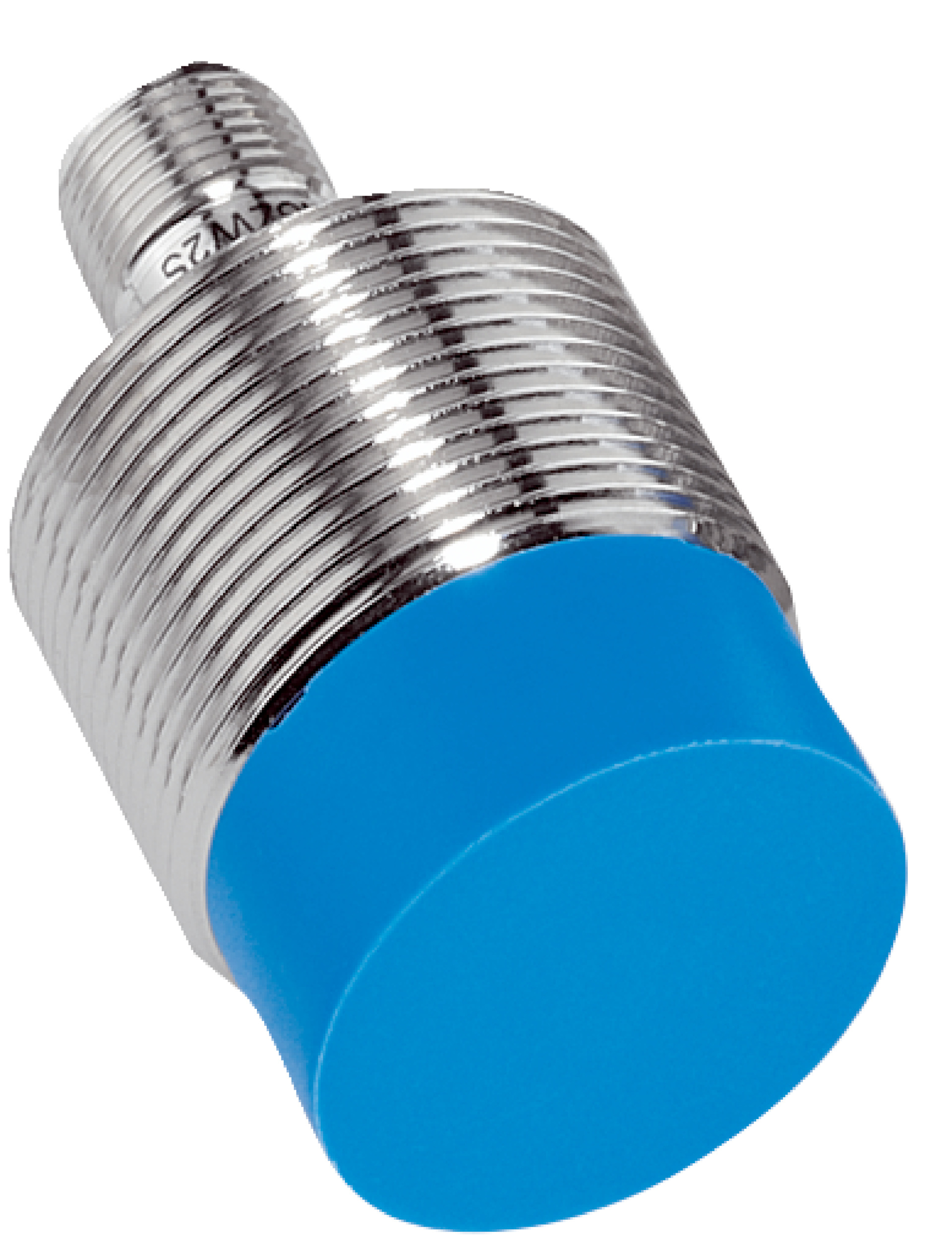

Inductive Proximity Sensor M30 | PNP Normally Open | IP67 Rated | 20mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP normally open output and a sensing range of 20 mm. With an IP67 enclosure rating, it offers excellent dust and water protection, making it ideal for manufacturing lines and machinery applications. Built for durability, this sensor ensures long-lasting performance with minimal mechanical wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | PNP Normally Open | IP67 Rated | 20mm Sensing Range | by SICK
Brand: SICK
SKU: 1041045
Alternatively Known As: Inductive Proximity Sensor M30, PNP Proximity Sensor, Non-flush Inductive Sensor, SICK IME30 Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Operating temperature range: -25 °C to +75 °C
- Thread length: 22 mm
- Housing length: 52 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.15 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- PNP normally open switching output
- Connection via male M12 4-pin connector
- High enclosure rating of IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Energy-efficient operation with low power consumption
- Durable IP67 rated housing minimizes environmental damage and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-20NPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
