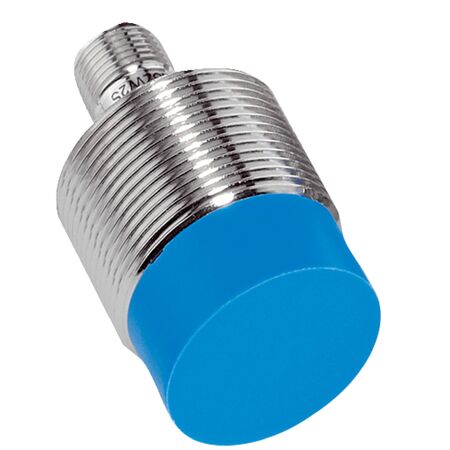

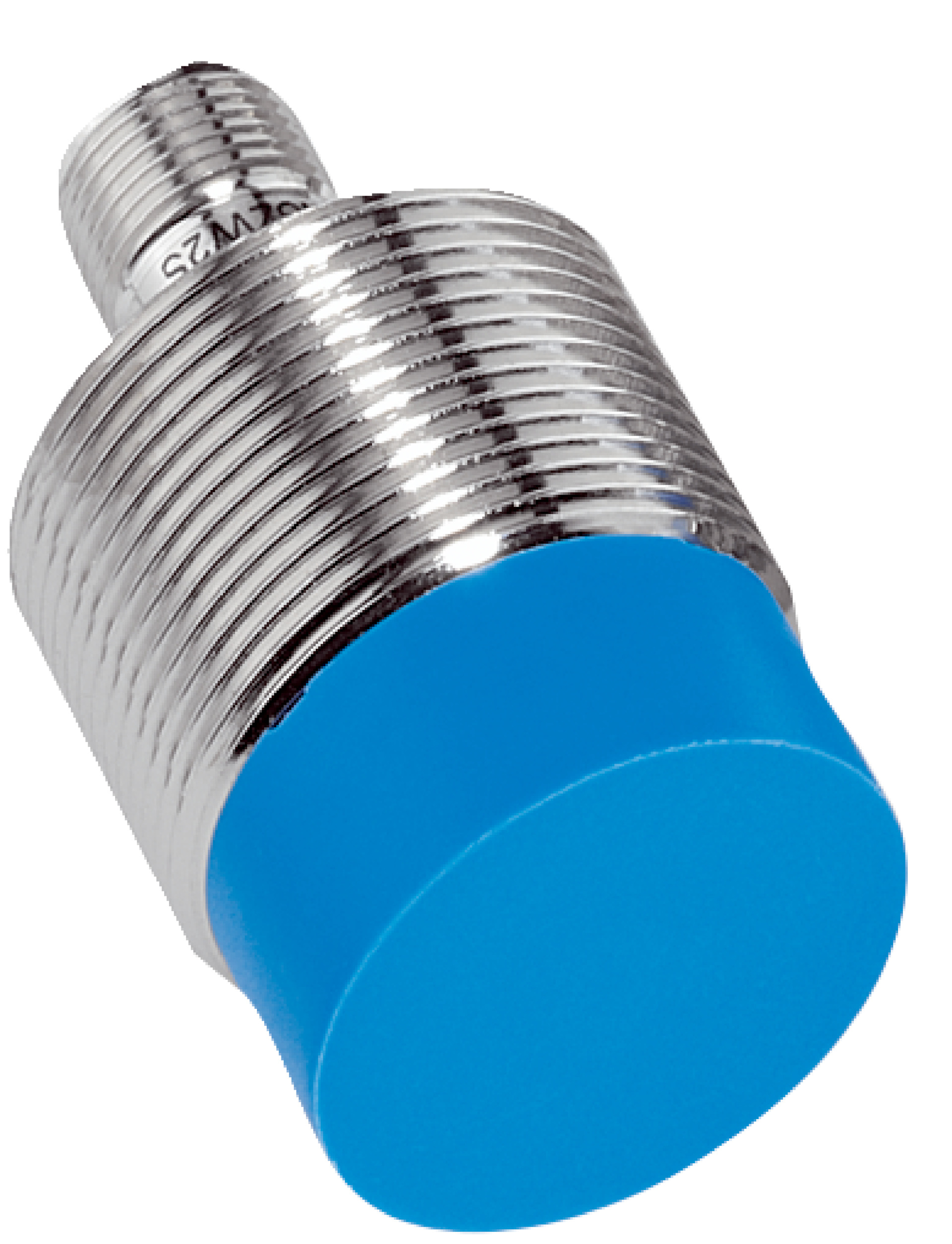

Inductive Proximity Sensor M30 | PNP Normally Open | IP67 Rated | 38mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP normally open output and a sensing range of 38 mm. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for non-contact switching in machinery and position sensing in manufacturing lines, ensuring durability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open (NO)
- Switching frequency: 100 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Voltage drop: ≤ 2 V
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 22 mm
- Housing length: 52 mm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with triple sensing range
- Sensing range of 38 mm and safe sensing range of 30.78 mm
- Switching frequency up to 100 Hz with PNP normally open output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Safety and control systems requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Energy-efficient DC 3-wire electrical wiring minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-38NPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications.
