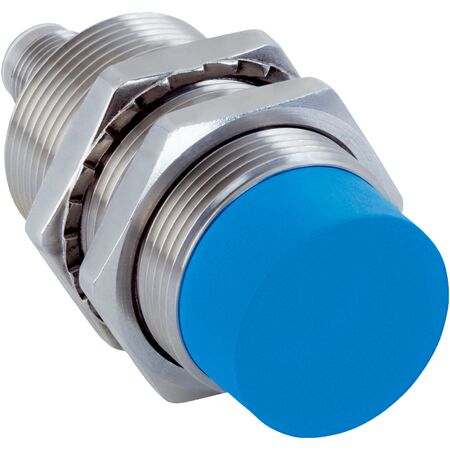

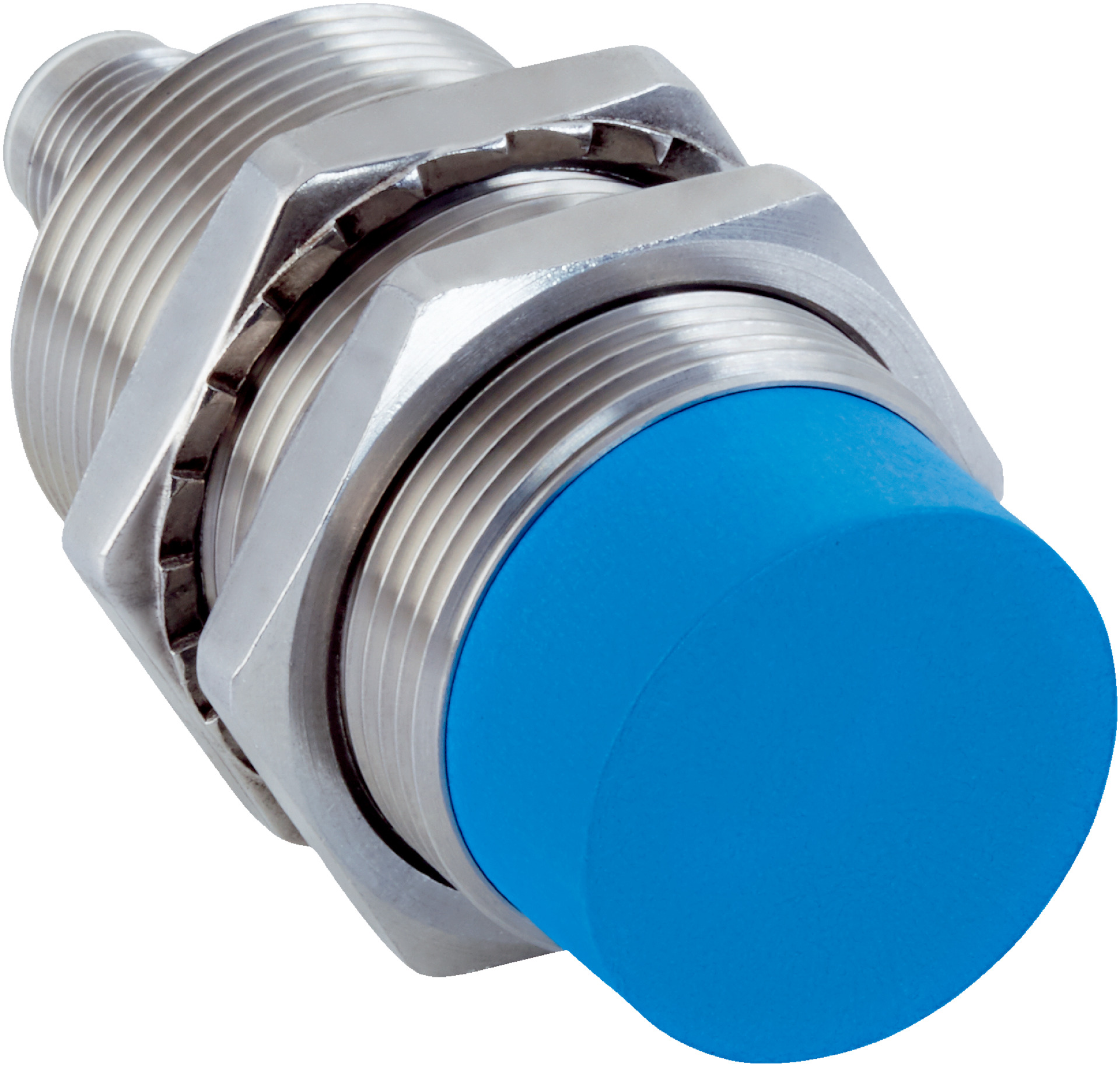

Inductive Proximity Sensor M30 | PNP Normally Open Output | IP67 Rated | ATEX Certified | by SICK
Inductive proximity sensor M30 designed for reliable sensing in harsh environments, featuring a PNP normally open output and IP67 enclosure rating. Ideal for applications in zones with coolants and lubricants, this sensor operates within a temperature range of -20 °C to +95 °C, ensuring durability and performance in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | PNP Normally Open Output | IP67 Rated | ATEX Certified | by SICK
Brand: SICK
SKU: 1099574
Alternatively Known As: Inductive Proximity Sensor M30, PNP Proximity Sensor, IO-Link Proximity Sensor, ATEX Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: –20 °C to +95 °C
- ATEX marking: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.3 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with PNP NO output
- Male connector M12, 4-pin connection
- Resistant against coolant lubricants
- Visual adjustment indicator and IO-Link communication
- Temperature resistance from –20 °C to +95 °C
- ATEX certified for explosive atmospheres
- Shock and vibration resistant
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards, especially for use in explosive atmospheres.
Applications
- Zones with coolants and lubricants
- Mobile machines
- Difficult application conditions
- Explosive areas
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMB30-20NPSVC0SX02 Inductive Proximity Sensor is available for immediate purchase. Ideal for industrial applications requiring reliable sensing in harsh and explosive environments.
