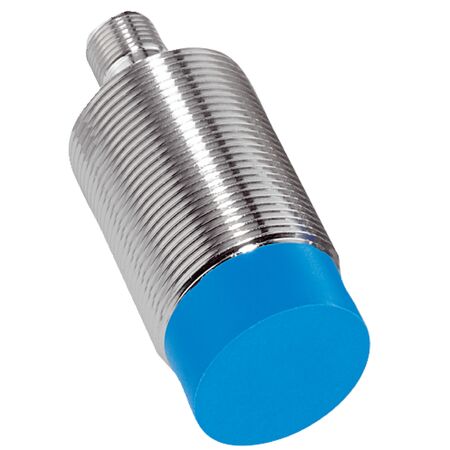

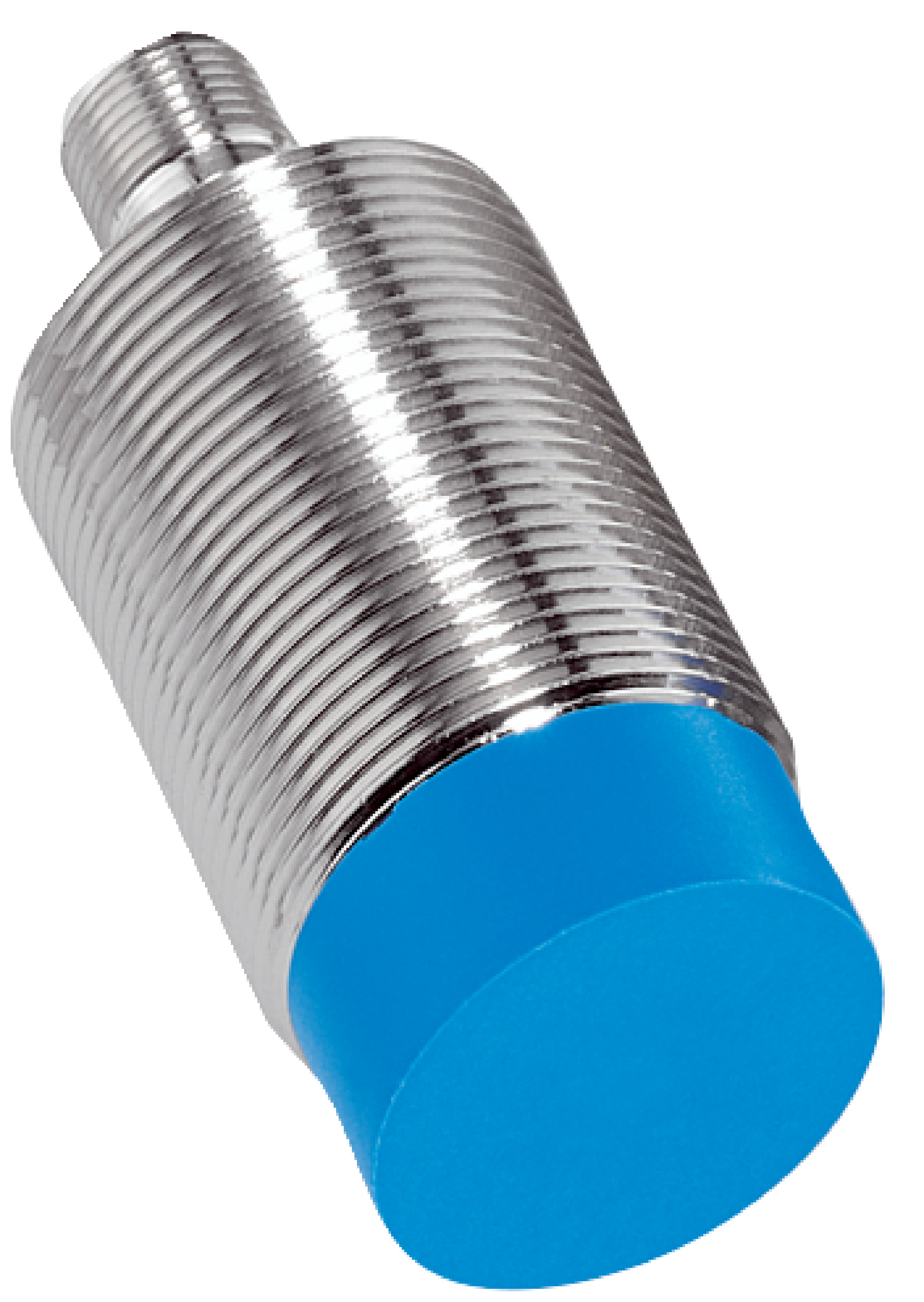

Inductive Proximity Sensor M30 | PNP Normally Open Output | IP67 Enclosure | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a PNP normally open output and an IP67 enclosure for dust and water protection. With a sensing range of 38 mm and a wide operating temperature from -25 °C to +75 °C, it's perfect for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 90 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, Normally Open (NO)
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 41 mm
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with non-flush installation type
- Sensing range of 38 mm with safe sensing range of 30.78 mm
- Switching frequency of 100 Hz with PNP NO output
- Connection via male M12 4-pin connector
- Enclosure rating IP67 for dust and water protection
- Triple sensing range feature
- Short-circuit and power-up pulse protection
- Shock and vibration resistance up to 30 g
- Wide ambient operating temperature from -25 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems and robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-38NPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
