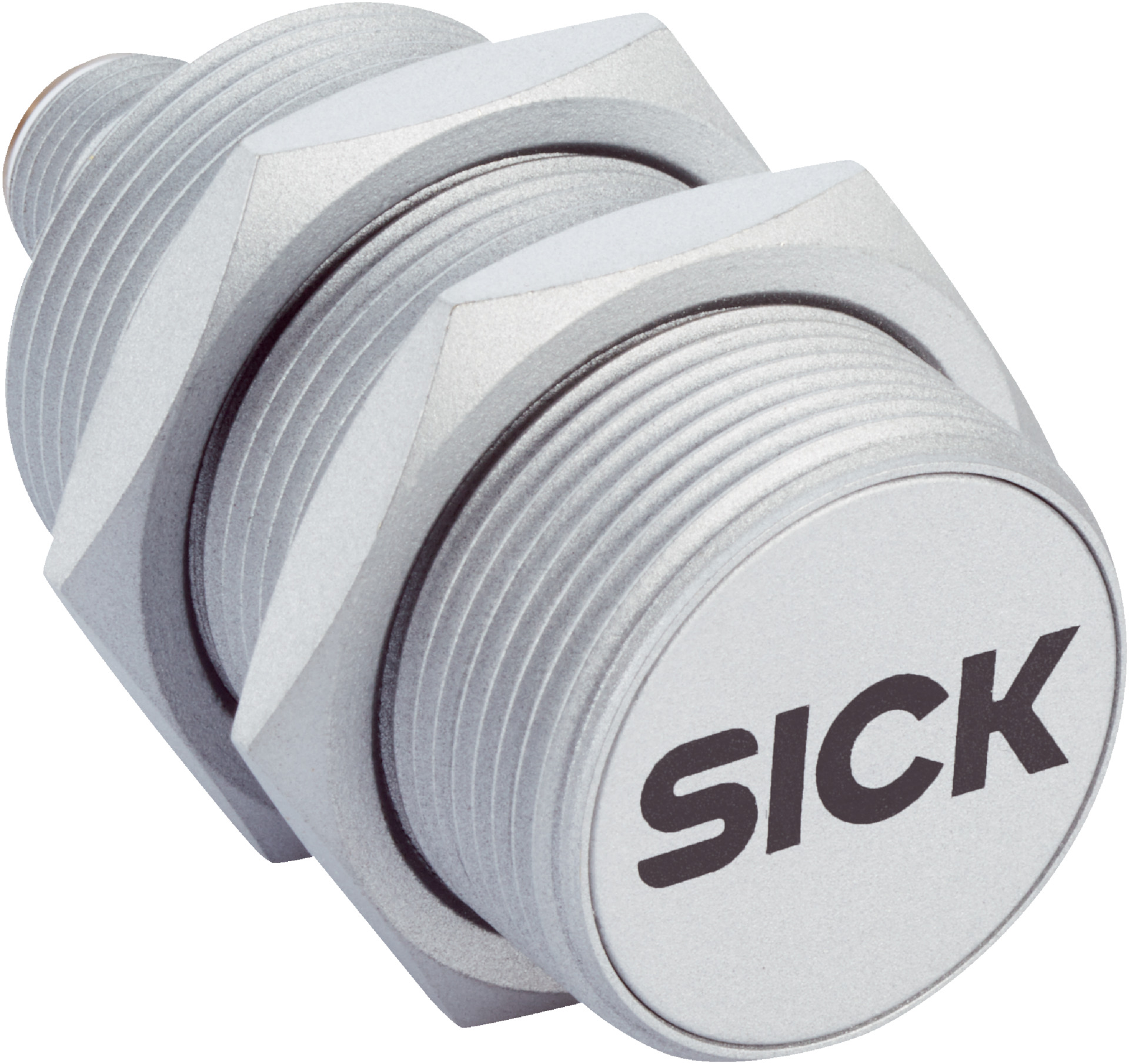

Inductive Proximity Sensor M30 | PTFE Coated Brass | 15mm Sensing Range | IP68 Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 15 mm and a robust PTFE coated brass housing. With a high enclosure rating of IP68, it withstands harsh environments, making it ideal for welding and manufacturing applications. This sensor ensures accurate performance with a PNP switching output and is magnetic-field-resistant, perfect for challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 1.8 V
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ ±10% to ±15%
- Continuous current: ≤ 200 mA
- No load current: ≤ 15 mA
- Off-state current: ≤ 0.1 mA
- Short-circuit protection included
- Magnetic field strength tolerance: ≤ 100 mT
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature: -30 °C to +85 °C
- Housing material: PTFE coated brass
- Sensing face material: Plastic with PTFE coating
- Protection class: II
- Switching output: PNP, normally open
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 62mm x 62mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with PTFE coated brass
- Thread size M30 x 1.5 with flush installation
- Sensing range of 15 mm with safe sensing range of 12.1 mm
- Switching frequency up to 1,000 Hz
- PNP switching output with normally open function
- Connection via male M12 4-pin connector
- High enclosure rating IP68 for harsh environments
- Magnetic-field-resistant with reduction factor 1
- Includes mounting nut and washers with PTFE coating
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Welding range and difficult application conditions
- Magnetic-field-resistant sensing in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

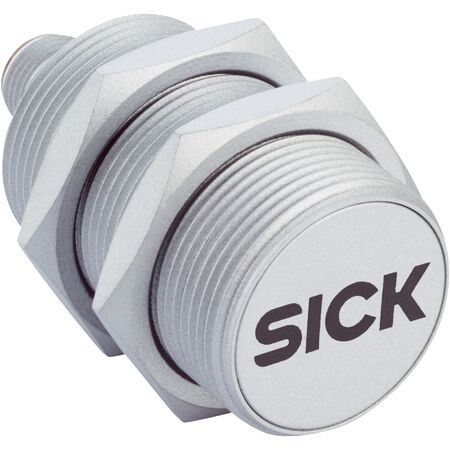

The SICK IMR30-15BPSTC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
