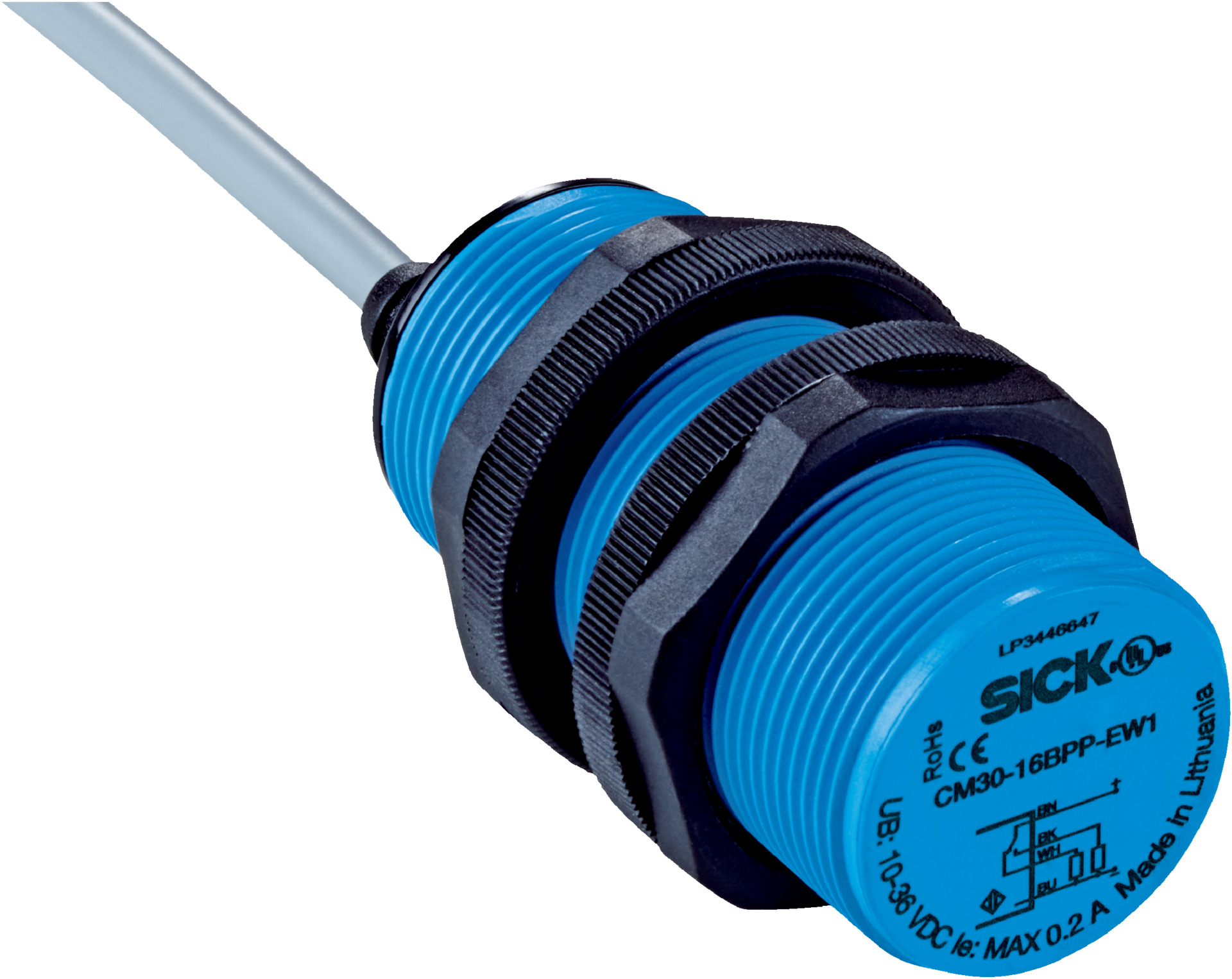

Inductive Proximity Sensor M30 | Sensing Range up to 16mm | IP67, IP68, IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of up to 16mm and a robust IP67, IP68, and IP69K rated enclosure. Ideal for manufacturing process control and safety monitoring, this sensor operates efficiently in harsh environments with a wide temperature range of -30°C to +85°C, ensuring durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2 V DC
- Switching output: PNP, complementary
- Switching frequency: 50 Hz
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Time delay before availability: ≤ 200 ms
- Cable: 4-wire, 2 m PVC, 0.34 mm² conductor size, 5.2 mm diameter
- Housing material: Plastic, PBT
- Protection rating: IP67, IP68, IP69K
- Operating temperature: -30°C to +85°C
- Thread length: 59.5 mm
- Tightening torque max: ≤ 7.5 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance according to EN 60068
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 16 mm
- Flush installation type
- Switching frequency of 50 Hz
- PNP switching output with complementary function
- Wire configurable output characteristic
- IP67, IP68, and IP69K rated enclosure for harsh environments
- Includes mounting nuts and screwdriver for potentiometer adjustment
- Short-circuit and power-up pulse protection
- Shock and vibration resistant according to EN 60068
- Wide ambient operating temperature range from -30°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor setup to ensure proper configuration and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

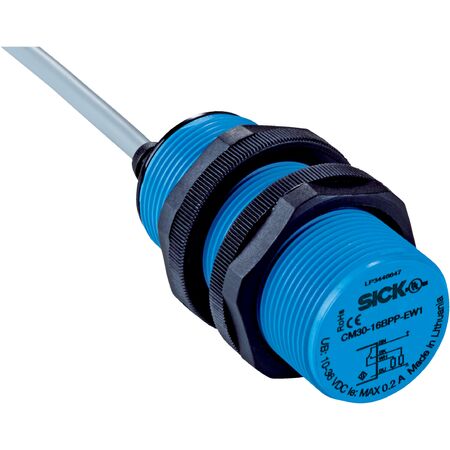

The SICK CM30-16BPP-EW1 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
