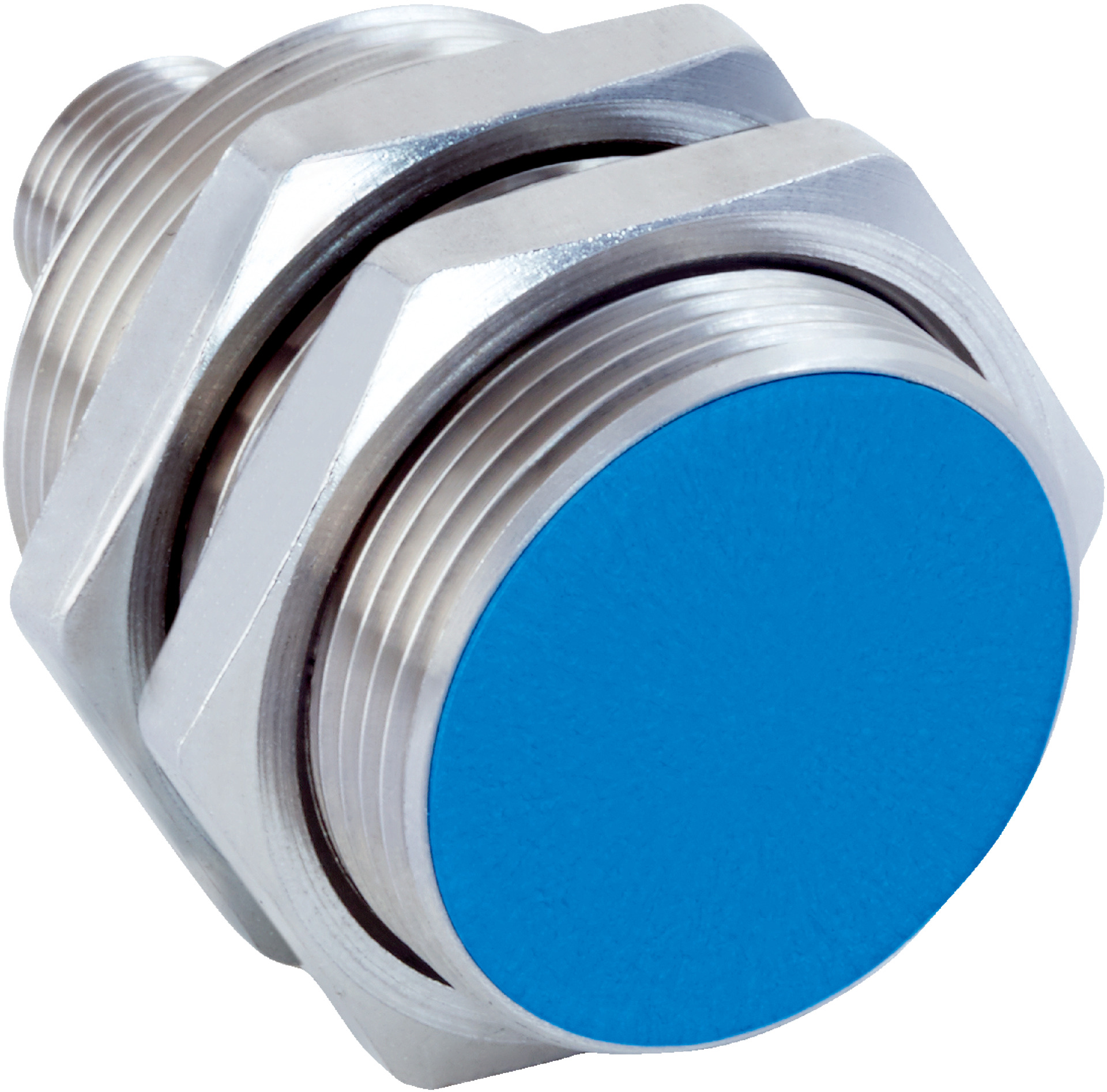

Inductive Proximity Sensor M30 | Short-body Design | 15mm Sensing Range | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for industrial automation, featuring a short-body design with a 15mm sensing range and a high switching frequency of 500 Hz. Built for harsh environments, it boasts an IP67/IP68/IP69K rating, making it ideal for detecting metal objects in zones with coolants and lubricants. With a robust nickel-plated brass housing and plastic LCP sensing face, this sensor ensures reliability and durability in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- Sensing range (Sn): 15 mm
- Safe sensing range (Sa): 12.15 mm
- Electrical wiring: DC 3-wire
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g, 2 ms sinusoidal shocks
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +85 °C
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 50.7mm x 50.7mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with sensing range of 15 mm
- High switching frequency of 500 Hz with PNP NO output
- Male connector M12, 4-pin connection type
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Nickel-plated brass housing with plastic LCP sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-15BPSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
