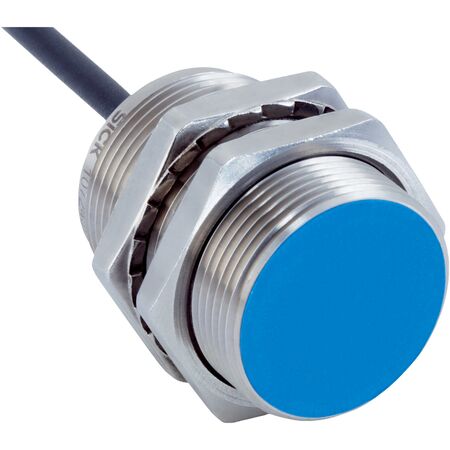

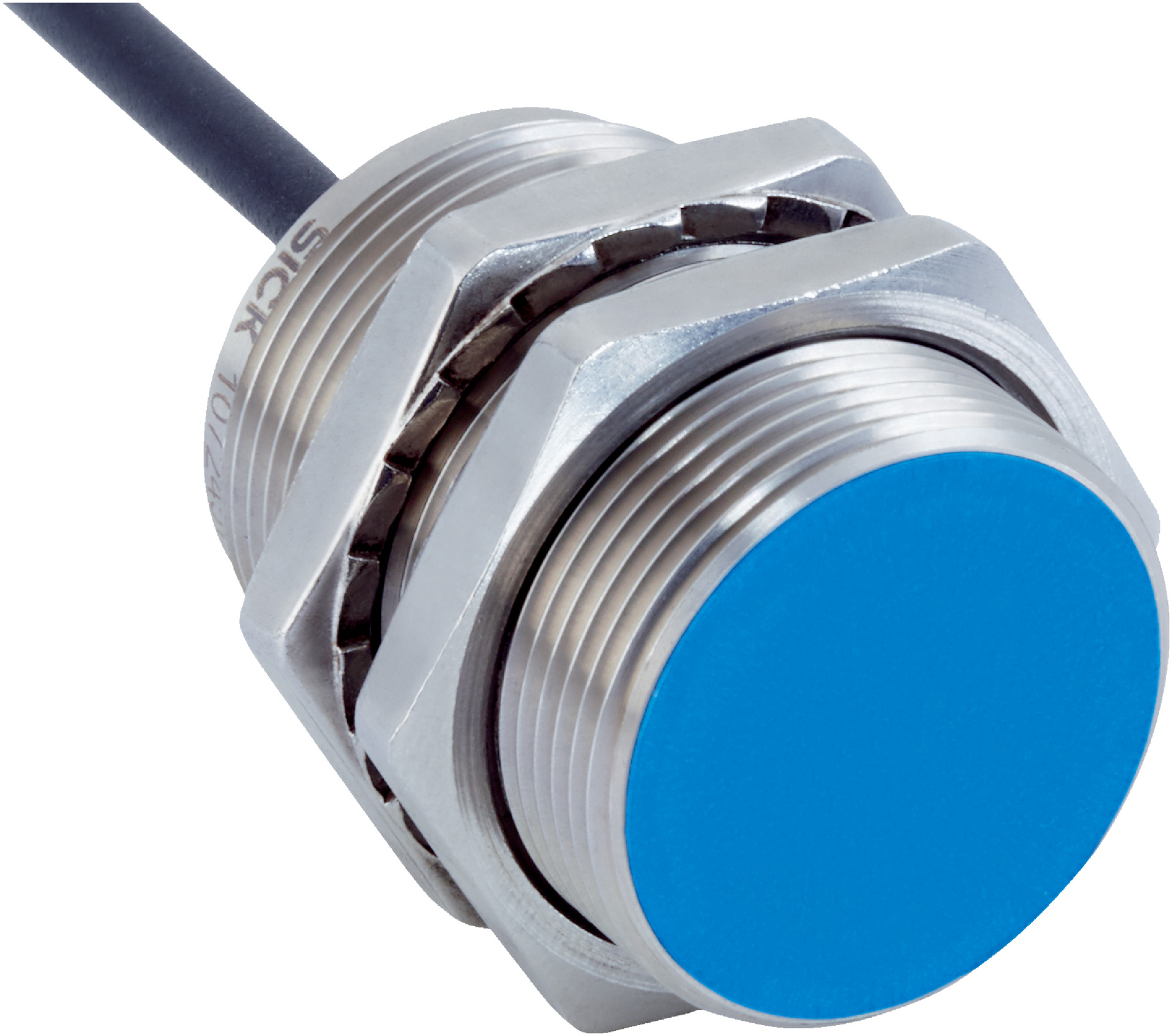

Inductive Proximity Sensor M30 | Short-Body Housing | 15mm Sensing Range | 500Hz Switching Frequency | by SICK
Inductive proximity sensor M30 designed for industrial automation, featuring a short-body housing and a 15mm sensing range. With a high switching frequency of 500Hz and PNP normally closed output, it's perfect for detecting metal objects in harsh environments. Built to withstand coolants and lubricants, this sensor ensures reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | Short-Body Housing | 15mm Sensing Range | 500Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1072856
Alternatively Known As: Inductive Proximity Sensor M30, IMB30 Proximity Sensor, PNP Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: Ø 4.5 mm, conductor size 0.34 mm²
- Switching output: PNP normally closed
- Switching frequency: 500 Hz
- Protection class: III
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Thread length: 35 mm
- Housing length: 40 mm
- Tightening torque max: Typical 100 Nm
- Dimensions (H x L x W): 40mm x 75mm x 30mm
- Weight: 0.2 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- High switching frequency of 500 Hz
- PNP normally closed output with DC 3-wire electrical wiring
- Cable connection type with 2 m PUR cable
- IP68 and IP69K rated for protection against dust and high-pressure water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face made of plastic LCP
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB30-15BPOVU2K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable metal object detection.
