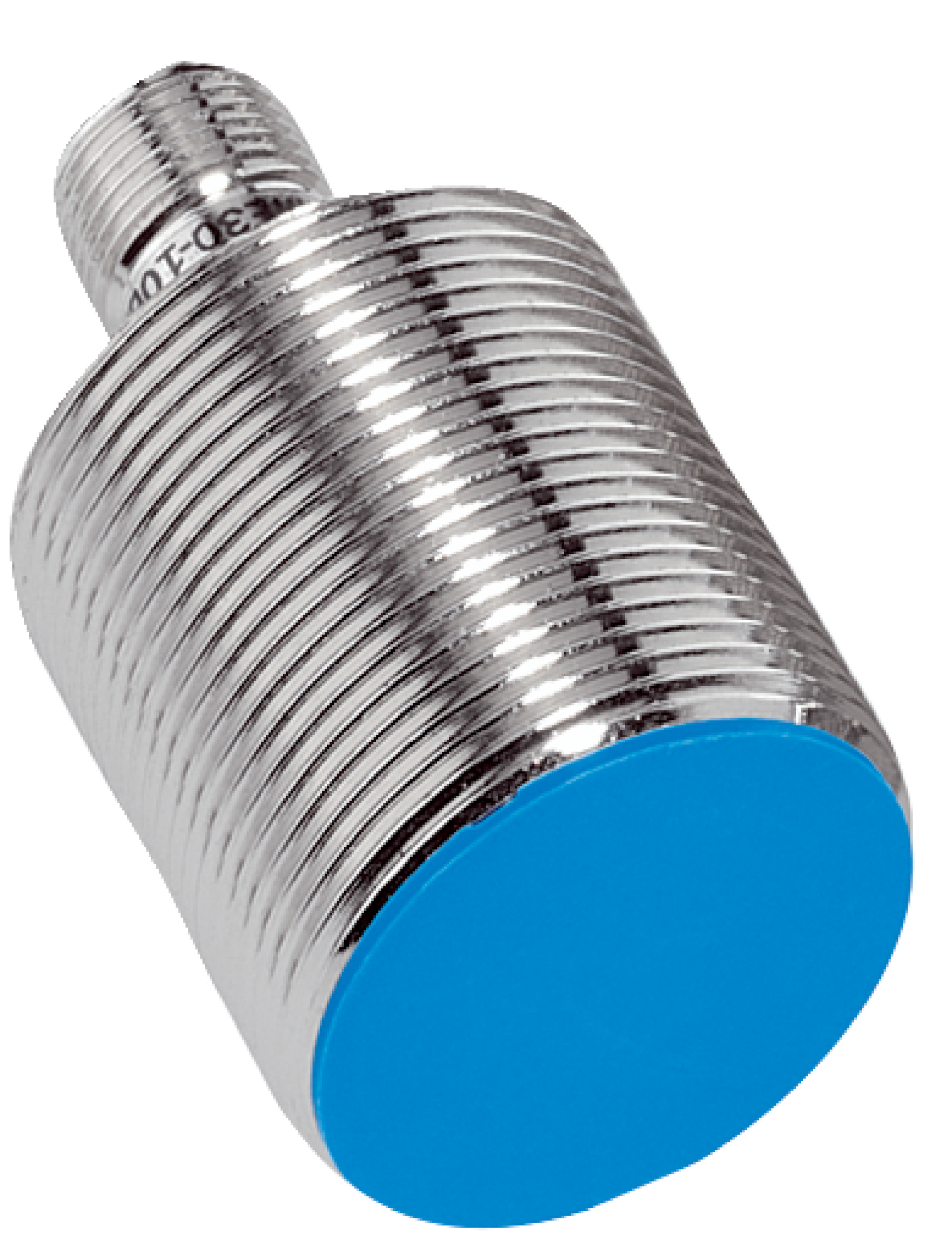

Inductive Proximity Sensor M30 | Short Body Design | 20mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a short body design and a sensing range of 20 mm. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for manufacturing lines and safety systems. This sensor is built for durability and efficiency, ensuring long service life and minimal environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +75 °C
- Storage temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 52 mm
- Thread length: 35 mm
- Maximum tightening torque: ≤ 70 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Quasi-flush installation type
- Switching frequency of 200 Hz
- NPN normally open switching output
- Connection via male M12 4-pin connector
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring reliable proximity sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

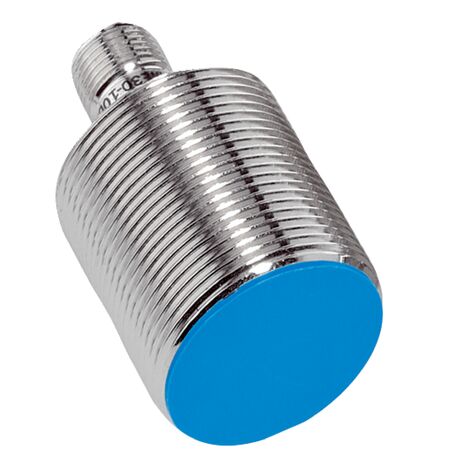

The SICK IME30-20BNSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
