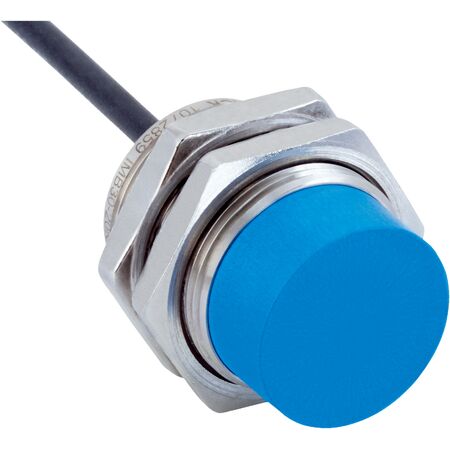

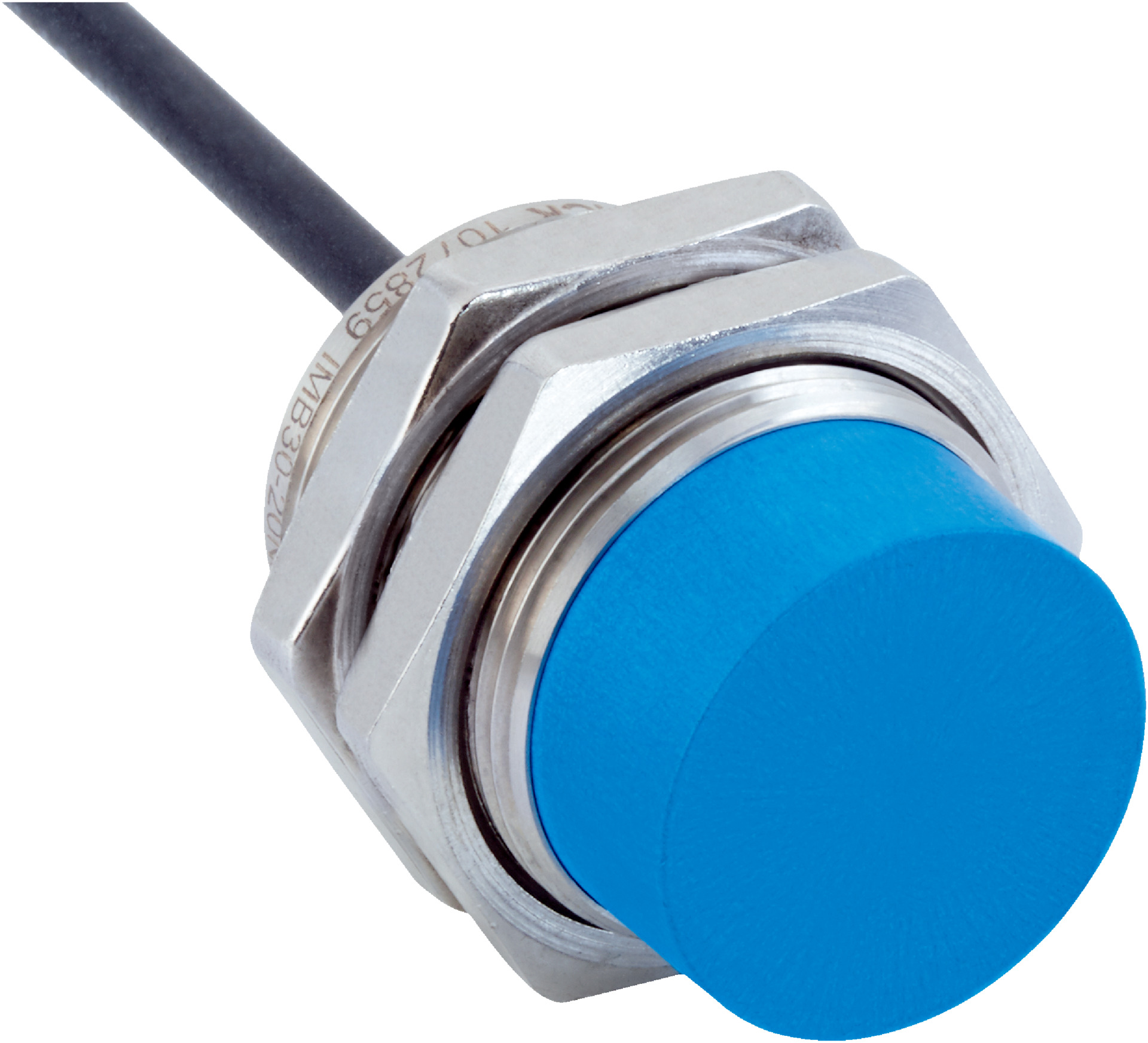

Inductive Proximity Sensor M30 | Short-Body Design | 20mm Sensing Range | PNP NO Output | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a short-body design and a sensing range of 20mm, it operates efficiently in harsh environments, featuring a high switching frequency of 500 Hz and PNP normally open output. Ideal for mobile machines and areas exposed to coolant and lubricants, this sensor ensures robust performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Electrical wiring: DC 3-wire
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter 3.9 mm
- Bending radius: > 5x cable diameter fixed, > 10x flexible
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 60 g
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Dimensions (H x L x W): 41mm x 41mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz with PNP NO output
- Cable connection, 3-wire, 2 m length with PUR cable
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Nickel-plated brass housing with plastic sensing face
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolant and lubricant exposure
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
- Resistant to harsh chemicals reduces environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-20NPSZU2K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
