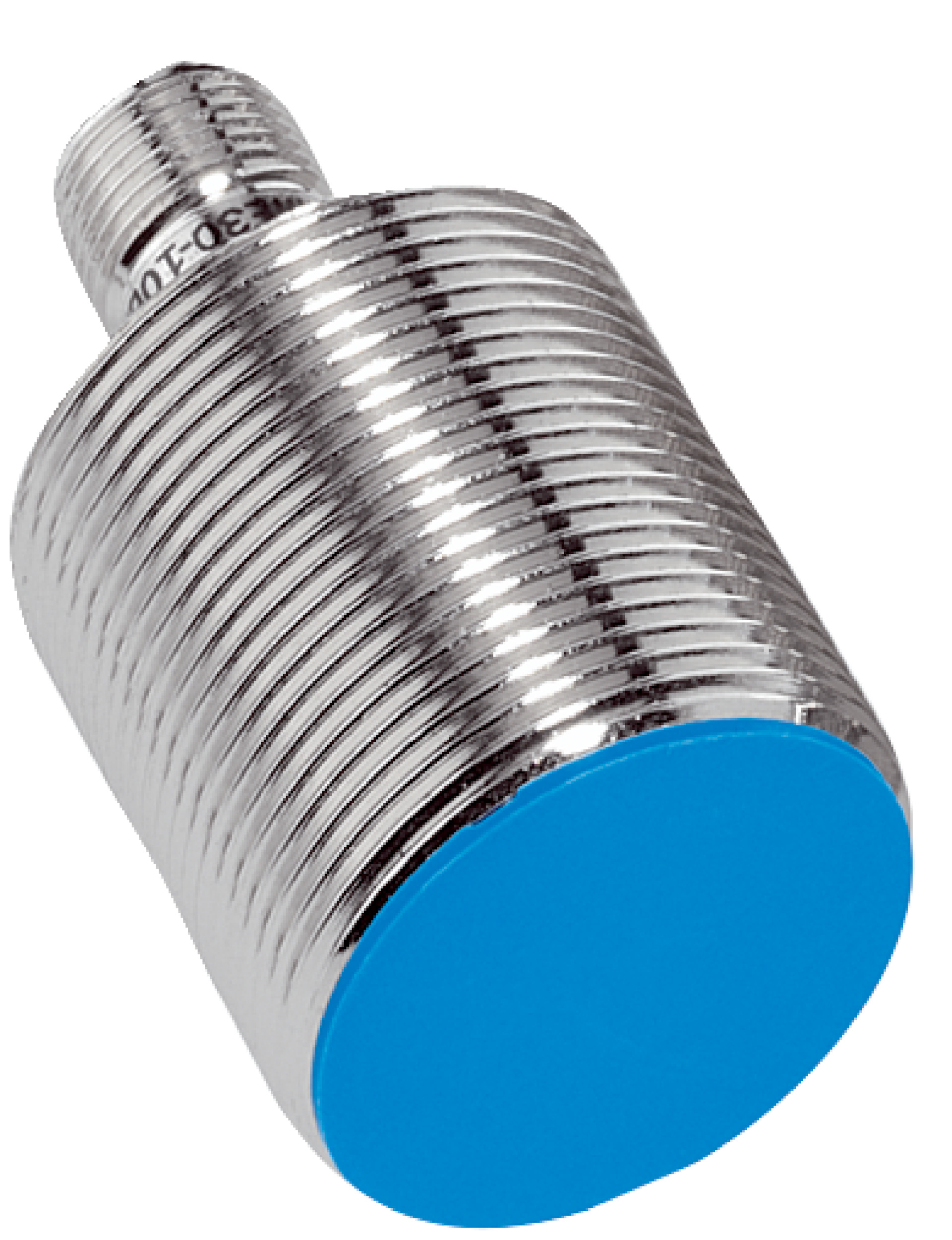

Inductive Proximity Sensor M30 | Short-Body Brass Housing | 10mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M30 is designed for precise object detection in industrial automation, featuring a 10mm sensing range and a robust IP67 rated enclosure for dust and water protection. With a high switching frequency of 500 Hz and flush installation type, it's perfect for seamless integration in manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | Short-Body Brass Housing | 10mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1041001
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Metal Sensor, PNP Proximity Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M30 x 1.5
- Diameter: 30 mm
- Sensing range Sn: 10 mm
- Safe sensing range Sa: 8.1 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +75°C
- Housing length: 52 mm
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Flush installation type for seamless integration
- High switching frequency of 500 Hz
- PNP switching output with NC output function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25°C to +75°C
- Brass nickel-plated housing with plastic PA 66 sensing face
- Includes mounting nuts (2x) for easy installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

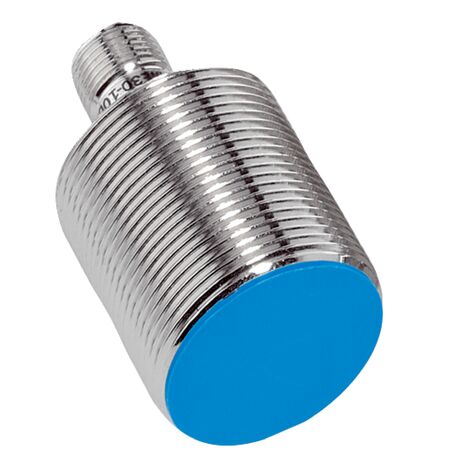

The SICK IME30-10BPOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
