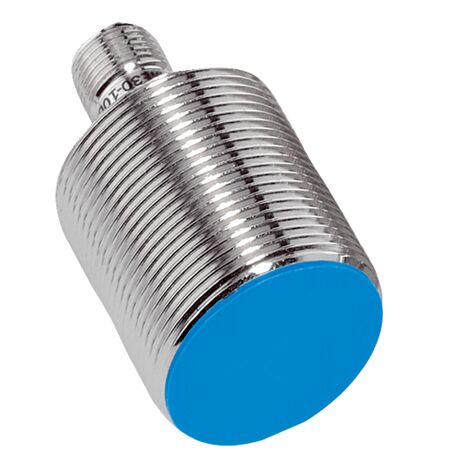

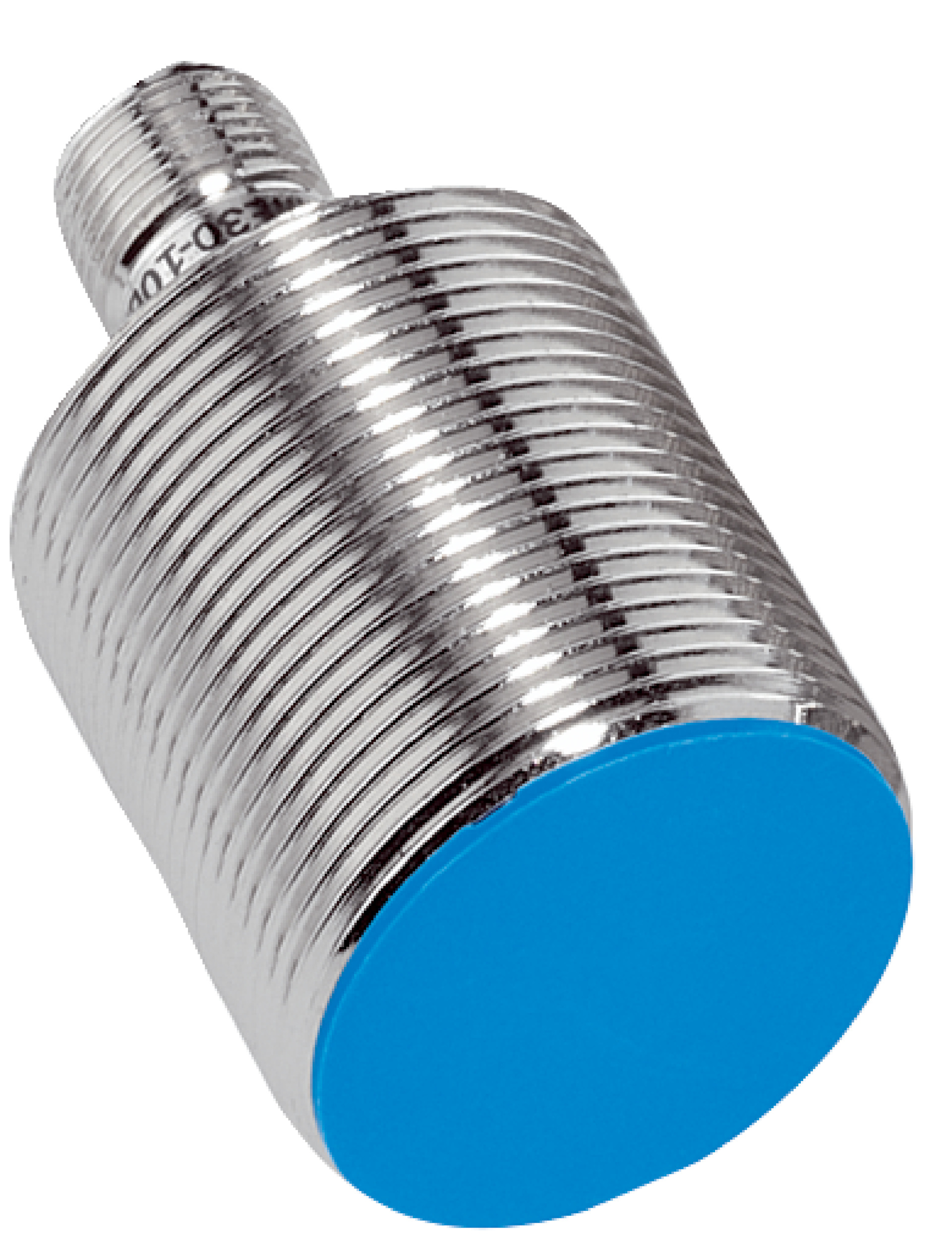

Inductive Proximity Sensor M30 | Short-Body Brass Housing | IP67 Rated | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a robust short-body brass housing and an IP67 enclosure rating, it ensures durability in harsh environments. Featuring a sensing range of 15 mm and a switching frequency of up to 500 Hz, this sensor is perfect for machine safety and control systems, providing accurate position sensing and metal detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | Short-Body Brass Housing | IP67 Rated | 15mm Sensing Range | by SICK
Brand: SICK
SKU: 1041041
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, NPN Proximity Switch, Flush Mount Proximity Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M30 x 1.5
- Diameter: 30 mm
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Ambient operating temperature: –25 °C to +75 °C
- Housing length: 52 mm
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with IP67 enclosure rating
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 500 Hz with NPN normally closed output
- Robust brass nickel-plated housing and plastic PA 66 sensing face
- Wide supply voltage range from 10 V DC to 30 V DC
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Metal detection in conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-15BNOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
