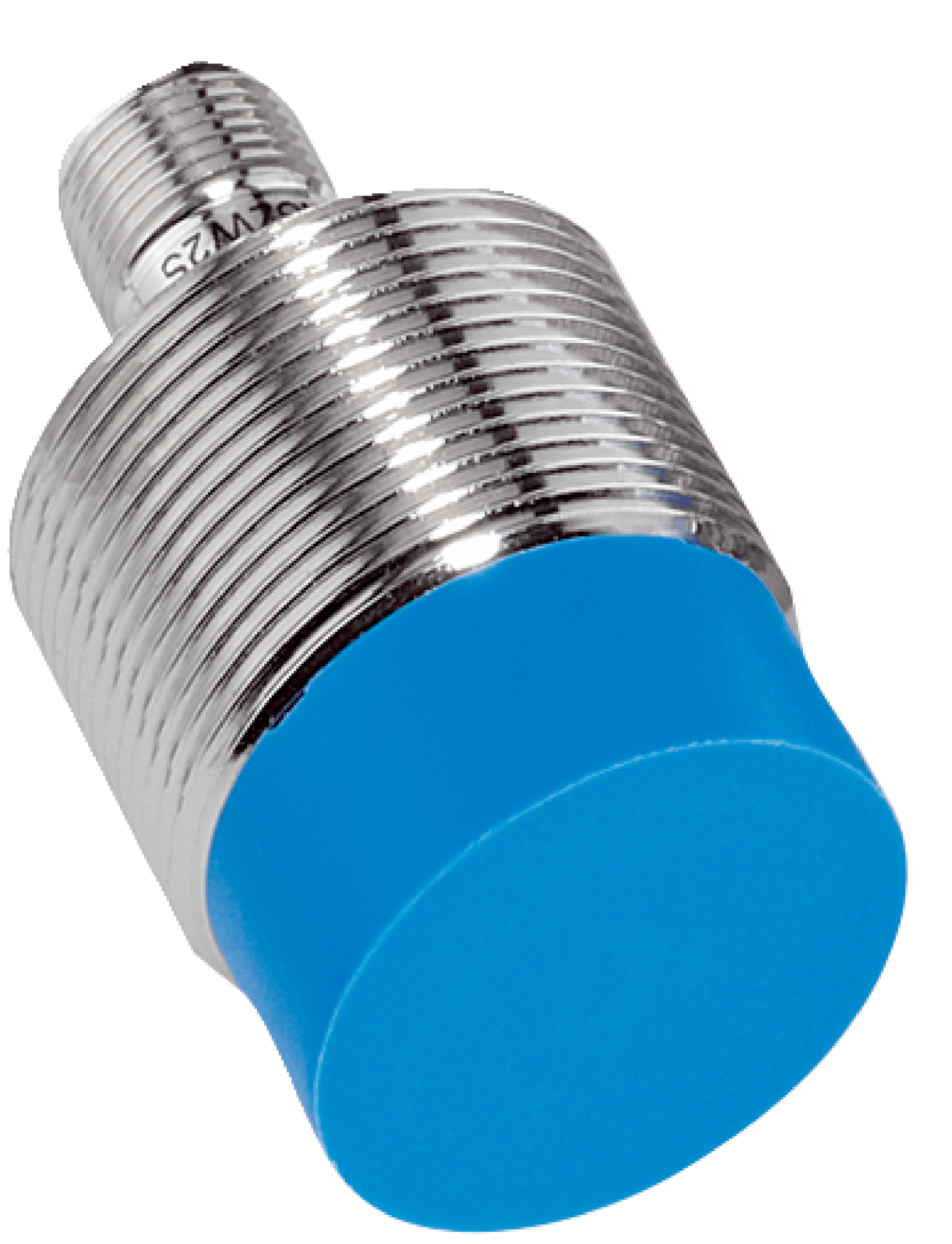

Inductive Proximity Sensor M30 | Short-Body Design | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 15 mm, it features an IP67 rated enclosure for dust and water protection. Ideal for non-contact switching in machinery and metal detection in conveyor systems, this sensor ensures high performance with a switching frequency of up to 500 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | Short-Body Design | IP67 Rated | NPN Output | by SICK
Brand: SICK
SKU: 1041025
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, NPN Proximity Switch, Short Body Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: NPN, normally closed
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 22 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 500 Hz
- NPN normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Metal detection in conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

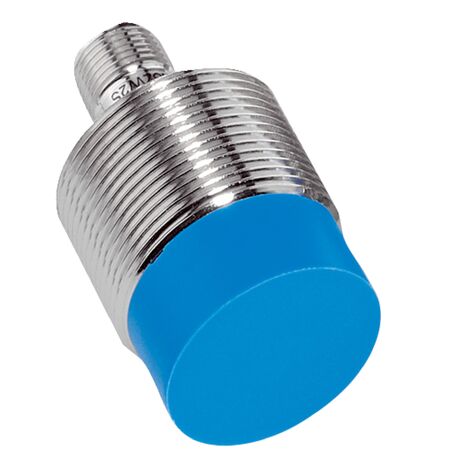

The SICK IME30-15NNOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
