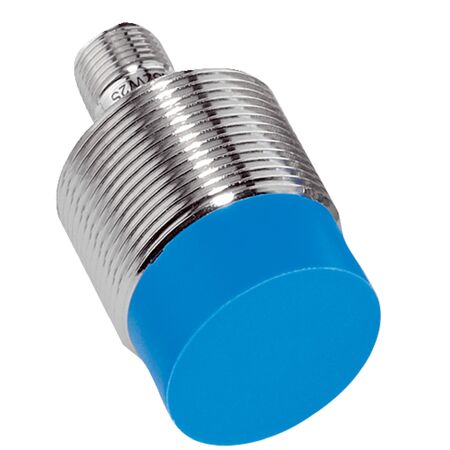

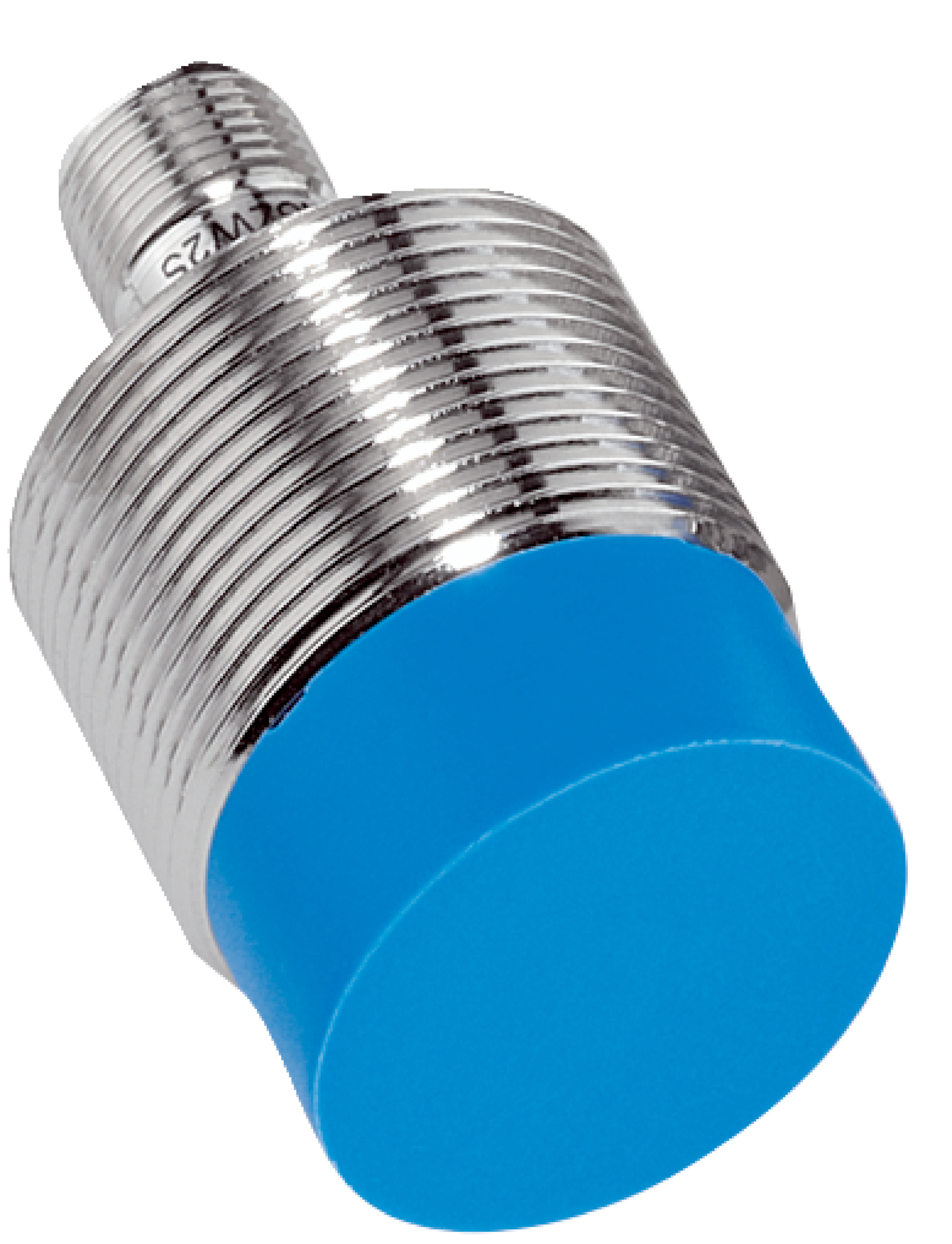

Inductive Proximity Sensor M30 | Short-body Design | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a short-body design and an IP67 rated enclosure for dust and water protection. With a sensing range of 38 mm and a robust NPN normally open output, this sensor is perfect for manufacturing process control and position sensing in machinery, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 90 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 22 mm
- Tightening torque max: ≤ 70 Nm
- Connection type: Male connector M12, 4-pin
- Switching output: NPN normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Sensing range of 38 mm with safe sensing range of 30.78 mm
- Non-flush installation type
- Switching frequency of 100 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and proper electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Non-flush mounting environments requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing with nickel plating extends product life reducing waste
- Energy-efficient sensor operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-38NNSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
