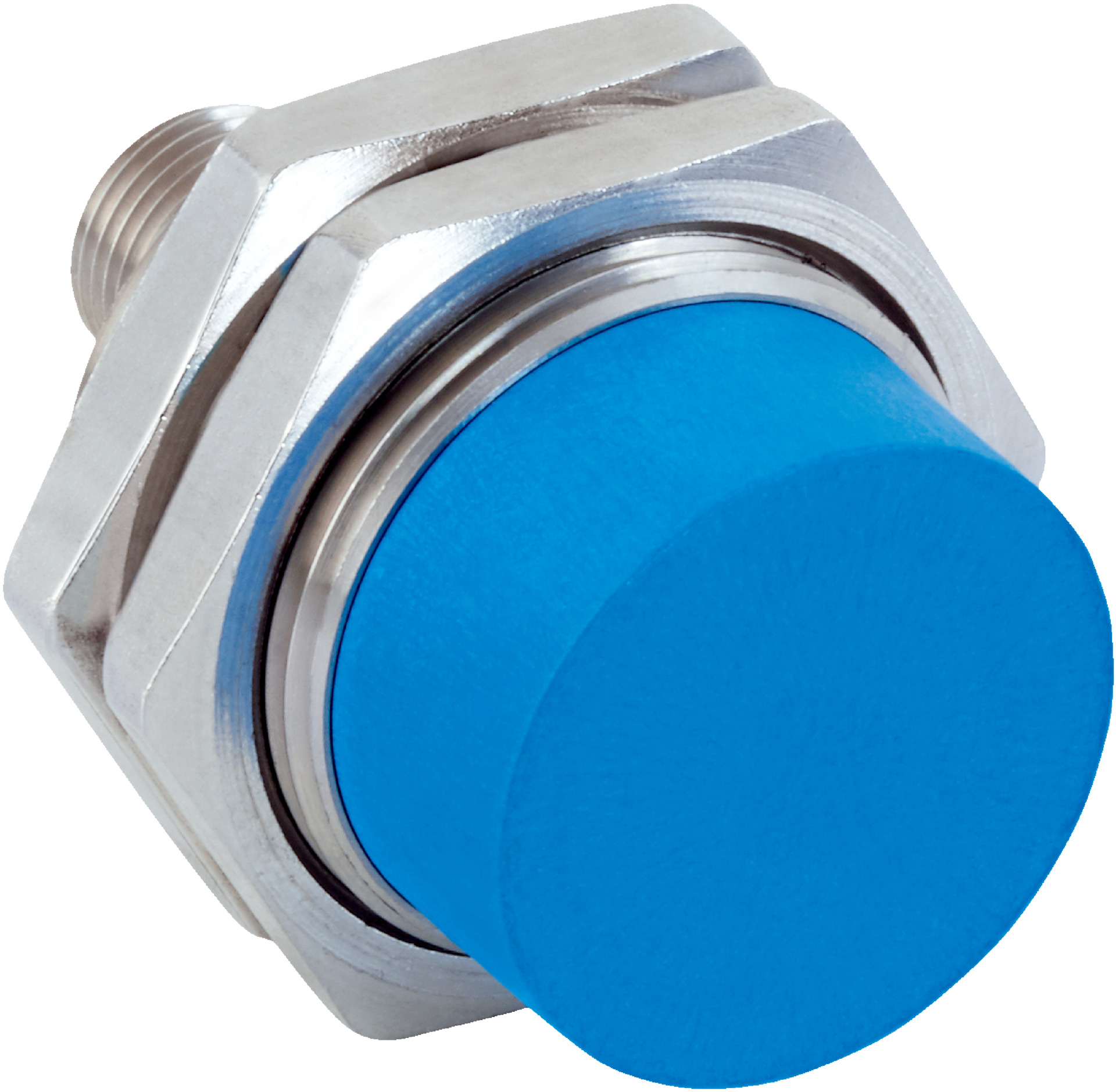

Inductive Proximity Sensor M30 | Short-Body Design | PNP Output | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a sensing range of 20 mm and a high switching frequency of 500 Hz, this sensor is perfect for harsh environments, including those with coolants and lubricants. Built to withstand extreme temperatures from -40 °C to +85 °C, it features a robust nickel-plated brass housing and is IP67/IP68/IP69K rated for superior protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open (NO)
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Operating temperature: -40 °C to +85 °C
- Shock resistance: 100 g, 2 ms sinusoidal shocks
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Short-circuit and power-up pulse protection included
- Voltage drop: ≤ 2 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- MTTFD: 1,820 years
- Mission time: 20 years
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- High switching frequency of 500 Hz with PNP normally open output
- IP67, IP68, and IP69K rated for protection against dust and water
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Operating temperature range from -40 °C to +85 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Mobile machinery sensing in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Resistant to harsh environments minimizing downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

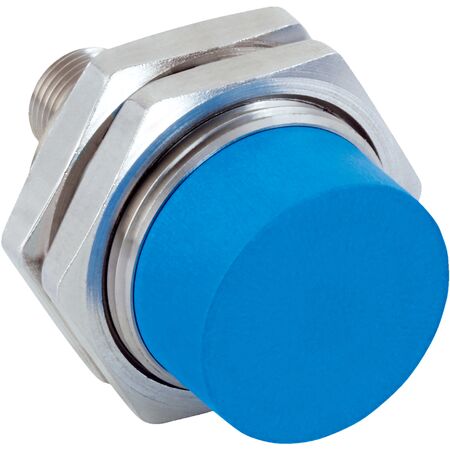

The SICK IMG30-20NPSZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
