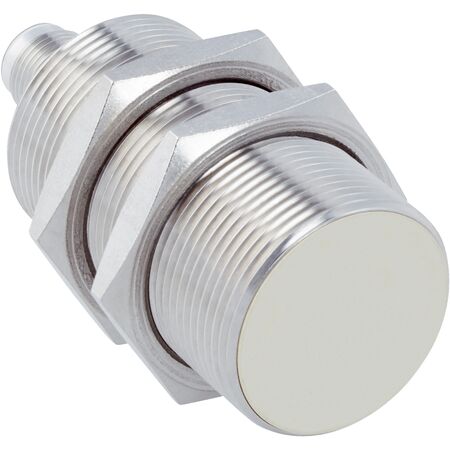

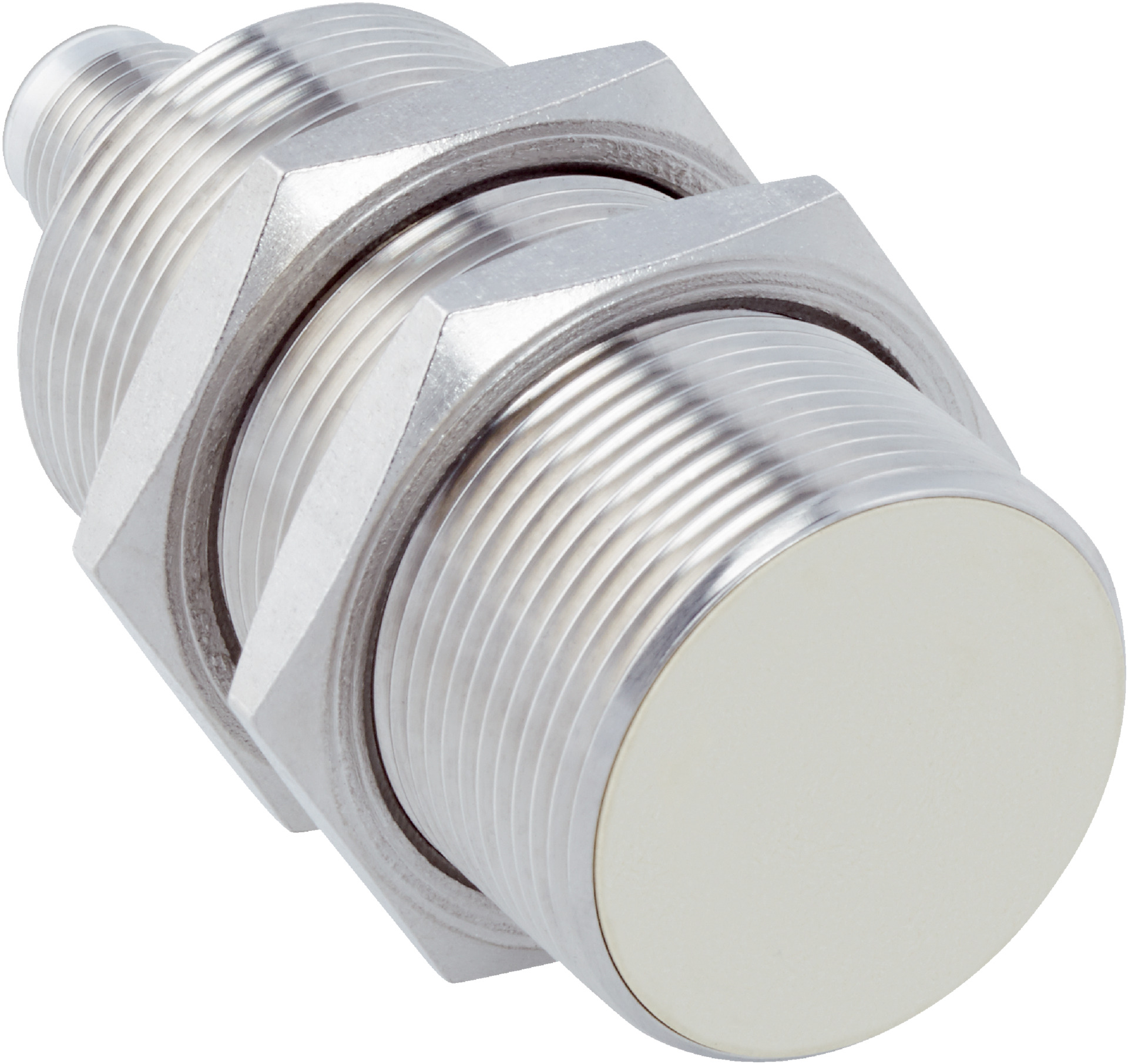

Inductive Proximity Sensor M30 | Stainless Steel Housing | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation and hygienic zones. With a robust stainless steel housing and a sensing range of 15 mm, it operates at a high switching frequency of 500 Hz. This sensor is IP68 and IP69K rated, ensuring protection against dust and high-pressure washdown, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Stainless steel V4A, DIN 1.4404 / AISI 316L
- Thread size: M30 x 1.5
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing length: 70 mm
- Thread length: 52 mm
- Tightening torque max: 100 Nm
- Protection class: III
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- NPN normally open switching output with DC 3-wire electrical wiring
- High switching frequency of 500 Hz
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Stainless steel V4A housing and plastic sensing face for durability
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper flush installation and connector wiring.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring reliable object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Resistant to cleaning agents reducing need for replacement due to corrosion
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMF30-15BNSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
